Hikvision OPS Computer Module, Intel Core i5-13420H – DS-D5AC13T5-8S2

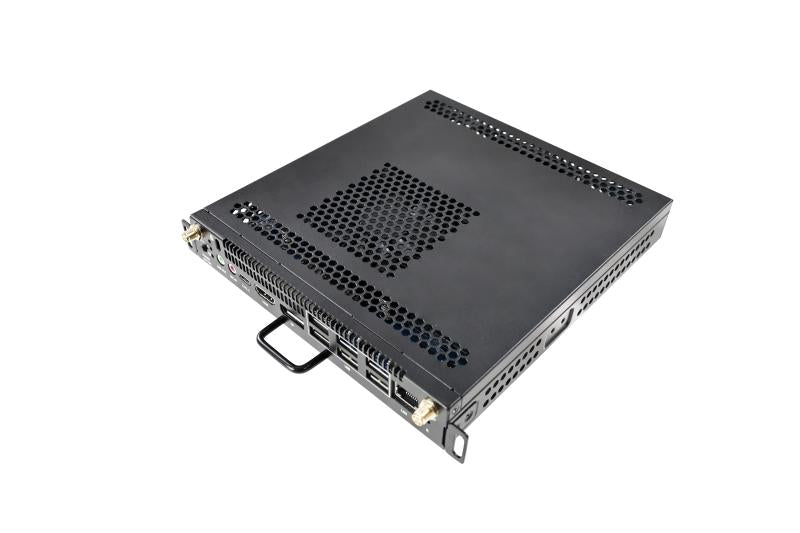

The Hikvision DS-D5AC13T5-8S2 is an OPS computer module for Hikvision interactive flat panels. It runs Windows 11 Enterprise on an Intel Core i5-13420H processor with 8 GB of memory, 256 GB of storage and TPM 2.0 support. Procure.ae supplies the module across the UAE, with delivery and quotes.

The module provides Windows 11 Enterprise on an Intel Core i5-13420H processor with 8 cores, a 2.3 GHz base clock and a 4.7 GHz turbo clock. It includes 8 GB of memory and 256 GB of storage, and the manufacturer lists TPM 2.0 support. Graphics are Intel UHD Graphics for 13th Gen Intel Processors, which the manufacturer states supports 4K resolution. Ports include HDMI 1.4, DisplayPort 1.2, four USB 3.0 ports, two USB 2.0 ports and one USB-C port.

The module has Wi-Fi 6, Bluetooth 5.2 and a 10/100/1000 Mbps RJ45 port, and it draws 12 to 19 V DC with a maximum consumption of 90 W. The operating range is 0 to 40 °C and 10% to 90% RH, with storage at -20 to 60 °C. Buyers who need more memory and storage can compare the DS-D5AC13G7-16S5 and DS-D5AC13T7-16S5, which both list 16 GB and 512 GB.
