HikvisionMeeting Room SolutionsSKU DS-D60E-B

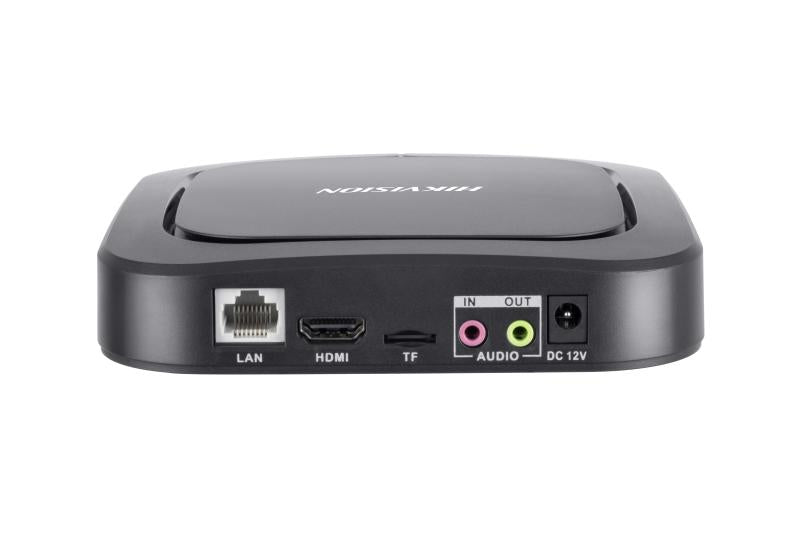

Hikvision Digital Signage Box – DS-D60E-B
The Hikvision DS-D60E-B is a digital signage box that plays static and dynamic content on a connected screen. It runs Android 8.1, outputs up to 4K at 60 Hz over HDMI, and can be managed remotely across one or more displays. Procure.ae supplies the Hikvision DS-D60E-B across the UAE.
The box has a quad-core Cortex-A17 processor at 1.6 GHz, with 2 GB of memory and 16 GB of eMMC storage. It supports 3840 x 2160, 1920 x 1080 and 1280 x 720 at 30, 50 and 60 Hz, and it has one HDMI output. Content can be static or dynamic, including applications, pictures, audio, video, PDF files, streaming media, web pages, live video and third-party data. Connectivity includes one LAN port, built-in Wi-Fi, Bluetooth 4.0 and two USB 2.0 ports.
The box is managed centrally across one or more screens. Management features include timed startup and shutdown, timed brightness and volume, and screenshot preview. A five-level organization structure covers materials, programs, terminals and users, and custom users can be given permissions by level. Content is checked on three levels before release, and stored and transmitted data is encrypted. The box measures 145 x 145 x 31.89 mm and weighs 0.6 kg net.
Resolution
3840 x 2160, 1920 x 1080, 1280 x 72...
Type
Digital Signage Media Player
Weight
0.6 kg (net)
- Mixed content
- Program scheduling
- Central management
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Mixed content
Plays applications, pictures, audio, video, PDF files, streaming media, web pages and live video.
02
Program scheduling
Free scheduling of multiple materials, with day, week and custom display modes.
03
Central management
Remote control of one or more screens, with timed startup, shutdown, brightness and volume.
04
Five-level organization
Structure for managing materials, programs, terminals and users.
05
Multilevel permissions
Custom users, with permissions allocated by user level.
06
Release safeguards
Three-level checks of materials, programs and schedules before release.
07
Encrypted data
Storage and transmission are encrypted to prevent data tampering.
08
433 MHz remote
Remote control works from any direction.
Specifications
22 specificationsGeneral
Key FeaturesAndroid 8.1, 4K HDMI output, program scheduling, central remote management, five-level organization, multilevel permissions, encrypted data, 433 MHz remote
ModelDS-D60E-B
TypeDigital Signage Media Player
What's in the BoxPower adaptor, remote control (433 MHz)
Display
Resolution3840 x 2160, 1920 x 1080, 1280 x 720 (30/50/60 Hz)
Performance
Operating SystemAndroid 8.1.0
ProcessorQuad-core Cortex-A17, 1.6 GHz
RAM2 GB
Storage16 GB eMMC
Audio
Audio In1 × audio in
Audio Out1 × audio out
Connectivity
BluetoothBluetooth 4.0
Ethernet1 × LAN
HDMI Outputs1 × HDMI out
USB PortsUSB 2.0 × 2
Wi-FiBuilt-in Wi-Fi
Power
Power Source12 VAC, 2 A
Standby Power1 W (max)
Physical
Dimensions145 x 145 x 31.89 mm (W x H x D)
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Weight0.6 kg (net)
Downloads
Manufacturer documents for the Hikvision Digital Signage Box – DS-D60E-B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Hikvision DS-D60E-B?
It is a digital signage box that plays content on a connected screen. It runs Android 8.1, has an HDMI output and can be managed remotely across one or more displays.
Does the DS-D60E-B support 4K?
Yes. The box supports 3840 x 2160 at 30, 50 and 60 Hz, as well as 1920 x 1080 and 1280 x 720. Its single HDMI output carries the video signal to the display.
Can the DS-D60E-B be managed remotely?
Yes. The manufacturer lists remote control of one or more screens, timed startup and shutdown, timed brightness and volume, and screenshot preview. A five-level organization structure manages materials, programs, terminals and users.
Does the box have Wi-Fi and Ethernet?
Yes. It has built-in Wi-Fi and one LAN port for wired networking. It also has Bluetooth 4.0, two USB 2.0 ports, one audio input and one audio output, so peripherals and audio equipment can be connected.
How is the DS-D60E-B powered and mounted?
It is powered by a 12 VAC, 2 A adapter and draws up to 1 W on standby. It measures 145 x 145 x 31.89 mm and weighs 0.6 kg net. The manufacturer's specifications do not state a mounting option.
Can I buy the Hikvision DS-D60E-B in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
