Hikvision 55-80-inch Interactive Display Mobile Bracket – DS-D5ABL

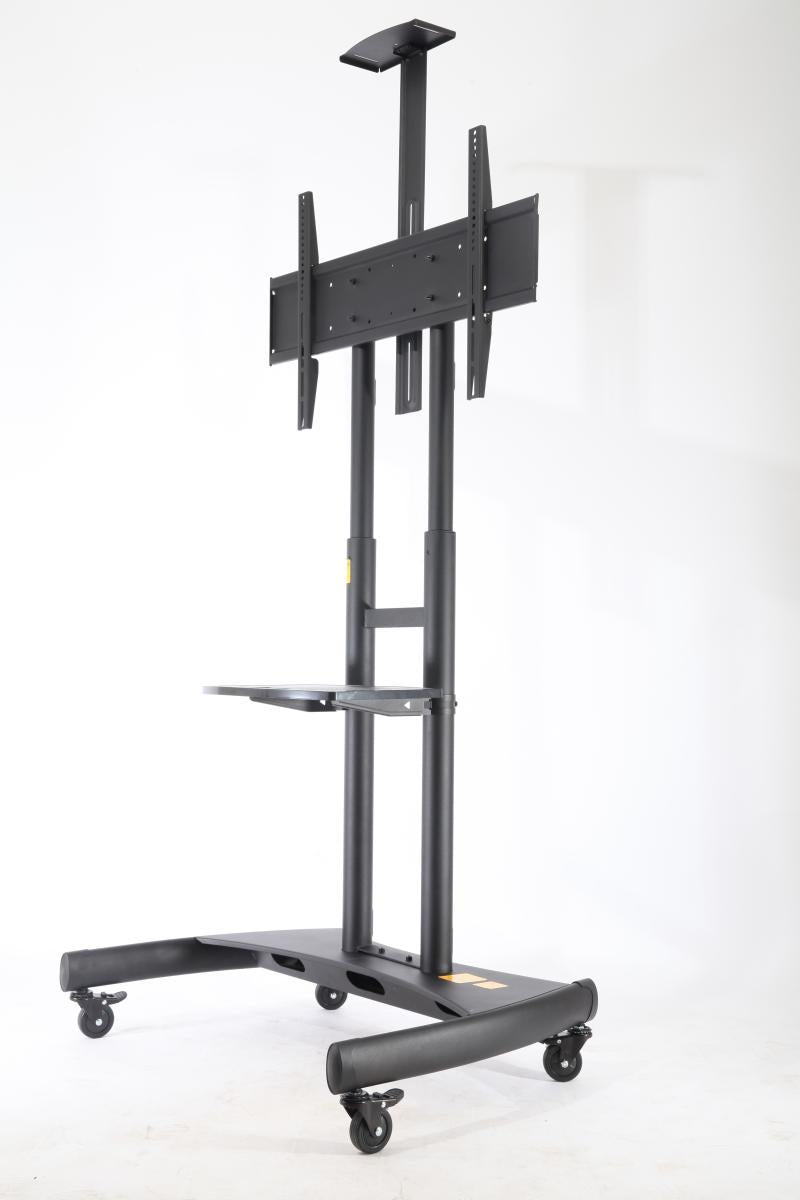

The Hikvision DS-D5ABL is a black steel mobile bracket for interactive displays sized 55 to 80 inch. It has an adjustable height from 1350 mm to 1650 mm and a load capacity of 90.9 kg (200 lb). Procure.ae supplies the DS-D5ABL across the UAE, with delivery, installation and quotes.

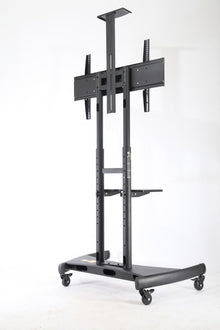

The DS-D5ABL is a mobile bracket made from SPCC cold-rolled steel sheet in black. The manufacturer lists a suitable display size of 55 to 80 inch and an adjustable height between 1350 mm and 1650 mm. The load-bearing rating is 200 lb (90.9 kg). The bracket measures 968.2 mm wide, 559.4 mm high and 60.9 mm deep. Several hole-pitch patterns are listed, from 200 x 200 mm up to 800 x 500 mm.
The manufacturer describes the DS-D5ABL as suitable for all interactive displays in the 55 to 80-inch range. Ten hole-pitch patterns are listed, from 200 x 200 mm to 800 x 500 mm. Confirm the panel hole pitch against that list before ordering, and ask Procure.ae to check the fit for a specific model.
Type
Interactive Display Mobile Bracket
- Adjustable height
- Load capacity
- Wide size range
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Adjustable height
ranges from 1350 mm to 1650 mm.
02
Load capacity
rated at 200 lb (90.9 kg).
03
Wide size range
suitable for 55 to 80-inch displays.
04
Steel construction
SPCC cold-rolled steel sheet in black.
05
Hole-pitch options
ten listed patterns from 200 x 200 mm to 800 x 500 mm.
06
Product size
968.2 mm wide, 559.4 mm high and 60.9 mm deep.
Specifications
12 specificationsGeneral
Key FeaturesMobile bracket, Adjustable height, 200 lb load rating
ModelDS-D5ABL
TypeInteractive Display Mobile Bracket
Display
Supported Screen Sizes55 to 80 inch
Physical
ColorBlack
Dimensions968.2 x 559.4 x 60.9 mm
Height Range1350 to 1650 mm
Load Capacity90.9 kg (200 lb)
MaterialSPCC cold-rolled steel sheet
MountingMobile bracket
Shipping Dimensions1070 x 696 x 159 mm
VESA Mount200 x 200 to 800 x 500 mm (10 patterns)
Downloads
Manufacturer documents for the Hikvision 55-80-inch Interactive Display Mobile Bracket – DS-D5ABL — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What display sizes does the DS-D5ABL bracket support?
The manufacturer lists the DS-D5ABL for displays from 55 to 80 inch. Its height is adjustable from 1350 mm to 1650 mm. Confirm the hole pitch of your panel against the listed patterns before ordering.
How much weight can the DS-D5ABL carry?
The load-bearing rating is 200 lb, which is 90.9 kg, according to the manufacturer specifications. Check the full weight of your display, including any mounted accessories, against that rating before you order.
Does the DS-D5ABL need a specific hole pitch?
Yes, the panel hole pitch should match one of the listed patterns. The manufacturer lists ten patterns, from 200 x 200 mm to 800 x 500 mm, so check the panel mounting holes before ordering.
Can I buy the DS-D5ABL in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
