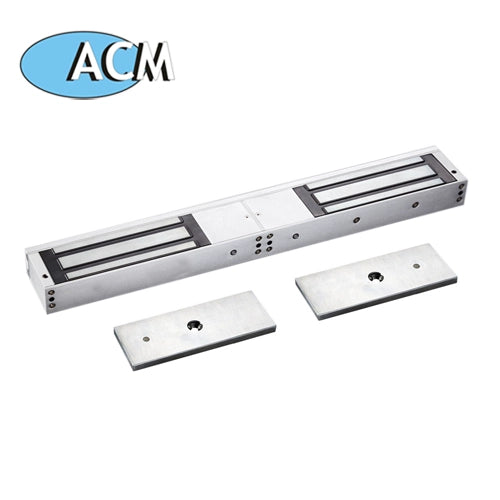

eZon 280KG Double-Door Magnetic Lock (ACM-Y280DS)
- SKU: EZ-ACC-HGBI-Y280D
Actual Stock & Price Can Be Confirmed After Placing the Order.
The eZon 280KG Double-Door Magnetic Lock, model ACM-Y280DS, is an electromagnetic lock that Procure.ae supplies across the UAE for double-door access control installations.This electromagnetic lock delivers 280kg (600lbs) of holding force on each of two doors, giving it dual-lock security for double-leaf entrances, and... See More
The eZon 280KG Double-Door Magnetic Lock, model ACM-Y280DS, is an electromagnetic lock that Procure.ae supplies across the UAE for double-door access control installations.
This electromagnetic lock delivers 280kg (600lbs) of holding force on each of two doors, giving it dual-lock security for double-leaf entrances, and it runs on dual 12V/24V DC input so it fits most standard access control power supplies. An LED indicator shows green when locked and red when unlocked, a feedback signal confirms lock status to the control panel, and a built-in timer delay lets installers set how long the door stays released after access is granted.
It is built for wood, glass, metal and fire doors, making it suitable for offices, hotels, retail units and public buildings across the UAE and GCC that need a reliable fail-safe lock on double doors as part of a wider access control system. Procure.ae supplies the lock together with compatible access control boards, brackets and readers, and can arrange installation across the UAE.
Key Features
- 280kg holding force per door: Dual-lock security rated 280kg (600lbs) on each of two doors.
- Dual 12V/24V DC operation: Fits most standard access control power supplies.
- LED lock status indicator: Green when locked, red when unlocked.
- Feedback signal output: Reports lock status back to the access control panel.
- Timer delay: Sets how long the door stays released after access is granted.
- Fits wood, glass, metal and fire doors: Suited to most standard door types.
Specifications
| Holding Force | 280kg (600lbs) per door, double-door lock |
|---|---|
| Voltage | Dual 12V/24V DC |
| Current Draw | 12V/500mA or 24V/250mA (per lock) |
| Indicator | LED status (green locked, red unlocked) |
| Door Types | Wood, glass, metal, fire doors |
| Additional Features | Feedback signal, timer delay |
Ideal for: Offices, hotels and public buildings across the UAE that need a fail-safe electromagnetic lock rated for double-leaf doors.
General
| Name | eZon 280KG Double-Door Magnetic Lock (ACM-Y280DS) |
| Model | EZ-ACC-HGBI-Y280D |
| Type | Electromagnetic double-door lock, 280 kg holding force per door |
Power
| Power Source | Dual 12 V/24 V DC |
No datasheet available.
Frequently Asked Questions
How much holding force does this lock provide?
It provides 280kg (600lbs) of holding force on each of its two doors, since this is a double-door magnetic lock.
What voltage does it run on?
It supports dual 12V/24V DC operation, drawing about 500mA at 12V or 250mA at 24V per lock, so it works with most standard access control power supplies.
What door materials can it be fitted to?
It is rated for wood, glass, metal and fire doors, covering most standard commercial door types.
Does it need a separate bracket for inward-opening doors?
For inward-opening doors, pair it with a compatible Z-bracket, such as eZon's Z-bracket for 280KG EM locks, model ACM-Y280ZL.
What warranty does this lock carry?
It carries the manufacturer's warranty; contact Procure.ae for the exact terms.
