ELODigital SignageSKU 24-inch I-Series 3 with Intel

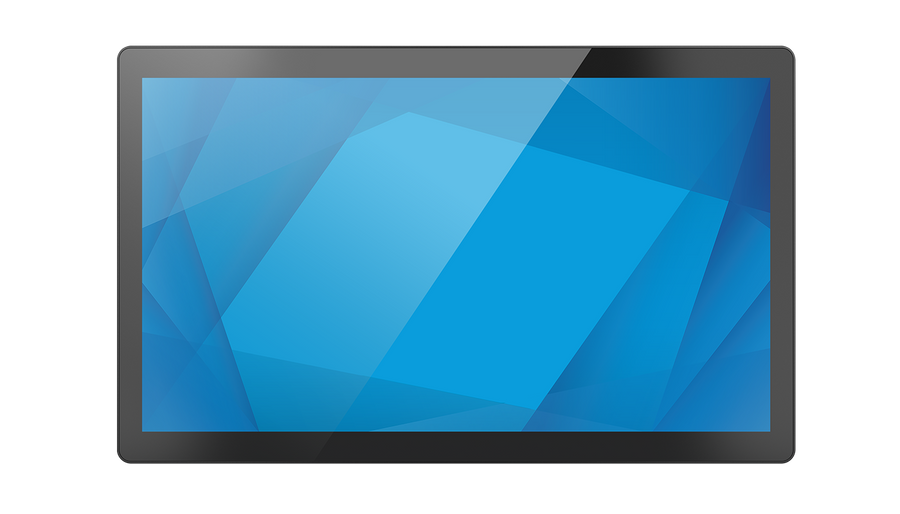

Elo I-Series 3 24-inch Touch Computer with Intel – E156961
The Elo I-Series 3 24-inch is a touch computer built into a 23.8-inch Full HD PCAP touchscreen, with Intel Celeron, Core i3 or Core i5 processors. It suits point-of-sale, self-service and automation controls, and mounts on its built-in 100 mm VESA plate or a stand. Procure.ae supplies the Elo I-Series 3 in the UAE.
The I-Series 3 has a 10-point PCAP touchscreen on a 1920 x 1080 display at 60 Hz, with 250 nits typical brightness and a 1,000:1 contrast ratio. Processor options are Intel Celeron 7305L, Intel Core i3-1215UL and Intel Core i5-1245UL with vPro. Memory is 8 GB DDR5 on Celeron and i3 models and 16 GB on i5 models, expandable to 64 GB. Storage is a 128 GB M.2 PCIe NVMe SSD, and TPM 2.0 is included.
The I/O panel includes Gigabit LAN, four USB 3.0 ports, four Micro USB 2.0 ports for Elo Edge Connect peripherals, a full-function USB-C port with up to 27 W power and DisplayPort, a 3.5 mm audio jack and an RJ50 powered serial port. Peripherals such as magnetic stripe readers, barcode scanners and customer displays attach to the edge of the touchscreen. Operating system choices include Windows IoT Enterprise LTSC and ChromeOS Flex, or no OS.
Screen Size
23.8 inch
Resolution
1920 x 1080 (Full HD)
Brightness
250 nits
Touch Technology
PCAP
- Full HD PCAP touch
- Intel processors
- Expandable memory
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD PCAP touch
1920 x 1080 display with 10-point PCAP touch.
02
Intel processors
Celeron, Core i3 or Core i5 options, with Intel vPro on the i5 model.
03
Expandable memory
8 GB or 16 GB DDR5 SO-DIMM, expandable to 64 GB across two slots.
04
128 GB NVMe storage
128 GB M.2 PCIe NVMe SSD with TPM 2.0 included.
05
Edge peripheral ports
four Micro USB 2.0 ports for Elo Edge Connect peripherals.
06
USB-C with power
full-function USB-C port supporting up to 27 W, USB 3.0 and DisplayPort.
07
Wireless and Bluetooth
802.11 a/b/g/n/ac/ax Wi-Fi on 2.4, 5 and 6 GHz, with Bluetooth 5.3.
08
Built-in VESA mount
100 mm VESA mount and Kensington lock support.
Specifications
35 specificationsGeneral
Key FeaturesIntel Celeron, Core i3 or Core i5 options, 10-point PCAP touch, Edge Connect peripheral ports, USB-C 27 W, TPM 2.0, Kensington lock, 100 mm VESA
Model24-inch I-Series 3 with Intel
TypeInteractive Touch Computer
What's in the BoxI-Series unit, 180 W power adapter, North America and European power cords, RJ-50 to DB-9 cable, quick installation guide, cable tie, VESA mounting screw
Display
Aspect Ratio16:9
Brightness250 nits
Contrast Ratio1,000:1
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time16 ms
Screen Size23.8 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (horizontal and vertical)
Performance
GraphicsIntel UHD Graphics; Intel Iris Xe Graphics on i5 models
Operating SystemNo OS, Windows 10 or 11 IoT Enterprise LTSC, or ChromeOS Flex
ProcessorIntel Celeron 7305L; Intel Core i3-1215UL; Intel Core i5-1245UL with vPro
RAM8 GB DDR5 (Celeron and i3), 16 GB DDR5 (i5), expandable to 64 GB
Storage128 GB M.2 PCIe NVMe SSD
Audio
Speaker Output2 × 2 W
Connectivity
BluetoothBluetooth 5.3
Input Voltage100–240 V AC, 50/60 Hz
PortsRJ45 Gigabit LAN × 1, USB 3.0 × 4, Micro USB 2.0 × 4 (Elo Edge Connect), RJ50 serial × 1, USB-C × 1, 3.5 mm audio × 1
USB-C PortsFull-function, up to 27 W, USB 3.0, DisplayPort
Wi-Fi802.11a/b/g/n/ac/ax, 2.4 GHz, 5 GHz and 6 GHz
Power
Power Consumption40 W (Celeron), 52 W (i3), 56 W (i5), typical
Physical
ColorBlack
Dimensions571.2 x 352.0 x 39.0 mm
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount100 x 100 mm
Weight7.1 kg
Compliance
IP RatingIP54
Security FeaturesTPM 2.0, Kensington lock
Warranty3 years
Downloads
Manufacturer documents for the Elo I-Series 3 24-inch Touch Computer with Intel – E156961 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo I-Series 3 24-inch with Intel?
It is a touch computer with a 23.8-inch Full HD PCAP touchscreen and Intel Celeron, Core i3 or Core i5 processors. Elo describes it for signage, point-of-sale, self-service and automation controls. The manufacturer lists 12 model codes for this model, starting with E156961.
Does it support Windows or ChromeOS?
Yes, depending on the configuration. The manufacturer lists Windows 10 IoT Enterprise LTSC 64-bit, Windows 11 IoT Enterprise LTSC 64-bit and ChromeOS Flex, as well as a configuration with no operating system.
How much memory and storage does it have?
Celeron and i3 models have 8 GB DDR5 and i5 models have 16 GB DDR5, both expandable to 64 GB across two SO-DIMM slots. Storage is a 128 GB M.2 PCIe NVMe SSD. Changing memory or the SSD requires opening the back cover.
Can I mount it on a wall or a stand?
Yes. The unit has a built-in 100 mm VESA mount. The manufacturer also lists wall mount kits for 75 mm or 100 mm VESA patterns, plus countertop and floor stands as accessories.
