ELODigital SignageSKU 5502L

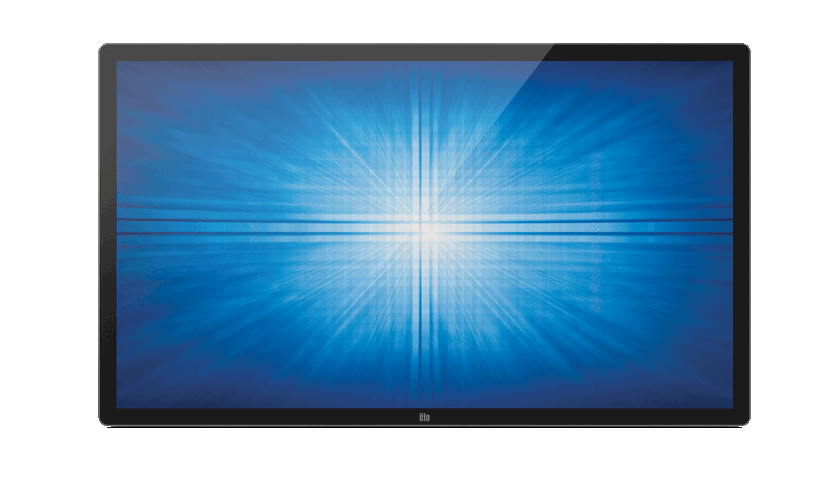

Elo 5502L 55-inch Interactive Digital Signage Display – 5502L
The Elo 5502L is a 55-inch interactive digital signage display offered with TouchPro PCAP or infrared touch, on a 1920 x 1080 LCD. It suits retail, hospitality and corporate spaces, with 450 nits brightness and a 1,100:1 contrast ratio. The manufacturer has replaced it with the 5503L. Procure.ae can confirm availability of this model in the UAE.
The 5502L comes in two touch variants: TouchPro PCAP with 12 simultaneous touches and infrared with 20. Both use a 54.6-inch LCD with 1920 x 1080 resolution at 60 Hz, 450 nits LCD brightness and a 1,100:1 contrast ratio. Typical response time is 12 ms, and the display supports a 178-degree viewing angle. The unit is rated for 24-hour operation, and four 5 W stereo speakers provide audio.
The panel offers VGA, two HDMI inputs and a DisplayPort 1.1a input, with an RJ45 port for the optional on-screen display remote and a GPIO connector. The USB type B port carries touch data to the connected computer. The rear uses a 400 x 400 mm VESA pattern, and the manufacturer rates the chassis for IK07 impact and a UL 60950 ball-drop test.
Screen Size
54.6 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Touch Technology
TouchPro PCAP (12-point) or infrare...
- TouchPro PCAP or infrared
- Full HD display
- Energy efficient
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
TouchPro PCAP or infrared
PCAP with 12 touches or infrared with 20 touches, by variant.
02
Full HD display
1920 x 1080 resolution at 60 Hz on a 54.6-inch panel.
03
Energy efficient
rated Energy Star 7.0 and EU Energy Efficiency A.
04
Continuous operation
rated for 24 hours a day in portrait or landscape mode.
05
Multiple video inputs
VGA, two HDMI and a DisplayPort 1.1a input.
06
Impact rated
IK07 impact compliance and a UL 60950 ball-drop test pass.
07
Built-in stereo speakers
4 x 5 W stereo speakers and 3.5 mm audio in and out.
08
VESA mounting
400 x 400 mm VESA 4-hole mounting interface on the rear.
Specifications
25 specificationsGeneral
Key FeaturesTouchPro PCAP or infrared touch by variant, 1920 x 1080 display, 450 nits, 1,100:1 contrast, 24-hour operation, Energy Star 7.0, IK07 impact rating, 400 x 400 mm VESA
Model5502L
TypeInteractive Digital Signage Display
What's in the BoxQuick installation guide, HDMI cable, VGA-DB9 serial Y-cable, USB cable (type A to type B), power cables (NA, EU/KR, UK), 3.5 mm audio cable
Display
Aspect Ratio16:9
Brightness450 nits
Contrast Ratio1,100:1
Panel TechnologyTFT LCD (LED)
Resolution1920 x 1080 (Full HD)
Response Time12 ms
Screen Size54.6 inch
Touch TechnologyTouchPro PCAP (12-point) or infrared (20-point), by variant
Viewing Angle178° (horizontal and vertical)
Audio
Speaker Output4 × 5 W stereo
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA × 1, HDMI × 2, DisplayPort 1.1a × 1, USB type B (touch) × 1, GPIO, audio line in, headphone out, RJ45 (optional OSD remote)
Touch USB PortsUSB type B × 1
Power
Power Consumption87.8 W on (100 V, 60 Hz), monitor only
Physical
ColorBlack
Duty Cycle24 hours per day
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C (portrait and landscape)
VESA Mount400 x 400 mm
Compliance
CertificationsUL, FCC Class A, cUL, IC, CB, CE Class A, CCC, EAC, VCCI, Energy Star 7.0, IK07 impact compliant
Warranty3 years
Downloads
Manufacturer documents for the Elo 5502L 55-inch Interactive Digital Signage Display – 5502L — datasheets, manuals, drawings and certificates.
- Datasheet – 5502L
- Datasheet – IDS 02-Series
- User manual – IDS 02-Series
- User manual – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Quick start guide – IDS 02-Series
- Quick start guide – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Installation guide – IDS 02-Series
- Drawing – IDS 02-Series
- Drawing – Elo IDS 02-Series / IDS 03-Series
- Certificate / compliance – IDS 02-Series
- Energy label – 5502L
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo 5502L?
It is a 55-inch interactive digital signage display with a 1920 x 1080 LCD, available with TouchPro PCAP or infrared touch. The manufacturer describes it for retail, hospitality and corporate environments. The 5502L has been replaced by the 5503L.
Which touch technology does it use?
It depends on the variant. The PCAP version supports 12 simultaneous touches and the infrared version supports 20. The manufacturer lists model codes E218562, E218847 and E399726 for this product, so confirm the code that matches the touch type you need.
Can it be wall-mounted?
Yes. The rear has a 400 x 400 mm VESA 4-hole mounting interface. The manufacturer rates the unit for portrait and landscape use between 0 and 40 °C, and for tabletop use between 0 and 35 °C.
Does it include a serial cable?
Yes. The box includes a VGA-DB9 serial Y-cable, an HDMI cable, a USB cable and a 3.5 mm audio cable, along with power cables for North America, EU/KR and UK plugs.
