ELODigital SignageSKU 5543L

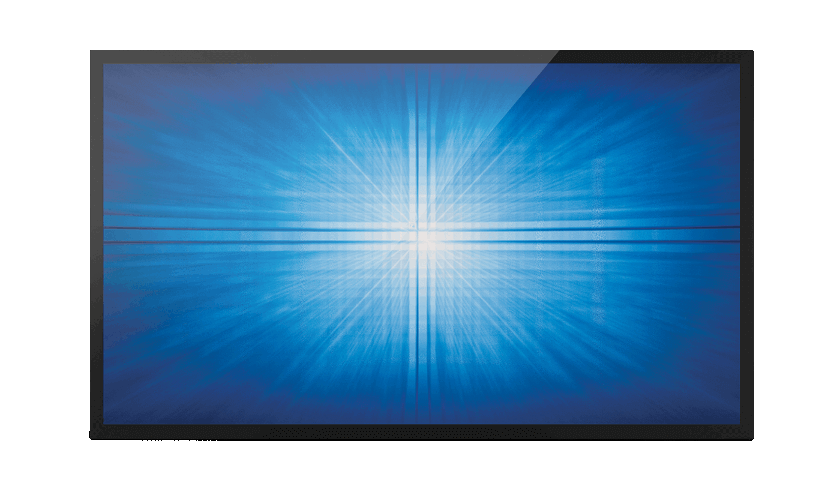

Elo 55-inch Open Frame Touchscreen Display – 5543L
The Elo 5543L is a 54.6-inch open frame touchscreen display for self-service kiosks and built-in commercial installations. It has a 1920 x 1080 LCD panel, 12-point PCAP touch and a 67 mm deep body, and it is rated for 24 hours a day of operation. Procure.ae supplies the Elo 5543L across the UAE.
The 5543L pairs a TouchPro projected capacitive (PCAP) touchscreen with a 1920 x 1080 LCD panel. The LCD is rated at 450 nits with a 1,100:1 contrast ratio and a 12 ms response time, and the touch layer is rated at 387 nits. The LED backlight supports a 178-degree viewing angle horizontally and vertically. The glass meets the UL 60950 ball-drop requirement and IK07 impact immunity, and the unit is Energy Star 7.0 certified.
The 5543L suits kiosks where space is limited, because the 67 mm body keeps the enclosure thin. The rear has a 400 x 400 mm VESA mounting interface, and side mounting brackets are included. A flush mount kit gives a seamless front surface. Touch through glass is available on request, which allows the front to be sealed to an IP65 rating. The manufacturer lists this model as discontinued and replaced by the 5503L.
Screen Size
54.6 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Touch Technology
PCAP (projected capacitive)
- Full HD LCD panel
- 12-point PCAP touch
- Thin kiosk profile
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD LCD panel
54.6-inch active matrix LCD at 1920 x 1080 with a 16:9 aspect ratio.
02
12-point PCAP touch
TouchPro projected capacitive touchscreen sealed to the bezel and LCD.
03
Thin kiosk profile
67 mm (2.6-inch) depth for kiosks with limited space.
04
Impact resistant glass
Meets the UL 60950 ball-drop requirement and IK07 impact immunity.
05
Continuous operation
Rated for 24 hours a day, with a 0 to 40 °C operating range.
06
VESA rear mounting
400 x 400 mm 4-hole interface on the rear, with side brackets included.
07
Energy Star 7.0
LED backlight designed for lower power use, at 82.61 W typical when on.
08
Flush front mount
Flush mount kit included for a seamless front kiosk surface.
Specifications
28 specificationsGeneral
Key Features12-point PCAP touch, 54.6-inch Full HD LCD, IK07 impact glass, 24/7 operation, flush front kiosk mount, Energy Star 7.0
Model5543L
TypeOpen Frame Touchscreen Display
What's in the BoxQIG, OSD remote, HDMI cable, VGA cable, USB cable, power cable, side-mount brackets
Display
Aspect Ratio16:9
BacklightLED
Brightness450 nits
Color Depth16.7 million
Contrast Ratio1,100:1
Panel TechnologyLCD
Resolution1920 x 1080 (Full HD)
Response Time12 ms
Screen Size54.6 inch
Touch Points12-point multi-touch
Touch TechnologyPCAP (projected capacitive)
Viewing Angle178° horizontal / 178° vertical
Performance
Storage Conditions-20 to 60 °C; 10% to 90% RH
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, VGA In × 1
Power
Power Consumption82.61 W (typical, on)
Physical
Dimensions1276 x 746.8 x 67 mm (W x H x D)
Duty Cycle24 hours/day
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight29.3 kg
Compliance
CertificationsUL, CE, FCC, Energy Star 7.0, RoHS
Warranty3 years
Downloads
Manufacturer documents for the Elo 55-inch Open Frame Touchscreen Display – 5543L — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo 5543L?
The Elo 5543L is a 54.6-inch open frame touchscreen display with a 1920 x 1080 LCD panel and 12-point PCAP touch. It is designed for public self-service kiosks and built-in installations, and it is 67 mm deep.
Is the Elo 5543L built for 24/7 kiosk use?
Yes. The manufacturer rates the 5543L for 24 hours a day of operation, with an operating temperature of 0 to 40 °C and 20% to 80% operating humidity. The touchscreen glass is sealed to the bezel and the LCD to keep out dirt and dust.
Can the Elo 5543L be sealed into a kiosk front?
Yes, with touch through glass, which is available on request from the manufacturer. The manufacturer states that this can give the front side an IP65 rating. A flush mount kit is included for a seamless front surface.
How is the Elo 5543L mounted?
The unit has a 400 x 400 mm VESA 4-hole mounting interface on the rear. Side mounting brackets, 10 in total with 20 screws, are included in the box. The manufacturer's dimensional drawings give the full mounting detail.
Which video inputs does the Elo 5543L have?
The 5543L has an HDCP-capable HDMI Type A input and an analog VGA input on a DE-15 connector. It supports 1920 x 1080 at 50 or 60 Hz and runs on 100 to 240 V AC, 50/60 Hz power.
Can I buy the Elo 5543L in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
