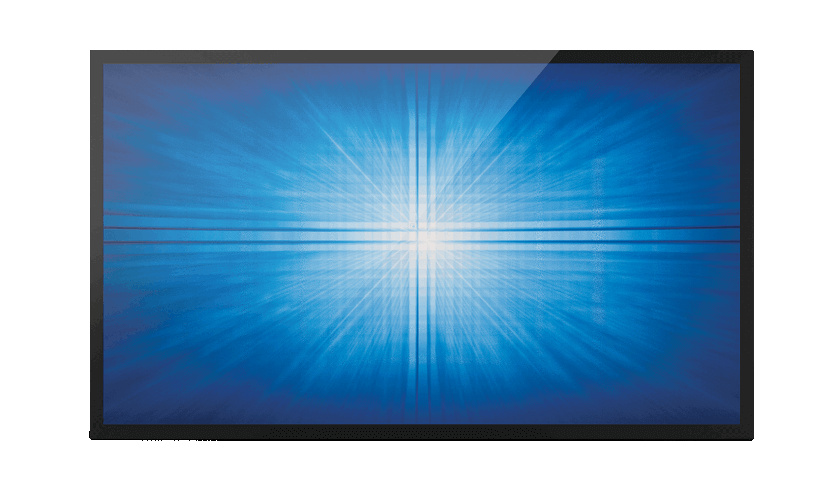

Elo 55-inch Open Frame Touchscreen Display – 5543L

The Elo 5543L is a 54.6-inch open frame touchscreen display for self-service kiosks and built-in commercial installations. It has a 1920 x 1080 LCD panel, 12-point PCAP touch and a 67 mm deep body, and it is rated for 24 hours a day of operation. Procure.ae supplies the Elo 5543L across the UAE.

The 5543L pairs a TouchPro projected capacitive (PCAP) touchscreen with a 1920 x 1080 LCD panel. The LCD is rated at 450 nits with a 1,100:1 contrast ratio and a 12 ms response time, and the touch layer is rated at 387 nits. The LED backlight supports a 178-degree viewing angle horizontally and vertically. The glass meets the UL 60950 ball-drop requirement and IK07 impact immunity, and the unit is Energy Star 7.0 certified.

The 5543L suits kiosks where space is limited, because the 67 mm body keeps the enclosure thin. The rear has a 400 x 400 mm VESA mounting interface, and side mounting brackets are included. A flush mount kit gives a seamless front surface. Touch through glass is available on request, which allows the front to be sealed to an IP65 rating. The manufacturer lists this model as discontinued and replaced by the 5503L.

Screen Size

54.6 inch

Resolution

1920 x 1080 (Full HD)

Brightness

450 nits

Touch Technology

PCAP (projected capacitive)

Type

Open Frame Touchscreen Display

Weight

29.3 kg

Key features

Full HD LCD panel

54.6-inch active matrix LCD at 1920 x 1080 with a 16:9 aspect ratio.

12-point PCAP touch

TouchPro projected capacitive touchscreen sealed to the bezel and LCD.

Thin kiosk profile

67 mm (2.6-inch) depth for kiosks with limited space.

Impact resistant glass

Meets the UL 60950 ball-drop requirement and IK07 impact immunity.

Continuous operation

Rated for 24 hours a day, with a 0 to 40 °C operating range.

VESA rear mounting

400 x 400 mm 4-hole interface on the rear, with side brackets included.

Energy Star 7.0

LED backlight designed for lower power use, at 82.61 W typical when on.

Flush front mount

Flush mount kit included for a seamless front kiosk surface.

Specifications

General
Key Features	12-point PCAP touch, 54.6-inch Full HD LCD, IK07 impact glass, 24/7 operation, flush front kiosk mount, Energy Star 7.0
Model	5543L
Type	Open Frame Touchscreen Display
What's in the Box	QIG, OSD remote, HDMI cable, VGA cable, USB cable, power cable, side-mount brackets

Display
Aspect Ratio	16:9
Backlight	LED
Brightness	450 nits
Color Depth	16.7 million
Contrast Ratio	1,100:1
Panel Technology	LCD
Resolution	1920 x 1080 (Full HD)
Response Time	12 ms
Screen Size	54.6 inch
Touch Points	12-point multi-touch
Touch Technology	PCAP (projected capacitive)
Viewing Angle	178° horizontal / 178° vertical

Performance
Storage Conditions	-20 to 60 °C; 10% to 90% RH

Connectivity
Input Voltage	100–240 V AC, 50/60 Hz
Ports	HDMI In × 1, VGA In × 1

Power
Power Consumption	82.61 W (typical, on)

Physical
Dimensions	1276 x 746.8 x 67 mm (W x H x D)
Duty Cycle	24 hours/day
Operating Humidity	20% to 80% RH
Operating Temperature	0 to 40 °C
VESA Mount	400 x 400 mm
Weight	29.3 kg

Compliance
Certifications	UL, CE, FCC, Energy Star 7.0, RoHS
Warranty	3 years
