ELODigital SignageSKU 4202L

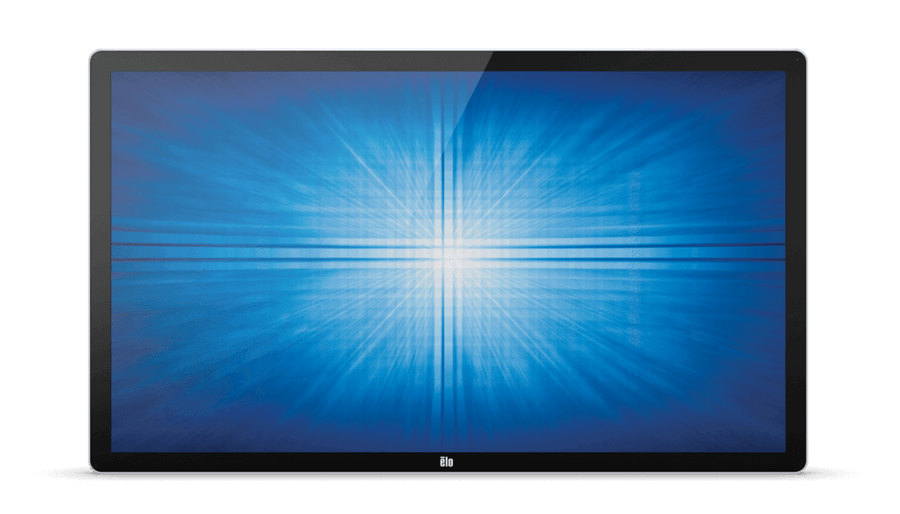

Elo 4202L 42-inch Interactive Digital Signage Display – 4202L
The Elo 4202L is a 42-inch interactive digital signage display offered with PCAP or infrared touch, on a 1920 x 1080 LCD. It suits brand experiences, wayfinding and collaboration in meeting rooms and classrooms, with 500 nits brightness and 4,000:1 contrast. The manufacturer has replaced it with the 4303L. Procure.ae can confirm availability of this model in the UAE.
The 4202L is sold in two touch variants. The PCAP version supports 12 simultaneous touches and the infrared version supports 20. Both use a 42-inch LCD with 1920 x 1080 resolution at 60 Hz, 500 nits LCD brightness, 4,000:1 contrast and an 8 ms response time. The display runs 24 hours a day and provides a 178-degree viewing angle. Four 5 W stereo speakers provide audio.
The panel offers VGA, two HDMI inputs and a DisplayPort 1.1a input, with an RJ45 port for the optional on-screen display remote and a GPIO connector. The USB type B port carries touch data to the connected computer. The unit mounts on a 400 x 400 mm VESA pattern, and the manufacturer lists an extended warranty option for North America and EMEA.
Screen Size
42 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Touch Technology
PCAP (12-point) or infrared (20-poi...
- PCAP or infrared touch
- Full HD display
- High contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
PCAP or infrared touch
PCAP with 12 touches or infrared with 20 touches, by variant.
02
Full HD display
1920 x 1080 resolution at 60 Hz with 500 nits LCD brightness.
03
High contrast
4,000:1 contrast ratio and 8 ms response time.
04
Continuous operation
rated for 24 hours a day in portrait or landscape mode.
05
Multiple video inputs
VGA, two HDMI and a DisplayPort 1.1a input.
06
RFID support
ISO 14443-A, ISO 14443-B and ISO 15693 protocols.
07
Built-in stereo speakers
4 x 5 W stereo speakers and 3.5 mm audio in and out.
08
VESA mounting
400 x 400 mm VESA mount per MIS-F.
Specifications
25 specificationsGeneral
Key FeaturesPCAP or infrared touch by variant, 1920 x 1080 display, 500 nits, 4,000:1 contrast, 24-hour operation, RFID support, 400 x 400 mm VESA, 3-year warranty
Model4202L
TypeInteractive Digital Signage Display
What's in the BoxHDMI cable, USB cable (type A to type B), power cable, 3.5 mm audio cable, energy label
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio4,000:1
Panel TechnologyTFT LCD (LED)
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size42 inch
Touch TechnologyPCAP (12-point) or infrared (20-point), by variant
Viewing Angle178° (horizontal and vertical)
Audio
Speaker Output4 × 5 W stereo
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA × 1, HDMI × 2, DisplayPort 1.1a × 1, USB type B (touch) × 1, GPIO, audio line in, headphone out, RJ45 (optional OSD remote)
Touch USB PortsUSB type B × 1
Power
Power Consumption81.0 W on (120 V, 60 Hz), monitor only
Physical
ColorBlack
Duty Cycle24 hours per day
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C (portrait and landscape)
VESA Mount400 x 400 mm
Compliance
CertificationsUL, FCC Class A, cUL, IC, CB, CE Class A, CCC, EAC, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Elo 4202L 42-inch Interactive Digital Signage Display – 4202L — datasheets, manuals, drawings and certificates.
- Datasheet – 4202L
- Datasheet – IDS 02-Series
- User manual – IDS 02-Series
- User manual – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Quick start guide – IDS 02-Series
- Quick start guide – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Installation guide – IDS 02-Series
- Drawing – 4202L
- Drawing – Elo IDS 02-Series / IDS 03-Series
- Energy label – 4202L
- Energy label – 4202L
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo 4202L?
It is a 42-inch interactive digital signage display with a 1920 x 1080 LCD, available with PCAP or infrared touch. The manufacturer describes it for classrooms, meeting rooms and public-facing brand experiences. The 4202L has been replaced by the 4303L.
Which touch technology does it use?
It depends on the variant. The PCAP version supports 12 simultaneous touches and the infrared version supports 20. The manufacturer lists model codes E222369 and E222372 for this product, so confirm the code that matches the touch type you need.
Can it be wall-mounted?
Yes. The display uses a 400 x 400 mm VESA mount per MIS-F. The manufacturer rates the unit for portrait and landscape use between 0 and 40 °C, and lists 24 hours a day as the maximum operating time.
Does it work with a computer over USB?
Yes. The touch function connects through a USB type B port, and video comes through VGA, HDMI or DisplayPort inputs. Dimensions and weight differ between the two touch variants, so check the variant before ordering a mount.
