ELODigital SignageSKU 3202L PCAP

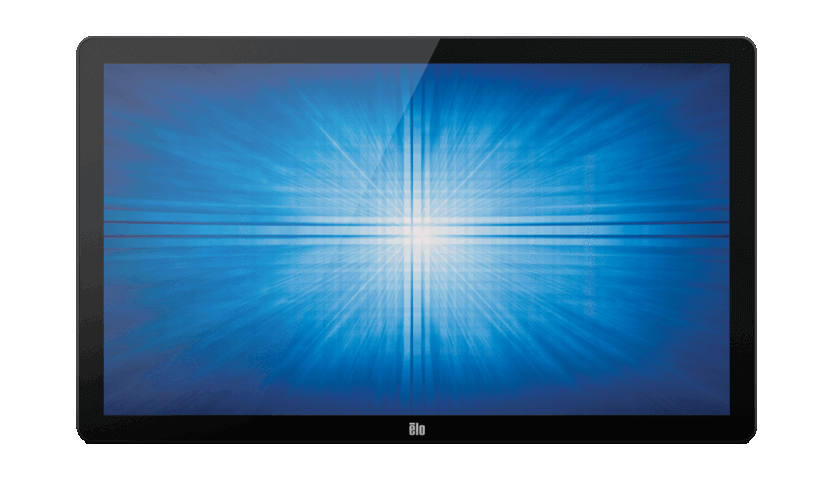

Elo 3202L 32-inch Interactive Digital Signage Display – 3202L PCAP
The Elo 3202L PCAP is a 32-inch interactive digital signage display with 12-point PCAP touch and a 1920 x 1080 LCD. It is built for brand experiences, wayfinding and collaboration, with 500 nits LCD brightness and 3,000:1 contrast. The manufacturer has replaced it with the 3203L. Procure.ae can confirm availability of this model in the UAE.
The 3202L PCAP uses a projected capacitive touch layer that supports 12 simultaneous touches, on a 31.5-inch LCD with 1920 x 1080 resolution at 60 Hz. The manufacturer rates the PCAP layer at 430 nits, with the LCD panel at 500 nits and a 3,000:1 contrast ratio. The 8 ms response time and 178-degree viewing angle suit content-rich displays. Built-in stereo speakers rated at 4 x 5 W provide audio.
The panel offers VGA, two HDMI inputs and a DisplayPort input, with an RJ45 port for the optional on-screen display remote and a GPIO connector. The USB type B port carries touch data to the connected computer. Mounting uses a 400 x 400 mm VESA pattern, and the manufacturer rates the unit for 24-hour operation. RFID support covers ISO 14443-A, ISO 14443-B and ISO 15693.
Screen Size
31.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Touch Technology
PCAP (TouchPro projected capacitive)
- 12-point PCAP touch
- Full HD display
- High contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
12-point PCAP touch
12 simultaneous touches over a 31.5-inch display.
02
Full HD display
1920 x 1080 resolution at 60 Hz with 500 nits LCD brightness.
03
High contrast
3,000:1 contrast ratio and 8 ms response time.
04
Continuous operation
rated for 24 hours a day in portrait or landscape mode.
05
Multiple video inputs
VGA, two HDMI and a DisplayPort input.
06
RFID support
ISO 14443-A, ISO 14443-B and ISO 15693 protocols.
07
Built-in stereo speakers
4 x 5 W stereo speakers and 3.5 mm audio in and out.
08
VESA mounting
400 x 400 mm VESA mount per MIS-F.
Specifications
28 specificationsGeneral
Key Features12-point PCAP touch, 1920 x 1080 display, 500 nits, 3,000:1 contrast, 24-hour operation, RFID support, 400 x 400 mm VESA, 3-year warranty
Model3202L PCAP
TypeInteractive Digital Signage Display
What's in the BoxHDMI cable, USB cable (type A to type B), power cable, 3.5 mm audio cable, quick guide
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio3,000:1
Panel TechnologyTFT LCD (LED)
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size31.5 inch
Touch Points12-point multi-touch
Touch TechnologyPCAP (TouchPro projected capacitive)
Viewing Angle178° (horizontal and vertical)
Audio
Speaker Output4 × 5 W stereo
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA × 1, HDMI × 2, DisplayPort × 1, USB type B (touch) × 1, GPIO, audio line in, headphone out, RJ45 (optional OSD remote)
Touch USB PortsUSB type B × 1
Power
Power Consumption55.0 W on (120 V, 60 Hz), monitor only
Physical
ColorBlack
Dimensions762.8 x 457.3 x 50.5 mm
Duty Cycle24 hours per day
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C (portrait and landscape)
VESA Mount400 x 400 mm
Weight12.82 kg (without ECMG3)
Compliance
CertificationsUL, FCC Class A, cUL, IC, CB, CE Class A, CCC, EAC, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Elo 3202L 32-inch Interactive Digital Signage Display – 3202L PCAP — datasheets, manuals, drawings and certificates.
- Datasheet – IDS 02-Series
- Datasheet – IDS 02-Series
- User manual – IDS 02-Series
- User manual – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Quick start guide – IDS 02-Series
- Quick start guide – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Installation guide – IDS 02-Series
- Drawing – IDS 02-Series
- Drawing – Elo IDS 02-Series / IDS 03-Series
- Energy label – IDS 02-Series
- Energy label – IDS 02-Series
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo 3202L PCAP?
It is a 32-inch interactive digital signage display with 12-point PCAP touch and a 1920 x 1080 LCD. The manufacturer describes it for endless aisle, brand experiences and wayfinding. The 3202L PCAP has been replaced by the 3203L.
Does it work with a computer over USB?
Yes. The touch function connects through a USB type B port, and the display takes video through VGA, HDMI or DisplayPort inputs. The manufacturer includes an HDMI cable and a USB cable in the box.
Can it be wall-mounted?
Yes. The display uses a 400 x 400 mm VESA mount per MIS-F. The manufacturer rates the unit for portrait and landscape use between 0 and 40 °C, and lists 24 hours a day as the maximum operating time.
Does it include speakers?
Yes. The display has four 5 W stereo speakers, plus a 3.5 mm audio input and a 3.5 mm headphone output. The box includes a 3.5 mm audio cable for connecting an external audio source.
