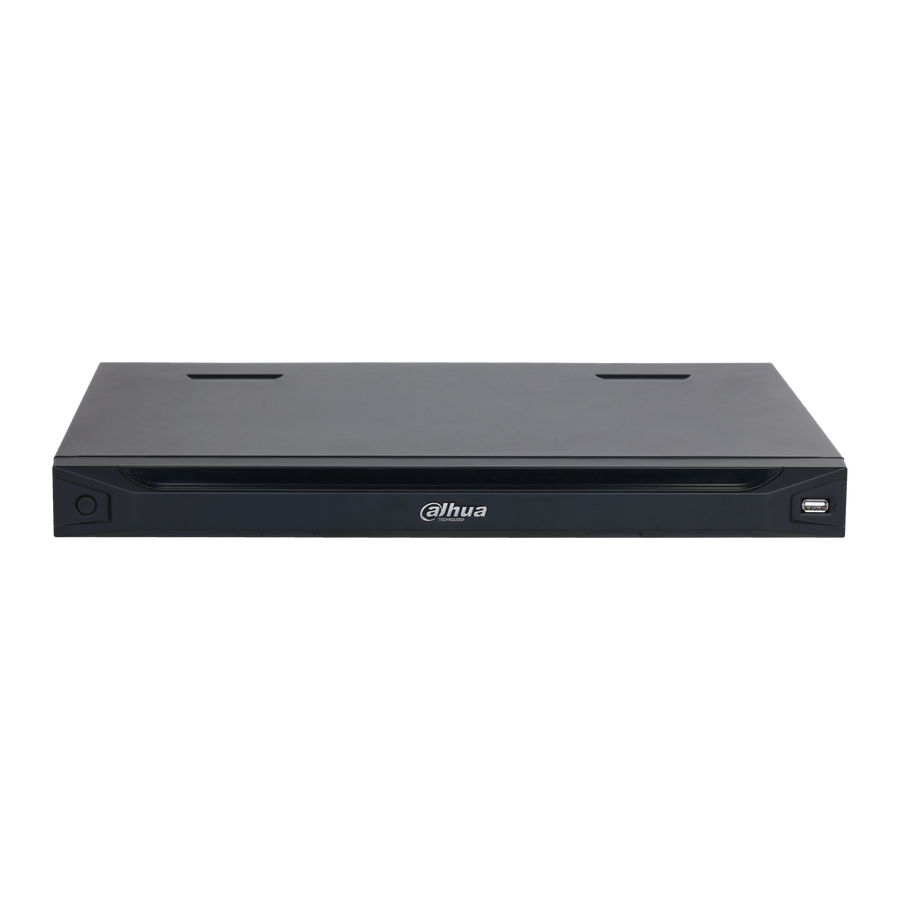

Dahua Ultra-HD 8K Video Wall Decoder – NVD0405DU-2I-8K
The Dahua NVD0405DU-2I-8K is a 1U Ultra-HD network video decoder for video walls and operator viewers. It decodes two 8K channels in real time, drives four HDMI 2.0 outputs at 4K 60 fps, and splices images up to 8K across up to four displays. Procure.ae supplies the NVD0405DU-2I-8K across the UAE.
The decoder accepts one HDMI 2.0 input at 4K 60 fps and one HDMI 1.4 input. Its total decoding capacity is 2 channels at 32 MP, 7 at 12 MP, 10 at 8 MP, 14 at 6 MP, 36 at 1080p and 144 at D1. Splicing supports zoom, merge, roam and overlay control across screens. Free split layouts and 1, 4, 6, 8, 9, 16, 25 and 36 splits are available. Fisheye dewarp corrects wide-angle views, and audio output uses a 3.5 mm jack.
The NVD0405DU-2I-8K is designed for multi-screen control rooms and video walls that need 8K image splicing. The manufacturer lists ceiling, wall and ground mount installation modes for its multi-video split display. It is managed through two RS-232 ports, one RS-485 port and alarm input, and it fits a 1U rack space at 440 x 322.25 x 44 mm.
Resolution
3840 x 2160 (4K UHD)
Type
Video Wall Decoder
Weight
3.2 to 3.5 kg
- 8K image splicing
- Real-time decoding
- Four 4K outputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
8K image splicing
splices images up to 8K across up to four video-wall displays or monitors.
02
Real-time decoding
2 channels at 8K, 10 at 4K, 36 at 1080p and 144 at D1 in real time.
03
Four 4K outputs
four HDMI 2.0 outputs carry 4K at 60 fps.
04
Dual HDMI inputs
one HDMI 2.0 input at 4K 60 fps and one HDMI 1.4 input.
05
Screen control
zoom, merge, roam and overlay functions for spliced screens.
06
Flexible splits
1, 4, 6, 8, 9, 16, 25 and 36 splits, plus free split layouts.
07
Fisheye dewarp
multi-video split display in ceiling, wall or ground mount modes.
08
Alarm and serial control
alarm input, two RS-232 ports and one RS-485 port.
Specifications
18 specificationsGeneral
Key Features2 channels at 8K real-time decoding, 4 HDMI outputs at 4K 60 fps, 8K image splicing, zoom/merge/roam/overlay screen control, free split layouts, fisheye dewarp, alarm, RS-232 and RS-485 control
ModelNVD0405DU-2I-8K
TypeVideo Wall Decoder
Display
Resolution3840 x 2160 (4K UHD)
Performance
Operating SystemLinux
ProcessorEmbedded processor
Audio
Audio CodecsPCM, G.711, AAC
Audio Out3.5 mm jack
Connectivity
HDMI InputsHDMI 2.0 × 1, HDMI 1.4 × 1
HDMI OutputsHDMI 2.0 × 4 (4K at 60 fps)
Input VoltageDC 12 V, 5 A
PortsHDMI In × 2, HDMI Out × 4, RJ45 Network × 1, RS-232 × 2, RS-485 × 1, 3.5 mm Audio In × 1, 3.5 mm Audio Out × 1
Power
Power Consumption60 W (maximum)
Physical
Dimensions440 x 322.25 x 44 mm (W x D x H)
Operating Humidity10% to 95% RH
Operating Temperature-10 to 55 °C
Rack Units1U
Weight3.2 to 3.5 kg
Downloads
Manufacturer documents for the Dahua Ultra-HD 8K Video Wall Decoder – NVD0405DU-2I-8K — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the NVD0405DU-2I-8K support 8K video walls?
Yes. It supports 8K image splicing across video-wall screens. It decodes 2 channels at 8K in real time and can spread one image across up to four display units or monitors.
How many displays can one unit drive?
It has four HDMI 2.0 outputs that support 4K at 60 fps, and it supports up to four video-wall display units or monitors. Splicing controls include zoom, merge, roam and overlay.
Can it drive a 4K display wall?
Yes. Each of the four HDMI 2.0 outputs runs 4K at 60 fps. The manufacturer also lists 1920 x 1080 at 60 fps and 1280 x 720 as display resolutions.
Can it be installed in a ceiling, wall or floor position?
The manufacturer states that fisheye dewarp supports multi-video split display in ceiling, wall and ground mount installation modes. The unit is 1U at 440 x 322.25 x 44 mm, and the specifications do not list a VESA mount.
What integration and control ports does it have?
It has one RJ45 network port, two RS-232 ports, one RS-485 port and alarm support. It also has a 3.5 mm audio output and a bi-directional talk pair, so audio equipment can be connected for two-way communication.
