DahuaInteractive Flat PanelsSKU LPH65-ST480-U-S2

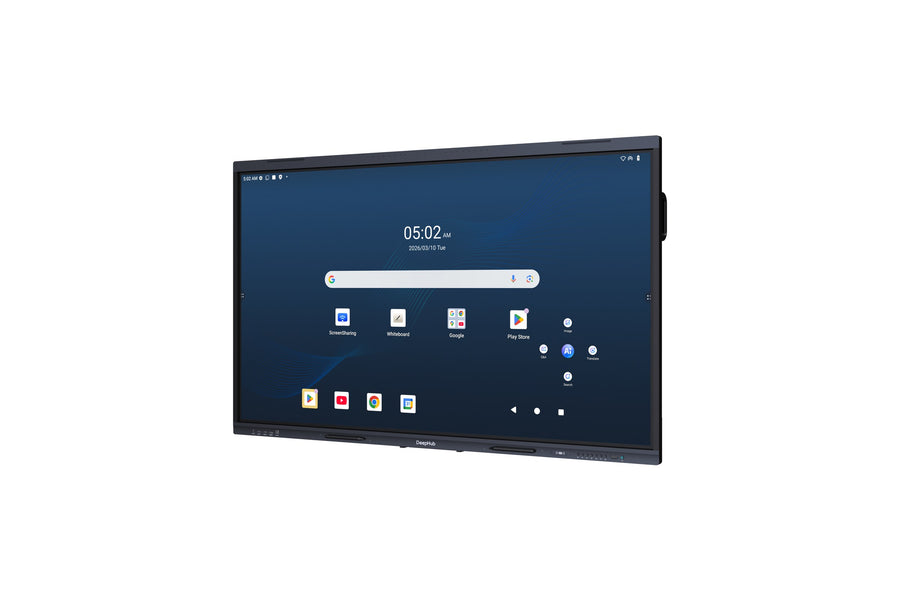

Dahua ST480 65-inch 4K Interactive Flat Panel – LPH65-ST480-U-S2
The Dahua ST480 LPH65-ST480-U-S2 is a 65-inch 4K UHD interactive flat panel, or smart board, for classrooms, lecture theatres and boardrooms. It has 64-point infrared touch, a 16-array microphone, four speakers and built-in Android 15 with 8 GB RAM and 128 GB storage. Procure.ae supplies the LPH65-ST480-U-S2 in the UAE.
The LPH65-ST480-U-S2 has a 65-inch 4K UHD panel at 3840 x 2160 resolution, 400 cd/m² typical brightness, 1,500:1 typical static contrast and a 60 Hz refresh rate. Its infrared touch supports 64 touch points on Android and Windows, with a 1.5 mm valid touch zone and a touch response time of 1.67 ms or less. The quad-core A76 and quad-core A55 processor runs with 8 GB RAM and 128 GB storage. Four speakers and a 16-array microphone with 0 m to 12 m pickup, echo cancellation and noise filtering support lessons and video calls.
The 65-inch model suits lecture theatres, classrooms and boardrooms. It runs Android 15 natively, and its external module supports Windows 7/8/10/11. The panel offers 10-bit colour, a 90% NTSC gamut and Wi-Fi 6. It mounts on a wall or a mobile bracket, with 600 x 400 mm hole spacing. The other two ST480 sizes share this port layout and microphone array. Procure.ae, an authorised reseller, supplies it across the UAE with delivery, installation and free training.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD panel
- 10-bit colour
- Infrared touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
65-inch 16:9 display at 3840 x 2160 resolution with 90% NTSC colour gamut.
02
10-bit colour
1.07 billion display colours at 10-bit depth.
03
Infrared touch
64 touch points on Android and Windows, with a 1.5 mm valid touch zone.
04
Pen and palm features
Pen writing, dual-colour pen, palm erasing and palm rejection.
05
Microphone array
16-array microphone with 0 m to 12 m pickup, echo cancellation and noise filtering.
06
Four-speaker audio
Two 10 W and two 20 W speakers in a 2.2 channel layout.
07
Built-in Android 15
Quad-core A76 and quad-core A55 processor with 8 GB RAM, 128 GB storage and microSD up to 512 GB.
08
Wireless and USB-C connectivity
Wi-Fi 6, Bluetooth 5.4, NFC and a front USB-C port with 100 W fast charge, data and LAN.
Specifications
46 specificationsGeneral
Key Features4K UHD, 10-bit colour, 64-point infrared touch, 16-array microphone, 4 speakers, Android 15, Wi-Fi 6, Bluetooth 5.4
ModelLPH65-ST480-U-S2
TypeInteractive Flat Panel
What's in the BoxSmart interactive whiteboard, 2 stylus pens, remote control, wall mount bracket, wireless plug-in module, power cord, wall-mount screw pack, quick start guide, legal and regulatory information
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Color Gamut90% NTSC
Contrast Ratio1,500:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time≤8 ms
Screen Size65 inch
Touch Points64-point multi-touch (Android and Windows)
Touch Resolution32768 x 32768
Touch Response Time≤1.67 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
FunctionsPen writing, finger dragging, dual-colour pen, multi-touch, palm erasing, palm rejection
GraphicsMali-G610 MC4
Operating SystemAndroid 15 (built-in); Windows 7/8/10/11 (external module)
ProcessorQuad-core A76 + quad-core A55
RAM8 GB
Storage128 GB
Audio
Frequency Response90 Hz–20 kHz
Microphone16-array, omnidirectional
Pickup Range0 to 12 m
Polar PatternOmnidirectional
Speaker Configuration2.2 channel, 4 speakers
Speaker Output2 × 10 W + 2 × 20 W
Connectivity
BluetoothBluetooth 5.4
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 4 (3 at 4K@60 Hz), HDMI Out × 1 (4K@60 Hz), DP In × 1 (4K@60 Hz), VGA In × 1, USB 3.2 Gen1 Type-A × 4, USB-C × 3, USB 2.0 Type-A × 1, touch USB 2.0 Type-B × 4
SD Card Slot1 × microSD card slot, up to 512 GB
Wi-FiWi-Fi 6 (802.11 a/b/g/n/ac/ax), station and access point
Power
Power Consumption85 W (typical), 290 W (max)
Standby Power≤0.5 W
Physical
ColorBlack (left and right), Lunar Rock Gray (top and bottom)
Dimensions1446.6 x 913.3 x 116.2 mm
MaterialMetal casing, 3.2 mm anti-glare tempered glass
MountingWall mount or mobile bracket
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight35 kg
Downloads
Manufacturer documents for the Dahua ST480 65-inch 4K Interactive Flat Panel – LPH65-ST480-U-S2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the LPH65-ST480-U-S2?
It is a 65-inch 16:9 display with 3840 x 2160 (4K UHD) resolution. The panel is rated at 400 cd/m² typical brightness and 1,500:1 typical static contrast, with a 60 Hz refresh rate and 178° viewing angles.
How many touch points does it support?
It supports 64 touch points on both Android and Windows, using infrared touch technology with a 1.5 mm valid touch zone. Touch response is 1.67 ms or less, and palm rejection and palm erasing are included.
Which operating system does it run?
It runs Android 15 natively, with 8 GB RAM and 128 GB storage built in. The external module supports Windows 7/8/10/11, so Windows can run through the module alongside the built-in Android system.
Is it suitable for lecture theatres and large rooms?
Yes. The 16-array microphone picks up voices from 0 m to 12 m with echo cancellation and noise filtering, and four speakers give 2.2 channel audio for lessons and calls.
What wall mount does it need?
It mounts on a wall with the included wall mount bracket or on a mobile bracket. The mounting hole spacing is 600 x 400 mm, and the box includes a wall-mount screw pack.
