DahuaInteractive Flat PanelsSKU LPH65-ST430

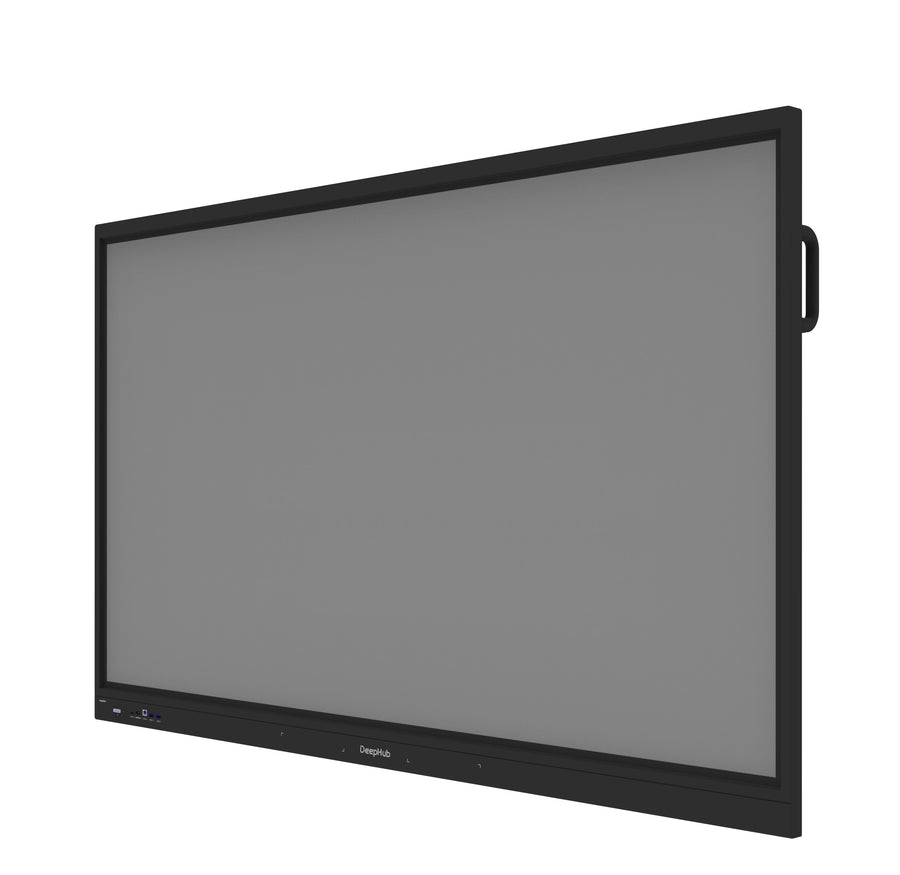

Dahua ST430 Series 65-inch Interactive Flat Panel – LPH65-ST430
The Dahua LPH65-ST430 is a 65-inch 4K interactive flat panel for schools and education spaces. It runs Android 14 with 8 GB RAM and 128 GB storage, and its infrared touch supports up to 40 points on Windows. Procure.ae supplies it across the UAE.
The 65-inch panel has a 3840 x 2160 display with 400 cd/m² typical brightness, 72% NTSC colour and a 178° viewing angle. Infrared touch supports 32 points on Android and 40 points on Windows, with a 2 mm valid touch zone, finger and stylus pen writing, and anti-glare tempered glass with surface hardness of 9H or more. Two full-range speakers, each rated at 20 W or more, provide 2.0 channel audio for classroom teaching. A front power button and a built-in light sensor complete the front panel.
The LPH65-ST430 runs Android 14 natively, and the manufacturer lists Windows 7, 8, 10 and 11 support through an external module. It has one OPS port, 802.11ax Wi-Fi, Bluetooth 5.4, an IR receiver and three HDMI IN ports on the front and rear panels. It mounts on a wall or mobile bracket with a 500 x 400 mm hole pattern and weighs 35 kg net.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 65-inch 4K display
- Android 14 platform
- 32/40-point touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65-inch 4K display
3840 x 2160 resolution, 400 cd/m² typical brightness and 72% NTSC colour.
02
Android 14 platform
Quad-core Cortex-A73 processor with 8 GB RAM and 128 GB ROM.
03
32/40-point touch
Infrared touch with 32 points on Android and 40 points on Windows.
04
Two full-range speakers
Each rated at 20 W or more, with 2.0 channel audio.
05
Anti-glare glass
4 mm anti-glare tempered glass with surface hardness of 9H or more.
06
Classroom connectivity
Three HDMI IN ports (4K@60 Hz), USB Touch Type-B, USB-C and an RJ-45 network port.
07
Wireless connectivity
802.11ax Wi-Fi, Bluetooth 5.4 and an IR receiver.
08
Mounting options
Wall mount or mobile bracket with a 500 x 400 mm hole pattern.
Specifications
39 specificationsGeneral
Key FeaturesAndroid 14, 4K UHD, 32/40-point touch, two full-range speakers, OPS port, 802.11ax Wi-Fi, Bluetooth 5.4, Energy Star
ModelLPH65-ST430
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Color Gamut72% NTSC
Contrast RatioVA: 4,000:1; IPS: 1,200:1 (typical)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy±1.5 mm
Touch Points32-point Android, 40-point Windows multi-touch
Touch Response Time≤5 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsMali G52MC1
Operating SystemAndroid 14
ProcessorQuad-core Cortex-A73
RAM8 GB
Storage128 GB
Audio
Frequency Response140 Hz–20 kHz
Speaker Configuration2 full-range speakers, 2.0 channel
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.4
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3 (4K@60 Hz), USB 2.0 Type-A × 3, USB 3.2 Type-A × 1, USB-C × 1, USB Touch Type-B × 2, RS-232 × 1, RJ-45 × 1
Wi-Fi802.11 a/b/g/n/ac/ax
Power
Power Consumption138 W (basic), 240 W (max)
Standby Power≤0.5 W
Physical
ColorBlack
Dimensions1485.2 x 916.6 x 116.5 mm
MaterialMetal casing
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount500 x 400 mm
Weight35 kg
Compliance
CertificationsCE, EDLA, Energy Star
Downloads
Manufacturer documents for the Dahua ST430 Series 65-inch Interactive Flat Panel – LPH65-ST430 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Dahua LPH65-ST430 run Android or Windows?
It runs Android 14 natively, with 8 GB RAM and 128 GB ROM. The manufacturer's specifications also list Windows 7, 8, 10 and 11 support through an external module, so either platform can be used.
How many people can write on the LPH65-ST430 at once?
The manufacturer lists 32 touch points on Android and 40 on Windows, with a 2 mm valid touch zone covering 90% of the screen. Finger and stylus pen writing are supported, so more than one student can write at the same time.
What room size suits the 65-inch ST430?
It suits classrooms and training rooms where students sit within the viewing range of a 65-inch screen. The 178° viewing angles keep content visible from the side, and the two full-range speakers provide classroom sound.
How is the LPH65-ST430 mounted?
It can be wall-mounted or fitted to a mobile bracket. The hole pattern is 500 x 400 mm and the net weight is 35 kg, so use wall fixings rated for that load and confirm the wall structure before installation.
Does it connect to laptops and other devices?
Yes. It has three HDMI IN ports supporting 4K at 60 Hz, several USB Type-A ports, a USB-C port for data and 5 V charging, and an RJ-45 network port. Wi-Fi and Bluetooth 5.4 are also included.
Can I buy the LPH65-ST430 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
