DahuaVideo WallsSKU LS55OUCM-EF

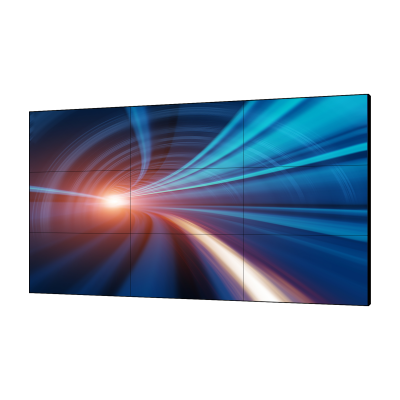

Dahua LS550UCM-EF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display
The Dahua LS550UCM-EF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display is a video wall available in the UAE from Procure.ae.
This Dahua LS550UCM-EF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display is a top-of-the-line solution for immersive viewing experiences. With ultra-narrow bezels measuring just 3.5mm, this display offers crisp Full HD resolution on a large 55-inch screen, making it perfect for digital signage, command centers, and control rooms. The high-quality panel delivers stunning visuals with vivid colors and sharp details, ensuring your content stands out. Designed for 24/7 operation , this video wall display is reliable and durable, suitable for continuous use in various environments.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Weight
21.4 kg
- Sleek Design
- Wide Viewing Angle
- Easy Installation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Sleek Design
Modern and stylish appearance
02
Wide Viewing Angle
Ensures clear visibility from various positions
03
Easy Installation
Hassle-free setup process
04
Energy-Efficient
Low power consumption for cost savings
05
Multiple Connectivity Options
Versatile input ports for seamless integration
06
Uniform Brightness
Consistent brightness across the display
07
Remote Control
Convenient operation from a distance
08
Flexible Configuration
Customize the display layout as needed
Specifications
31 specificationsGeneral
Key FeaturesADS panel, 24/7 operation, ultra-narrow 3.5 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size3.5 mm (panel-to-panel gap)
Brightness500 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,200:1
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
Connectivity
HDMI InputsHDMI In × 1
HDMI OutputsHDMI Out × 2
InputsCVBS (BNC), VGA, DVI-D, HDMI, RS-232, USB, Audio, IR
Serial PortRS-232 × 1
USB PortsUSB × 2
VGA InputVGA × 1
Power
Power Consumption175 W (typical), 180 W (max)
Standby Power< 0.5 W
Physical
Dimensions1213.5 x 684.3 x 126 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 50 °C
Shipping Dimensions1360 x 945 x 280 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%

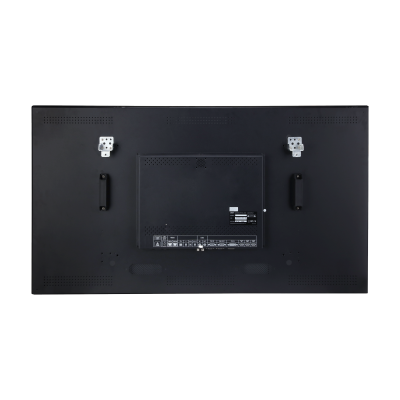

VESA Mount600 x 400 mm, M6
Weight21.4 kg
Compliance
Country of OriginChina
Downloads
Manufacturer documents for the Dahua LS550UCM-EF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua video wall used for?
This Dahua LS550UCM-EF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display is a top-of-the-line solution for immersive viewing experiences. With ultra-narrow bezels measuring just 3.5mm, this display offers crisp Full HD resolution on a large 55-inch screen, making it perfect for digital signage,.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Can several panels be tiled into one large video wall?

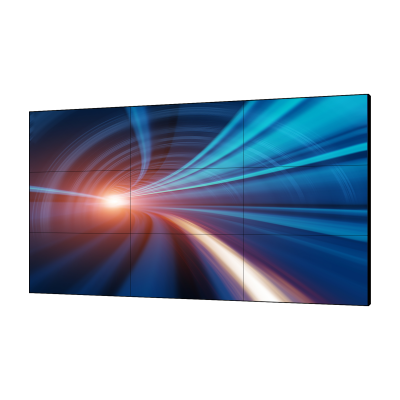

Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
Where are video walls like this typically used?
