DahuaVideo WallsSKU LS550OUCM-BF

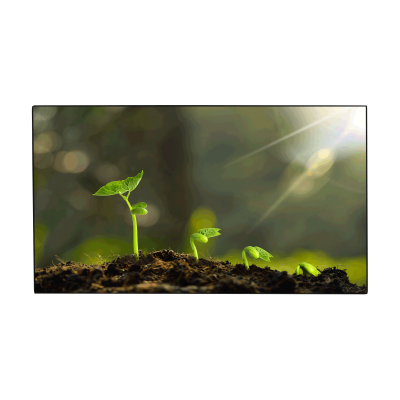

Dahua LS550UCM-BF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display
The Dahua LS550UCM-BF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display is a video wall available in the UAE from Procure.ae.
Experience cutting-edge visual performance with the Dahua LS550UCM-BF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display. This sleek and powerful display offers crisp Full HD resolution, immersive viewing experience, and dynamic picture quality. Whether for business presentations, control rooms, or digital signage, this video wall display delivers stunning visuals that captivate audiences.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
- Ultra Narrow Bezel
- Full HD Resolution
- High Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Narrow Bezel
Provides a seamless viewing experience.
02
Full HD Resolution
Crystal-clear imagery with vibrant colors.
03
High Brightness
Ensures visibility even in brightly lit environments.
04
Wide Viewing Angle
Allows viewers to see the display clearly from various positions.
05
Easy Installation
Simplifies setup and maintenance.
06
Energy Efficient
Helps in reducing power consumption.
07
Remote Control
Conveniently manage display settings from a distance.
08
Multiple Input Ports
Offers versatility in connectivity options.
Specifications
23 specificationsGeneral
Key FeaturesADS panel, 24/7 operation, ultra-narrow 3.5 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size3.5 mm (panel-to-panel gap)
Brightness500 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms (GtG)
Screen Size55 inch
Connectivity
InputsCVBS (BNC), VGA, DVI-D, HDMI, RS-232, USB, IR
Power
Power Consumption130 W (typical), 166 W (max)
Standby Power< 0.5 W
Physical
Dimensions1213.7 x 684.5 x 85.9 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 50 °C
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm, M6
Weight18.5 kg
Compliance
Country of OriginChina
Downloads
Manufacturer documents for the Dahua LS550UCM-BF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua video wall used for?
Experience cutting-edge visual performance with the Dahua LS550UCM-BF 55’’ FHD Ultra Narrow Bezel 3.5mm Video Wall Display. This sleek and powerful display offers crisp Full HD resolution, immersive viewing experience, and dynamic picture quality. Whether for business presentations, control rooms,.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.

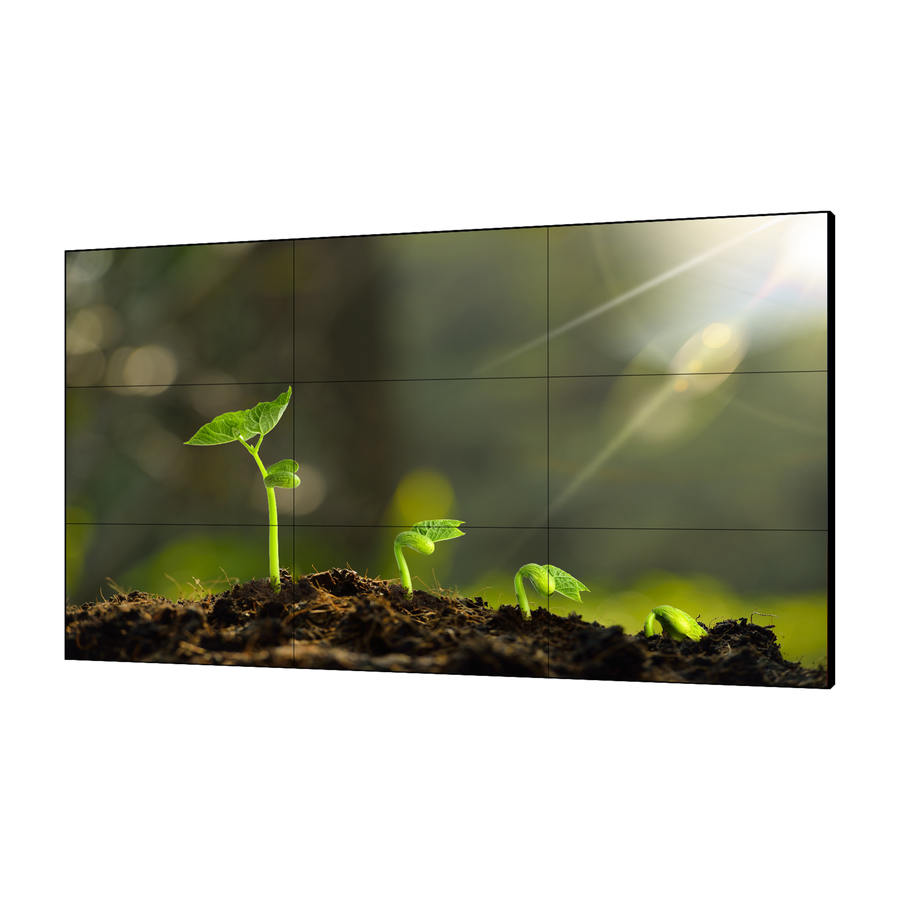

Can several panels be tiled into one large video wall?
Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
Where are video walls like this typically used?
