DahuaVideo WallsSKU DSCON3000-7U

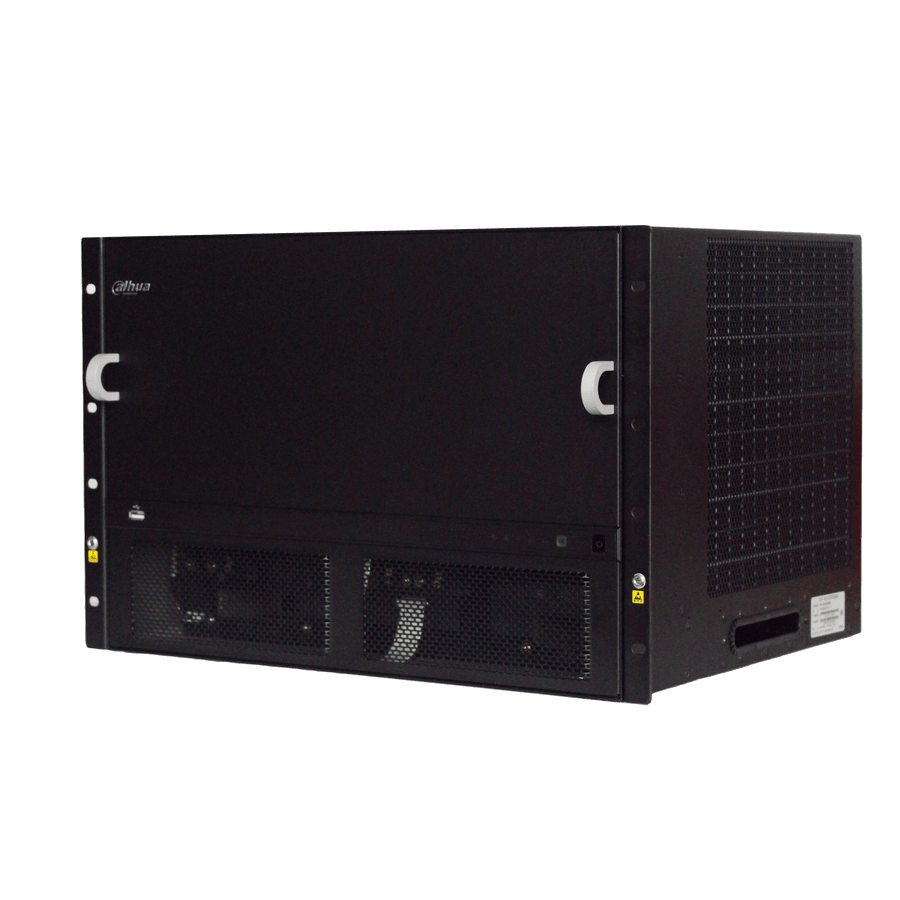

Dahua DSCON3000 7U ATCA Video Wall Controller – DSCON3000-7U
The Dahua DSCON3000-7U is a 7U ATCA video wall controller for large multi-screen systems. Fully configured, it decodes 320 channels at 1080P and splices up to 160 LCD units. It supports 4K/30 fps video inputs and outputs. Procure.ae supplies the Dahua DSCON3000-7U in the UAE for video wall projects.
The DSCON3000-7U is a 7U ATCA multi-screen controller that handles analog and digital video through pluggable input and output cards. Fully configured, it decodes 320 channels at 1080P or 1,280 channels at D1, and supports 4K/30 fps video inputs and outputs. Its IP HD matrix switches up to 1,024 IP inputs, and it splices up to 160 LCD units with zoom, merge, roam and overlay functions. An FPGA array framework and a PCI-E bus provide high system bandwidth for the switch matrix.
The DSCON3000-7U suits large video wall projects that need high channel counts and many splicing screens in one chassis. It is managed from a PC client, local GUI, network keyboard or iPad, and its two RJ-45 gigabit ports handle matrix control and preview. It draws 90 W minimum and 590 W fully configured, and the chassis weighs up to 35 kg. Compared with the 4U model, it adds more decoding channels and supports 160 LCD units instead of 80.
Resolution
Up to 3840 x 2160 @ 30 fps (HDMI ou...
Type
Video Wall Controller
Weight
35 kg maximum (fully configured)
- ATCA Chassis
- Decoding Capacity
- 4K Video Path
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ATCA Chassis
19-inch standard 7U ATCA industry box with a high-speed passive rear panel.
02
Decoding Capacity
320 channels at 1080P or 1,280 channels at D1 decoding when fully configured.
03
4K Video Path
Supports 4K/30 fps video inputs and 4K/30 fps outputs.
04
Large Splicing
Splices up to 160 LCD display units.
05
Pluggable Card Design
Pluggable card modules for easy, flexible configuration.
06
PCI-E Bus
PCI-E bus and FPGA array framework for high system bandwidth.
07
Redundant Power
Redundant power is optional, with a smart temperature-controlled fan.
08
Remote Operation
Remote reboot, upgrade and default-setting operations.
Specifications
21 specificationsGeneral
CompatibilityIPC, NVR, EVS and other network devices
ControlsPC client, local GUI, network keyboard, iPad
Key Features7U ATCA chassis, pluggable card modules, 320-ch 1080P decoding (fully configured), 4K/30 fps inputs and outputs, splicing up to 160 LCD units, redundant power optional, remote cast
ModelDSCON3000-7U
TypeVideo Wall Controller
Display
ResolutionUp to 3840 x 2160 @ 30 fps (HDMI output); 1920 x 1080 @ 60 Hz
Performance
Operating SystemEmbedded Linux
ProcessorIntel X86 Baytrail microprocessor
Connectivity
Input Voltage100–120 V AC and 200–240 V AC (redundant power optional)
InputsInput cards: 2-ch HDMI 4K, 4-ch HDMI, 8-ch HDMI, 4-ch DVI-I, 4-ch 3G-SDI, 32-ch CVBS
OutputsOutput cards: 4-ch HDMI 1.4 (4K), 8-ch HDMI 1.3, 4-ch 3G-SDI, 8-ch HD-SDI
PortsRJ-45 × 2 (1000M), RS-232 × 4, RS-485 × 1, USB 2.0 × 3, USB 3.0 × 1
ProtocolsTCP, UDP, RTP, RTSP, RTCP
Serial Port4 × RS-232 (1 DB9, 3 RJ-45), 1 × RS-485
Power
Power Consumption90 W minimum system; 590 W fully configured
Physical
Dimensions482.6 x 310 x 434 mm (W x H x D)
Mounting19-inch standard 7U ATCA chassis
Operating Humidity10% to 90% RH
Operating Temperature-10 to +55 °C
Rack Units7U
Weight35 kg maximum (fully configured)
Downloads
Manufacturer documents for the Dahua DSCON3000 7U ATCA Video Wall Controller – DSCON3000-7U — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What inputs does the DSCON3000-7U accept?
It accepts analog, digital and IP sources. Pluggable input cards include HDMI, DVI-I, 3G-SDI and CVBS, and it supports IPC, NVR and EVS devices over its network ports. Support for 4K/30 fps video inputs is listed for the chassis.
How many screens can the DSCON3000-7U splice?
Up to 160 LCD display units can be spliced. Zoom, merge, roam and overlay functions are supported across the wall, and splicing is managed through the PC client or local GUI.
Does the DSCON3000-7U support 4K?
Yes. The chassis supports 4K/30 fps video inputs and outputs. The 2-channel HDMI 1.4 input card accepts 4K, and the HDMI output card lists 3840 x 2160 @ 30 fps.
Which control methods does it support?
It is controlled from a PC client, local GUI, network keyboard or iPad. Its two RJ-45 gigabit ports handle matrix control and preview, and remote reboot, upgrade and default-setting operations are also supported.
