DahuaVideo WallsSKU DSMS0105UHI-4K

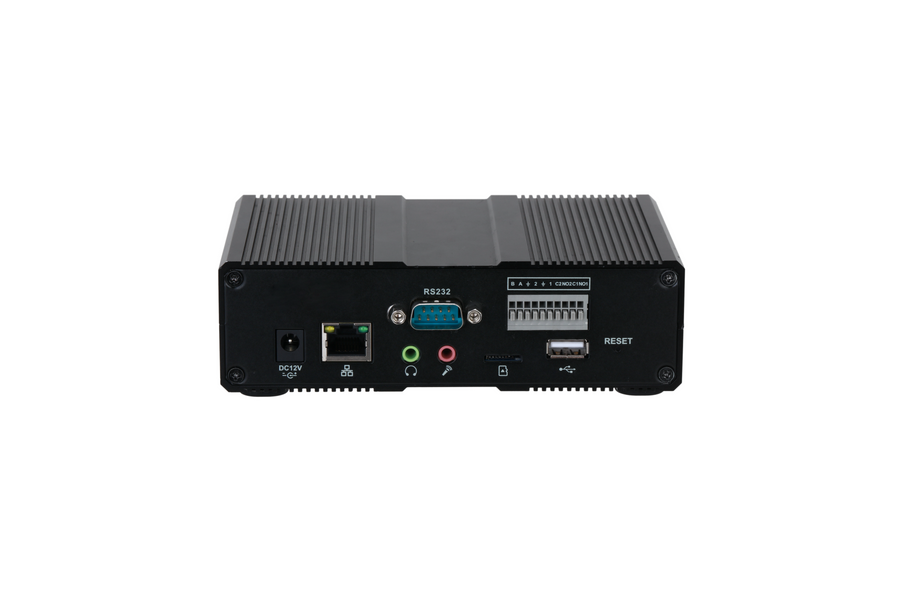

Dahua Distributed Ultra HD 4K AVoIP Encoder – DSMS0105UHI-4K
The Dahua DSMS0105UHI-4K is a distributed AVoIP encoder that captures one HDMI or DisplayPort source and streams it over IP with 4K@30 H.265 or H.264 encoding. It suits video wall and control room installations that need unified signal distribution. Its SFP fibre port provides hot-backup network switching. Procure.ae supplies it in the UAE.
The DSMS0105UHI-4K accepts one HDMI 1.4 and one DisplayPort source and encodes them in real time, with 4K@30 and H.265 support. It supports TCP/IP, RTP, RTSP, HTTP, UDP, DHCP and NTP, and streams can be used with RTSP or private protocols. A 1000M RJ-45 port and a 1000M SFP optical port can be used together for network redundancy. Remote reboot, upgrade and default-setting operations are supported, and an SDK and development manual are provided.
The encoder is built for distributed installations where sources sit in different rooms and feed decoders at video walls or monitoring positions. It supplies a 1-channel HDMI loop output, an RS-232 port for maintenance, and an RS-485 port. It can be powered by 12 VDC or PoE, with both inputs usable for redundancy. The unit is compact at 153.8 x 45 x 100 mm and weighs 0.65 kg, so it fits in equipment racks and cabinets with limited space.
Resolution
3840 x 2160 (4K UHD) @ 30 fps encoding
Type
Distributed 4K AVoIP Encoder
Weight
0.65 kg (net)
- 4K@30 real-time encoding
- Dual-source capture
- Network redundancy
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K@30 real-time encoding
Encodes 4K@30 video in real time with H.265 and H.264 options.
02
Dual-source capture
Captures one HDMI 1.4 input and one DisplayPort input as independent channels.
03
Network redundancy
A 1000M RJ-45 port and a 1000M SFP optical port support hot-backup switching.
04
Loop output
A 1-channel HDMI loop output lets the source feed a local display at the same time.
05
USB control extension
Supports USB control signal encoding and remote delivery of USB flash disk contents.
06
Dual power input
Accepts redundant power from 12 VDC and PoE.
07
Remote management
Remote reboot, upgrade and default-setting operations are supported over the network.
08
Developer tools
An SDK, demo software and development manual are provided for system integration.
Specifications
18 specificationsGeneral
Key Features4K@30 H.265 and H.264 encoding, HDMI and DisplayPort capture, SFP and RJ-45 hot backup, HDMI loop output, USB extension, 12 VDC or PoE power, SDK provided
ModelDSMS0105UHI-4K
TypeDistributed 4K AVoIP Encoder
Display
Resolution3840 x 2160 (4K UHD) @ 30 fps encoding
Performance
Operating SystemEmbedded Linux
ProcessorHigh-performance embedded processor
Audio
Audio CodecsH.265, H.264 video; PCM audio
Audio InEmbedded HDMI/DP audio, 3.5 mm jack × 1
Channels1 channel
Connectivity
PortsHDMI 1.4 In × 1, DisplayPort In × 1, HDMI Loop Out × 1, RJ-45 1000M × 1, SFP 1000M × 1, RS-232 × 1, RS-485 × 1
ProtocolsRTSP, private, TCP/IP, RTP, HTTP, UDP, DHCP, NTP
Serial PortRS-232 × 1 (DB9)
Power
Power Consumption10 W (maximum)
Power Source12 VDC or PoE, dual-input redundancy
Physical
Dimensions153.8 x 45 x 100 mm (W x H x D)
Operating Humidity10% to 95% RH, non-condensing
Operating Temperature-10 to 45 °C
Weight0.65 kg (net)
Downloads
Manufacturer documents for the Dahua Distributed Ultra HD 4K AVoIP Encoder – DSMS0105UHI-4K — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the DSMS0105UHI-4K support 4K video?
Yes. It supports 4K@30 real-time encoding with H.265 and H.264 compression. It accepts HDMI 1.4 and DisplayPort inputs, so the source can be a 4K computer or media player that outputs through either interface.
Can the DSMS0105UHI-4K work with RTSP systems?
Yes. The encoder supports RTSP and a private protocol, and it uses TCP/IP, RTP, HTTP, UDP, DHCP and NTP for network operation. Streams can be received by compatible decoders and third-party RTSP-capable clients.
Does the DSMS0105UHI-4K support network redundancy?
Yes. It has a 1000M RJ-45 port and a 1000M SFP optical port, and both can be used at the same time for hot-backup network redundancy. Disconnecting either link does not interrupt the network connection.
Is the DSMS0105UHI-4K suitable for mounting in a rack?
The manufacturer gives the unit dimensions as 153.8 x 45 x 100 mm and a net weight of 0.65 kg. Its compact size suits equipment racks and cabinets, but the manufacturer's specifications do not state a rack-mount kit, so confirm the mounting method when quoting.
