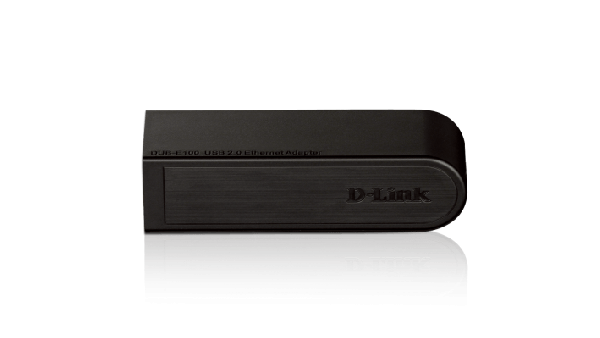

D-Link DUB-E100 High Speed USB 2.0 Fast Ethernet Adapter

General

• USB Specification Version 2.0
• USB Specification Version 1.1
• USB Specification Version 1.0
• OHCI (Open Host Controller Interface)
• EHCI (Enhanced Host Controller Interface)
• IEEE 802.3 Ethernet
• IEEE 802.3u 100 BASE-T, TX and T4 compatible
• Supports suspended mode and remote wakeup
• Embedded 7K * 16 bit SRAM Buffer
• Supports full and half duplex in Fast Ethernet

Compatible Operating Systems

• Microsoft Windows XP, Me, 2000, 98SE with USB Support

Ports/Connector

• One USB Type “A” Connector
• One RJ-45 (10/100 Mbps Dual-Speed)

Wiring Topology

• Tiered Star

Connectivity

• Up to 127 devices by cascading multiple hubs

Diagnostic LED's

• Power/Link
• Tx/Rx Traffic

Temperature

• 0°C to 55°C

Storage Temperature

• -20°C to 70°C, non-condensing

Humidity

• 5% to 95%, non-condensing

Power Requirements

• Bus Powered - 2.5 W, 0.5 A @ 3.3 VDC (+ or - .3 VDC )

Power Consumption

• 150 mA @ 3.3 VDC

Compliance

• CE, FCC Class B, VCCI, UL

Warranty

• 1 Year
