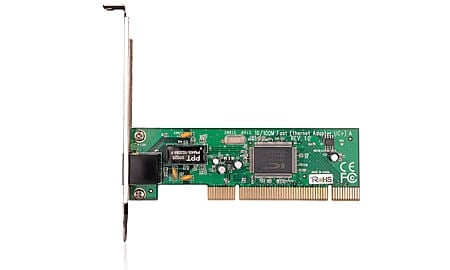

TP-Link TF-3200 10/100Mbps PCI Network Adapter

Standards and Protocols

IEEE 802.3, 802.3u, 802.3x
CSMA/CD, TCP/IP, PCI Revision 2.1/2.2

Interface

32-bit PCI
1 10/100Mbps RJ45 port

Network Media

10BASE-T:UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Data Rates

10/100Mbps for Half-Duplex mode
20/200Mbps for Full-Duplex mode

LED Indicator

Link/Act

Flow Control

IEEE 802.3x Flow Control (Full-Duplex)

Certification

CE, FCC, RoHS

Package Contents

Network Adapter
Resource CD
Quick Installation Guide

System Requirements

Win 98SE/Me/NT/2000/XP/Vista/7,Linux/Novell Netware

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
