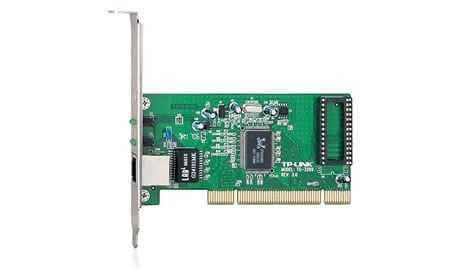

TP-Link TG-3269 Gigabit PCI Network Adapter

tandards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
CSMA/CD, TCP/IP, PCI Revision 2.1/2.2

Interface

32-bit PCI
1 10/100/1000Mbps RJ45 port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

Data Rates

10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode

LED Indicator

1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act, Duplex

Flow Control

IEEE 802.3x Flow Control (Full-Duplex)

Certification

CE, FCC, RoHS

Package Contents

Network Adapter
Resource CD
Quick Installation Guide

System Requirements

Me/NT/2000/XP/Vista/7,Linux/Novell Netware

Environment

Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
