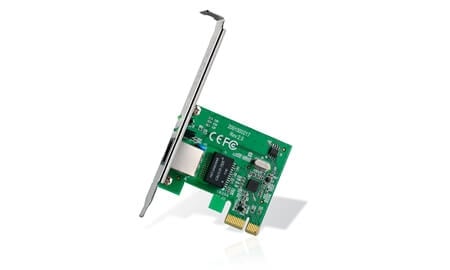

TP-Link TG-3468 Gigabit PCI Express Network Adapter

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface

32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

Data Rates

10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode

LED Indicator

1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control

IEEE 802.3x Flow Control (Full-Duplex)

Certification

CE, FCC, RoHS

Package Contents

Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide

System Requirements

Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
