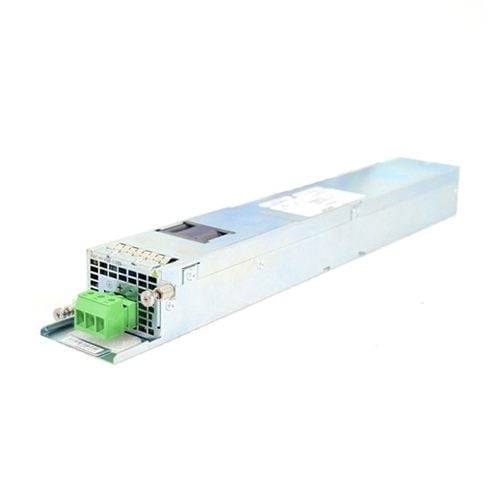

Cisco ASR1001-PWR-DC Power Supply
- SKU: ASR-1001-PWR-DC
Actual Stock & Price Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW Power Supplies for the Cisco ASR 1001-DC Router Each Cisco ASR 1001-DC Router power supply provides 250 W of output power. The power supplies are used in a 1 + 1 redundant configuration. There is no input switch on the faceplate of the... See More
PRODUCT OVERVIEW
Power Supplies for the Cisco ASR 1001-DC Router
Each Cisco ASR 1001-DC Router power supply provides 250 W of output power. The power supplies are used in a 1 + 1 redundant configuration. There is no input switch on the faceplate of the power supplies. A power supply is switched from Standby to On by way of a system chassis STANDBY/ON switch. When facing the rear of the chassis, power supply slot 0 (PS0) is to the left (next to the power supply standby switch) and power supply slot 1(PS1) is to the right.
Cisco ASR-1001-PWR-DC Router Power Supplies
The Cisco ASR-1001-PWR-DC Router supports AC and DC power supply options. The modular chassis configurations support the installation of two power supplies for redundancy. When an external power supply fails or is removed, the other power supply provides power requirements for the chassis. This allows you to hot-swap the power supply without impacting the functionality of the router.
FEATURES
- Power supply - hot-plug / redundant - plug-in module
- -48 V Input Voltage
- DC -40.5 to -75 V Input Voltage Range
- 3 pin terminal block Input Connectors
- Designed for Cisco ASR 1001, 1001 VPN and Firewall Bundle
