SamsungVideo WallsSKU VM55B-U / LH55VMBUBGBXGO

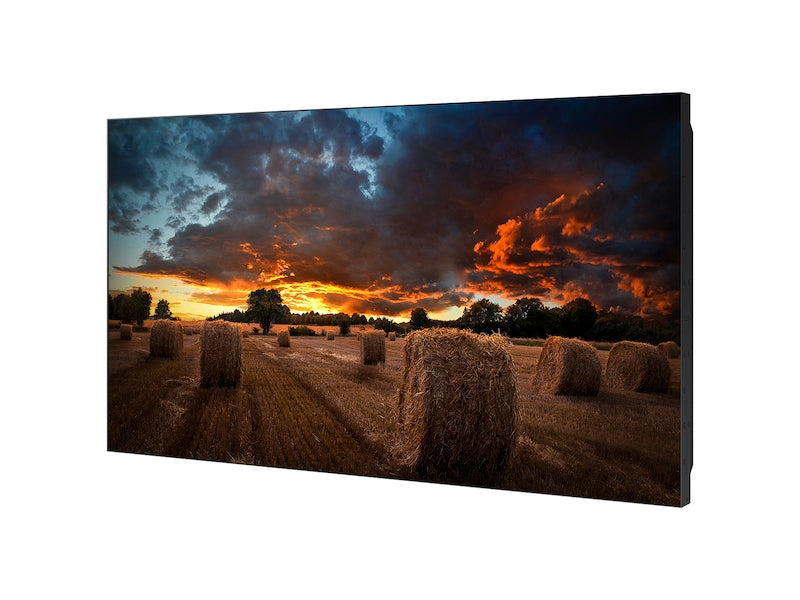

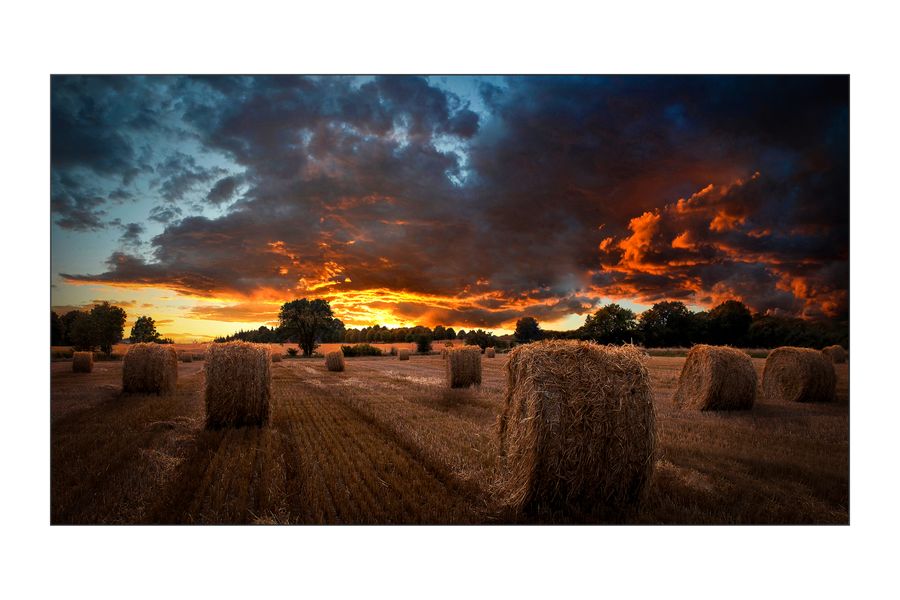

Samsung VMB-U Series 55" Video Wall Display – VM55B-U / LH55VMBUBGBXGO
The Samsung VMB-U Series 55" Video Wall Display – VM55B-U / LH55VMBUBGBXGO is a video wall available in the UAE from Procure.ae.
The Samsung VMB-U Series 55" Video Wall Display – VM55B-U / LH55VMBUBGBXGO is engineered to deliver an immersive visual experience and superior performance for commercial spaces. With its ultra-narrow bezels, this video wall display ensures seamless integration and a captivating, uninterrupted view. The 55-inch screen boasts crisp Full HD resolution, providing vibrant colors and sharp details for dynamic presentations or advertising.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Weight
21.2 kg
- Ultra-Narrow Bezel
- Full HD Resolution
- High Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-Narrow Bezel
Minimizes gaps between displays for a virtually seamless viewing experience.
02
Full HD Resolution
Delivers sharp, vibrant images with 1920 x 1080 pixels for professional presentations.
03
High Brightness
Maintains clear visibility even in well-lit environments, ideal for public and retail spaces.
04
24/7 Operation
Built for continuous use, perfect for mission-critical applications.
05
Advanced Color Calibration
Ensures uniform color and brightness across all screens in the video wall.
06
Multiple Connectivity Options
Includes HDMI, DisplayPort, and DVI for versatile device compatibility.
07
Easy Installation
Lightweight design with VESA mount compatibility for quick and secure setup.
08
Energy Efficient
Engineered for low power consumption without compromising performance.
Specifications
28 specificationsGeneral
Key FeaturesRazor Narrow Bezel, ACM Support (Advanced Color Management), Temperature Sensor, Video Wall Daisy Chain (10×10), DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP support), Clock Battery (168 hrs Clock Keeping), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Button Lock, Smart F/W update, IP5X
What's in the BoxQuick Setup Guide, Warranty Card, DP cable, Stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR
Display
Bezel Size2.25 mm (T/L), 1.25 mm (R/B)
Brightness500 nits
Contrast Ratio1,200:1
OrientationPortrait / Landscape
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio In3.5 mm audio in
Audio Out3.5 mm audio out
DisplayPortDisplayPort 1.2
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Serial PortRS-232 × 1
USB PortsUSB × 1
Power
Power Consumption220 W
Standby Power< 0.5 W
Physical
Dimensions1213.5 x 684.3 x 73.1 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions1398 x 844 x 257 mm
Shipping Weight28.8 kg
VESA Mount600 x 400 mm
Weight21.2 kg
Downloads
Manufacturer documents for the Samsung VMB-U Series 55" Video Wall Display – VM55B-U / LH55VMBUBGBXGO — datasheets, manuals, drawings and certificates.
- Quick start guide – Samsung VHB-E Extreme Narrow Bezel Video Wall / VM55B-U Ultra Narrow Bezel Video Wall / VMB-E Extreme Narrow Bezel Video Wall
- Quick start guide – VM55B-U Ultra Narrow Bezel Video Wall
- User manual – Samsung VHB-E Extreme Narrow Bezel Video Wall / VM55B-U Ultra Narrow Bezel Video Wall / VMB-E Extreme Narrow Bezel Video Wall
- User manual – Samsung VHB-E Extreme Narrow Bezel Video Wall / VM55B-U Ultra Narrow Bezel Video Wall / VMB-E Extreme Narrow Bezel Video Wall (Arabic)
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung video wall used for?
The Samsung VMB-U Series 55" Video Wall Display – VM55B-U / LH55VMBUBGBXGO is engineered to deliver an immersive visual experience and superior performance for commercial spaces.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Can several panels be tiled into one large video wall?
Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
Where are video walls like this typically used?
