DahuaVideo WallsSKU LS550UDM-UF

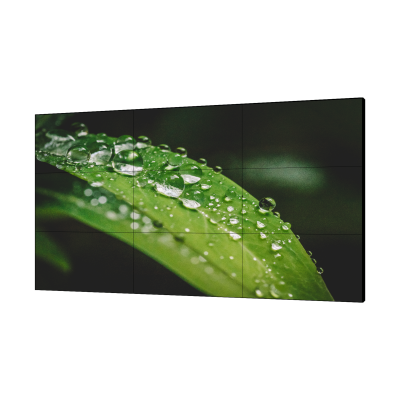

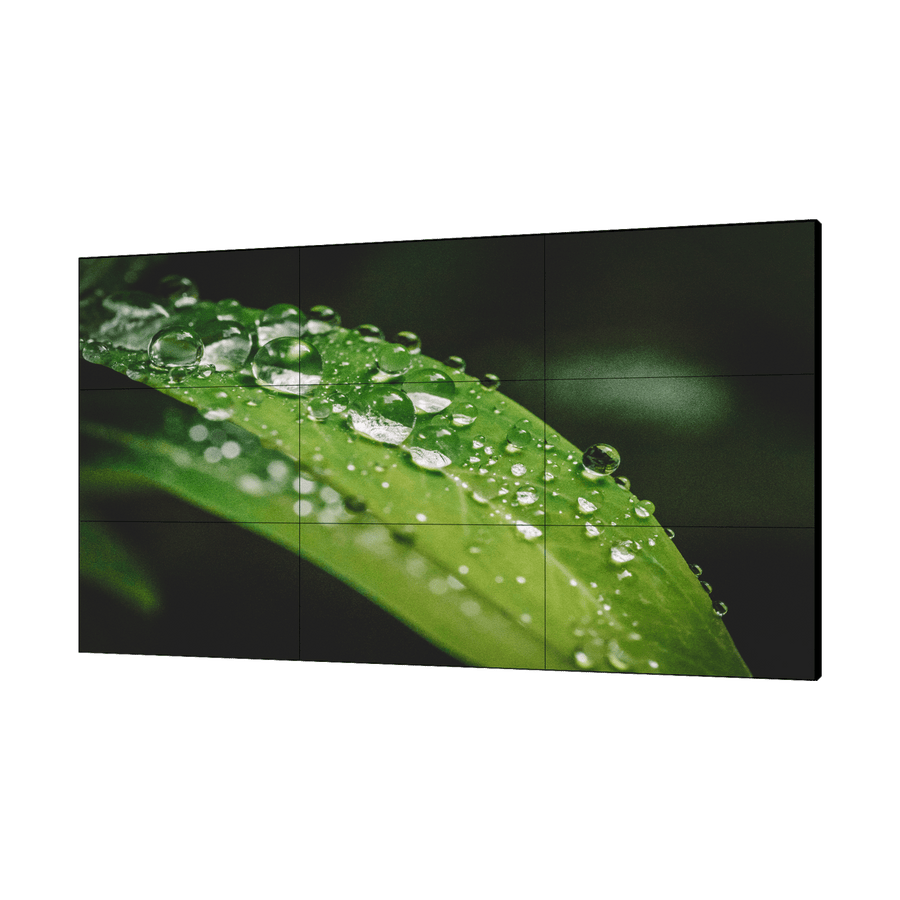

Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550UDM-UF
The Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550UDM-UF is a video wall available in the UAE from Procure.ae.
The Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550UDM-UF is the perfect solution for creating seamless and impactful visual experiences in commercial, corporate, and control room environments. Featuring a super-slim bezel of just 1.7mm, this 55-inch video wall ensures minimal image interruption and delivers a virtually uninterrupted viewing area. With Full HD resolution , users enjoy crisp, vibrant images and exceptional color accuracy for professional-grade presentations and monitoring. Designed for 24/7 operation , the robust build quality guarantees reliable.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall
- Ultra Narrow Bezel (1.7mm)
- 55-Inch Full HD Panel
- 24/7 Operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Narrow Bezel (1.7mm)
Creates a virtually seamless viewing experience with minimal image disruption.
02
55-Inch Full HD Panel
Offers sharp, vibrant visuals with 1920x1080 resolution for crystal-clear content display.
03
24/7 Operation
Engineered for round-the-clock reliability in demanding commercial settings.
04
High Brightness
Delivers vivid images even in brightly lit environments, ensuring excellent visibility.
05
Advanced Color Calibration
Provides consistent and true-to-life color reproduction across all panels.
06
Flexible Mounting Options
Supports various wall mounting solutions for easy integration into any space.
07
Multiple Connectivity Ports
Includes HDMI, DVI, and VGA inputs for versatile compatibility.
08
Energy Efficient Design
Reduces power consumption while maintaining top performance.
Specifications
30 specificationsGeneral
Key FeaturesADS panel, 24/7 operation, ultra-narrow 1.7 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size1.7 mm (panel-to-panel gap)
Brightness500 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,200:1
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort × 1
Connectivity
HDMI InputsHDMI In × 2
InputsVGA, DVI-D, HDMI, DisplayPort, RS-232, Audio, IR
Serial PortRS-232 × 1
VGA InputVGA × 1 (D-sub)
Power
Power Consumption180 W (typical), 195 W (max)
Standby Power< 0.5 W
Physical
Dimensions1212.7 x 683.5 x 121.7 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0°C to 50°C
Shipping Dimensions1360 x 945 x 280 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm, M6
Weight28 kg
Downloads
Manufacturer documents for the Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550UDM-UF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua video wall used for?
The Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550UDM-UF is the perfect solution for creating seamless and impactful visual experiences in commercial, corporate, and control room environments. Featuring a super-slim bezel of just 1.7mm, this 55-inch video wall ensures.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Can several panels be tiled into one large video wall?
Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
