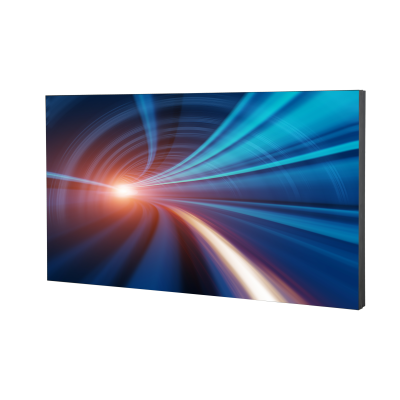

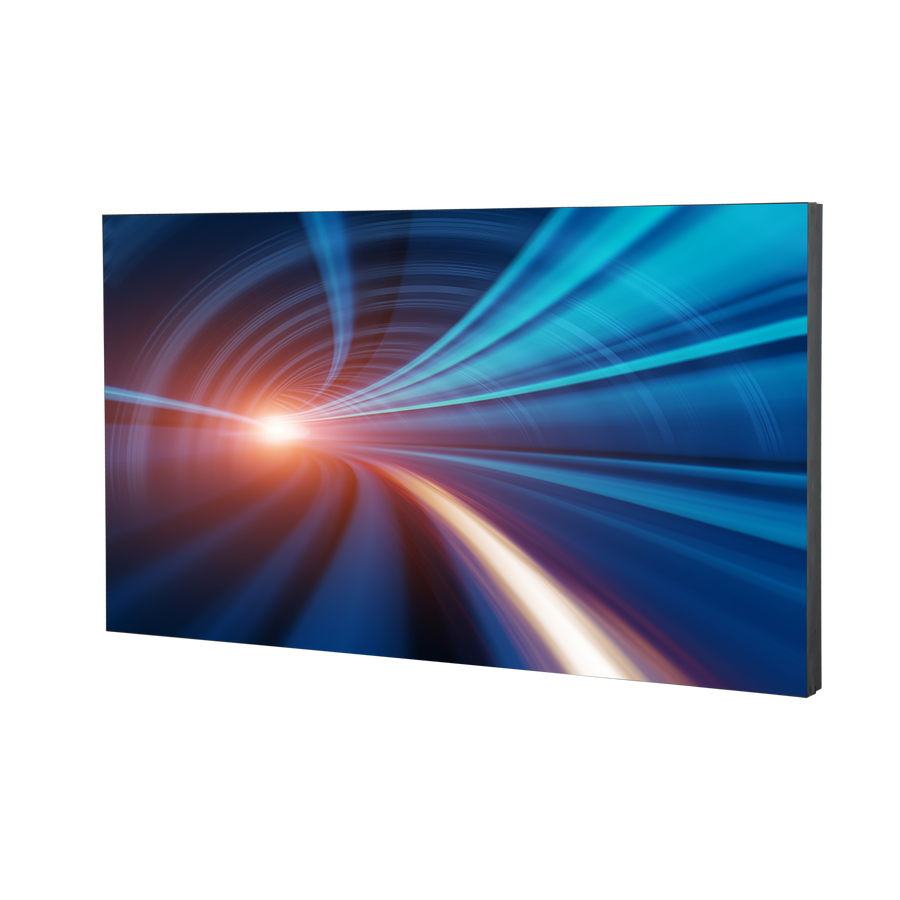

Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 0.88mm) – LS550UEH-EF
The Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 0.88mm) – LS550UEH-EF is a video wall available in the UAE from Procure.ae.
Experience an immersive viewing solution with the Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 0.88mm) – LS550UEH-EF. Engineered for professional video wall installations , this display delivers vibrant Full HD resolution with an ultra-slim 0.88mm bezel for nearly seamless multi-screen setups . Its advanced LED backlighting ensures consistent brightness and color accuracy, making it ideal for control rooms , retail environments , and corporate presentations . The LS550UEH-EF features robust 24/7 operation support , low-power consumption, and versatile connectivity options ,.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Video Wall
- Ultra Narrow Bezel (0.88mm)
- 55-Inch Full HD Display
- LED Backlight Technology
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Narrow Bezel (0.88mm)
Enables virtually seamless multi-panel video wall configurations for immersive visuals.
02
55-Inch Full HD Display
Delivers crisp, detailed images with a resolution of 1920 x 1080 pixels.
03
LED Backlight Technology
Ensures consistent brightness, energy efficiency, and vibrant color reproduction.
04
24/7 Operation Support
Designed for continuous, around-the-clock operation in demanding environments.
05
Wide Viewing Angles
Maintains image clarity and color accuracy from virtually any perspective.
06
Multiple Connectivity Options
Features HDMI, DisplayPort, DVI, and VGA inputs for versatile integration.
07
Remote Management
Allows for easy control and monitoring of display settings via network interfaces.
08
Robust Build Quality
Engineered for durability and reliability in commercial settings.
Specifications
31 specificationsGeneral
Key FeaturesADS panel, 24/7 operation, ultra-narrow 0.88 mm bezel-to-bezel, anti-glare high-brightness surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size0.88 mm (panel-to-panel gap)
Brightness700 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,200:1
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
Connectivity
HDMI InputsHDMI In × 1
HDMI OutputsHDMI Out × 2
InputsCVBS (BNC), VGA, DVI-D, HDMI, RS-232, USB, Audio, IR
Serial PortRS-232 × 1
USB PortsUSB × 2
VGA InputVGA × 1
Power
Power Consumption215 W (typical), 230 W (max)
Standby Power< 0.5 W
Physical
Dimensions1210.5 x 681.3 x 115.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Shipping Dimensions1360 x 945 x 280 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm, M6
Weight24.3 kg
Downloads
Manufacturer documents for the Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 0.88mm) – LS550UEH-EF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua video wall used for?
Experience an immersive viewing solution with the Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 0.88mm) – LS550UEH-EF. Engineered for professional video wall installations , this display delivers vibrant Full HD resolution with an ultra-slim 0.88mm bezel for nearly seamless.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Can several panels be tiled into one large video wall?
Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
Where are video walls like this typically used?
