DahuaVideo WallsSKU LS490UCM-UF

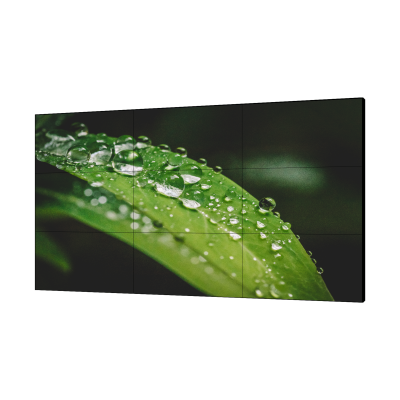

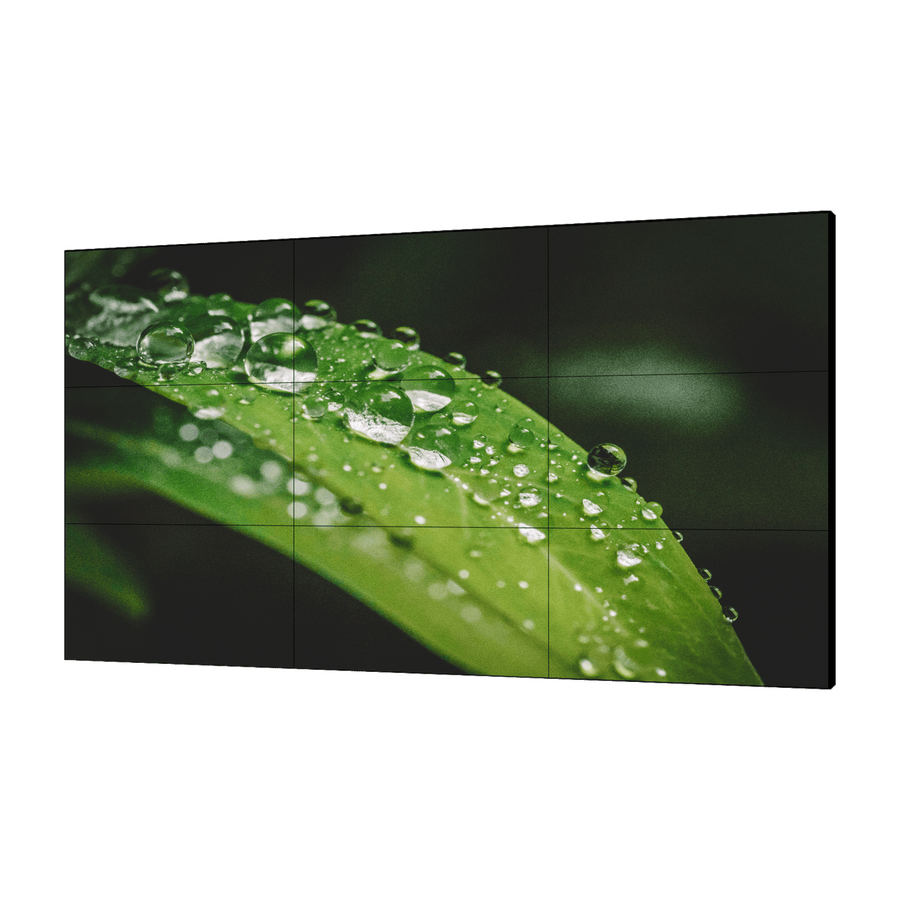

Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS490UCM-UF
The Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS490UCM-UF is a video wall available in the UAE from Procure.ae.
The Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) , model LS490UCM-UF , is engineered to deliver exceptional visual performance for demanding professional environments. With its full HD resolution and ultra-narrow 3.5mm bezel , this advanced video wall display is perfect for control rooms , retail signage , corporate lobbies , and public venues . The Dahua video wall ensures seamless multi-screen integration and delivers vibrant, consistent images with minimal bezel interference for an immersive viewing experience. Designed for 24/7 operation, this commercial display.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall
- Ultra Narrow 3.5mm Bezel
- 49-Inch Full HD Panel
- High Brightness Output
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Narrow 3.5mm Bezel
Offers nearly seamless video wall configurations for a striking visual effect.
02
49-Inch Full HD Panel
Delivers sharp, vibrant 1920x1080 resolution for detailed imagery.
03
High Brightness Output
Ensures clear, vivid visuals even in brightly lit environments.
04
24/7 Operation
Built for continuous commercial use with robust, durable components.
05
Advanced Color Calibration
Maintains uniform color and brightness across multiple panels.
06
Flexible Mounting Options
Supports both landscape and portrait installation for versatile placements.
07
Wide Viewing Angles
Provides consistent picture quality from any perspective.
08
Multiple Connectivity Ports
Includes HDMI, DVI, VGA, and DisplayPort inputs for broad compatibility.
Specifications
29 specificationsGeneral
Key FeaturesADS panel, 24/7 operation, ultra-narrow 3.5 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size3.5 mm (panel-to-panel gap)
Brightness500 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,200:1
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size49 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort × 1
Connectivity
HDMI InputsHDMI In × 2
Serial PortRS-232 × 1
VGA InputVGA × 1 (D-sub)
Power
Power Consumption135 W (typical), 155 W (max)
Standby Power< 0.5 W
Physical
Dimensions1078.4 x 608.5 x 121.1 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions1265 x 850 x 270 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm, M6
Weight19.5 kg
Downloads
Manufacturer documents for the Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS490UCM-UF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua video wall used for?
The Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) , model LS490UCM-UF , is engineered to deliver exceptional visual performance for demanding professional environments. With its full HD resolution and ultra-narrow 3.5mm bezel , this advanced video wall display is perfect for.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Can several panels be tiled into one large video wall?
Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
Where are video walls like this typically used?
