DahuaVideo WallsSKU LS490UCM-EF

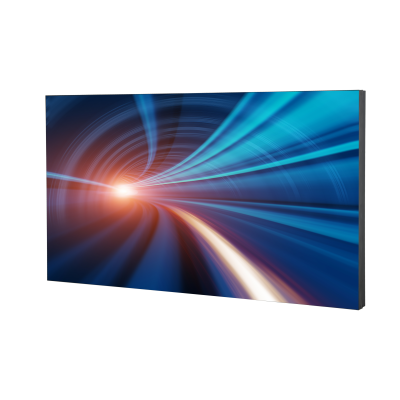

Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS490UCM-EF
The Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS490UCM-EF is a video wall available in the UAE from Procure.ae.
The Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS490UCM-EF is designed for professional environments that demand high-definition display and seamless video wall integration . With its ultra-narrow bezel of just 3.5mm, this large format display ensures minimal interruption between screens.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall
- Ultra Narrow Bezel (3.5mm)
- 49’’ FHD Display
- Wide Viewing Angle
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Narrow Bezel (3.5mm)
Creates a nearly seamless video wall appearance for uninterrupted visuals.
02
49’’ FHD Display
Offers 1920x1080 full high-definition clarity for detailed content reproduction.
03
Wide Viewing Angle
Ensures excellent image quality from virtually any position in the room.
04
24/7 Operation
Engineered for continuous use in demanding commercial environments.
05
Advanced Panel Technology
Delivers vivid colors and sharp contrast for impactful presentations.
06
Flexible Mounting Options
Supports various installation configurations for custom video wall designs.
07
Energy Efficient
Low power consumption without compromising on performance or brightness.
08
Reliable Connectivity
Multiple input ports including HDMI, DVI, and VGA for easy integration.
Specifications
31 specificationsGeneral
Key FeaturesADS panel, 24/7 operation, ultra-narrow 3.5 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size3.5 mm (panel-to-panel gap)
Brightness500 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,200:1
OrientationPortrait / Landscape
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size49 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
Connectivity
HDMI InputsHDMI In × 1
HDMI OutputsHDMI Out × 2
Serial PortRS-232 × 1
USB PortsUSB × 2
VGA InputVGA × 1
Power
Power Consumption135 W (typical), 155 W (max)
Standby Power< 0.5 W
Physical
Dimensions1078.4 x 608.4 x 120.8 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions1265 x 850 x 270 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm
Weight19.5 kg
Downloads
Manufacturer documents for the Dahua 49’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS490UCM-EF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua video wall used for?
It is an ultra-narrow-bezel FHD video wall display for professional environments.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support.

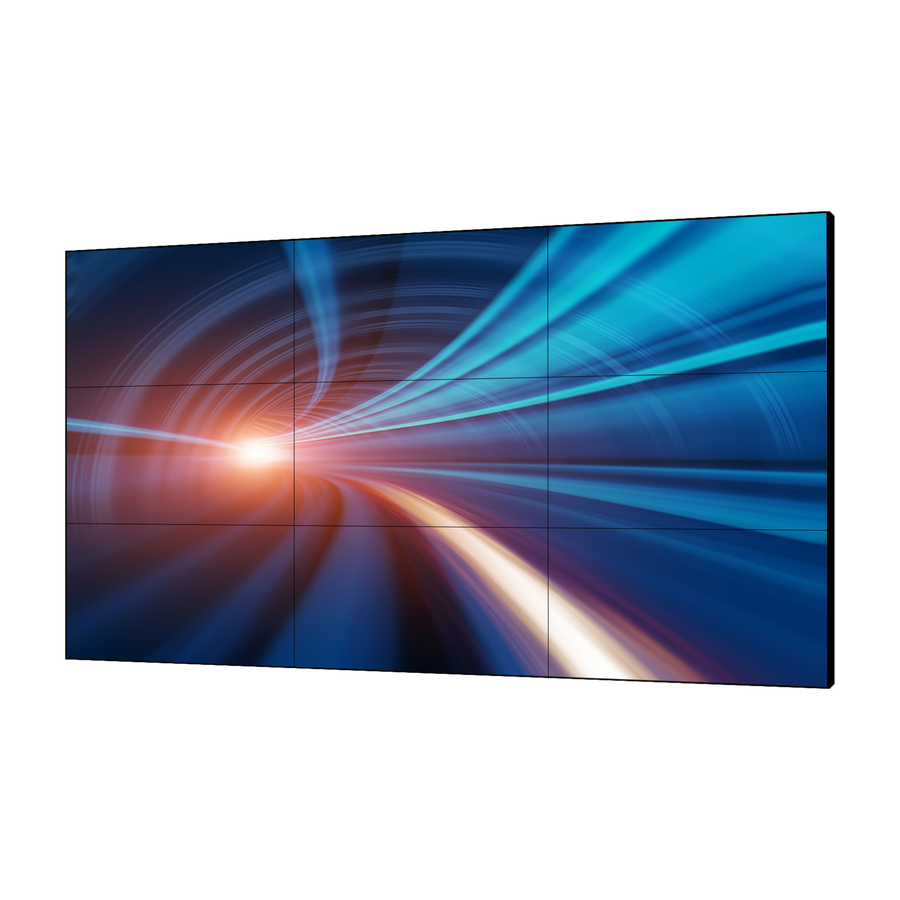

Can several panels be tiled into one large video wall?
Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
Where are video walls like this typically used?
