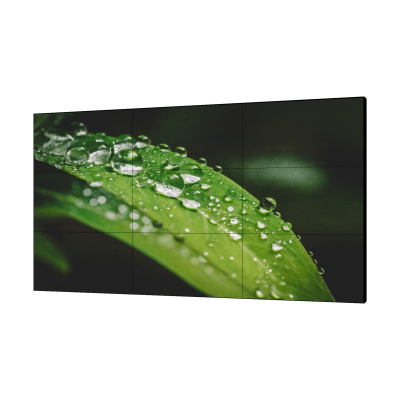

DahuaVideo WallsSKU LS460UDM-UF

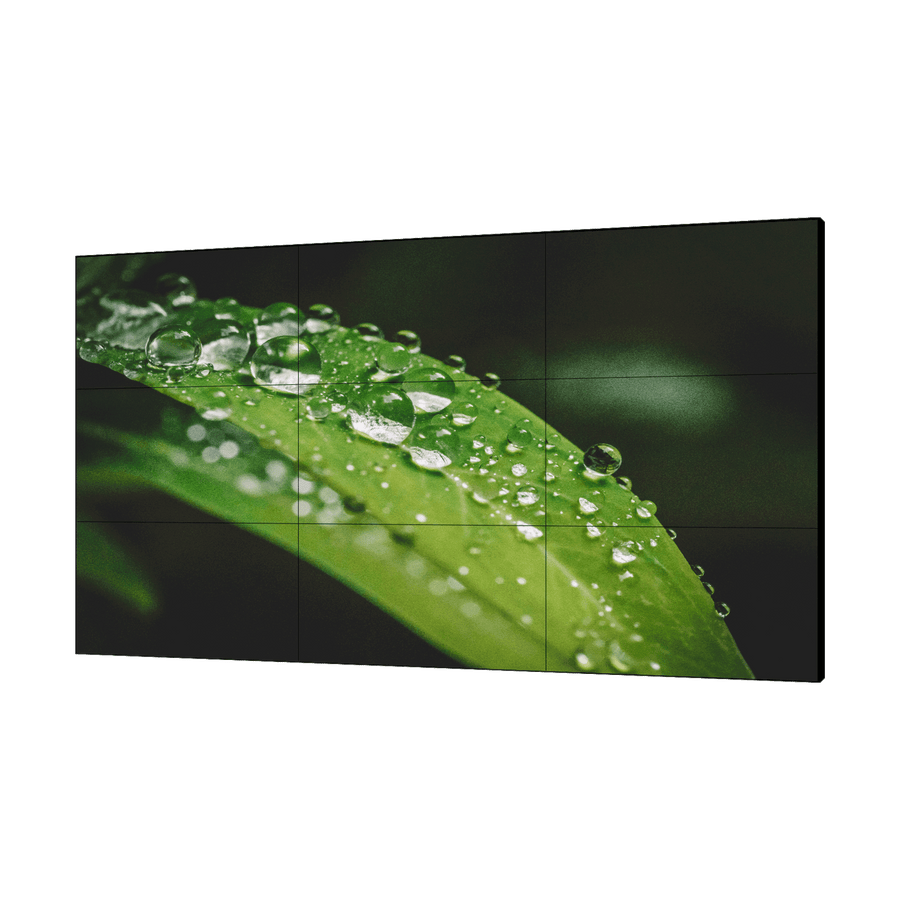

Dahua 46'' FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS460UDM-UF
The Dahua 46'' FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS460UDM-UF is a video wall available in the UAE from Procure.ae.
The Dahua 46'' FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS460UDM-UF is the ideal solution for organizations seeking to create an immersive and seamless video wall experience. Featuring a stunning Full HD resolution and an ultra-slim 1.7mm bezel , this display unit ensures minimal interruption between screens for a virtually continuous visual presentation. With advanced LED backlighting and superior color accuracy , your digital signage or control room displays will be vibrant and captivating. The LS460UDM-UF is designed for easy installation and reliable 24/7 operation, making.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
46 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall
- Ultra Narrow 1.7mm Bezel
- 46-Inch Full HD Display
- LED Backlighting
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Narrow 1.7mm Bezel
Achieve seamless multi-screen setups with minimal visual gaps for a continuous viewing experience.
02
46-Inch Full HD Display
Enjoy vibrant 1920x1080 resolution for crisp, detailed visuals on every panel.
03
LED Backlighting
Energy-efficient and delivers consistent brightness across the entire video wall.
04
24/7 Reliable Operation
Built for continuous use in demanding environments like control rooms or public venues.
05
Advanced Color Calibration
Ensures uniform color and brightness across all connected panels.
06
Flexible Mounting Options
Compatible with VESA mounts and wall brackets for easy installation.
07
Multiple Connectivity Ports
Supports HDMI, DVI, VGA, and DisplayPort inputs for versatile integration.
08
Wide Viewing Angles
Offers clear, distortion-free images from almost any position in the room.
Specifications
29 specificationsGeneral
Key FeaturesADS panel, 24/7 operation, ultra-narrow 1.7 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size1.7 mm (panel-to-panel gap)
Brightness500 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,200:1
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size46 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort (In × 1, Out × 1)
Connectivity
HDMI InputsHDMI In × 2
Serial PortRS-232 × 1
VGA InputVGA × 1 (D-sub)
Power
Power Consumption120 W (typical), 140 W (max)
Standby Power< 0.5 W
Physical
Dimensions1021.2 x 575.8 x 122.7 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0°C to 50°C
Shipping Dimensions1200 x 815 x 265 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm, M6
Weight17.9 kg
Downloads
Manufacturer documents for the Dahua 46'' FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS460UDM-UF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua video wall used for?
The Dahua 46'' FHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS460UDM-UF is the ideal solution for organizations seeking to create an immersive and seamless video wall experience. Featuring a stunning Full HD resolution and an ultra-slim 1.7mm bezel , this display unit ensures minimal.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Can several panels be tiled into one large video wall?
Yes — these panels use ultra-narrow bezels so they combine seamlessly into a single large display.
Is it built for continuous 24/7 operation?
Yes — video wall panels are rated for demanding, round-the-clock commercial use.
Where are video walls like this typically used?
