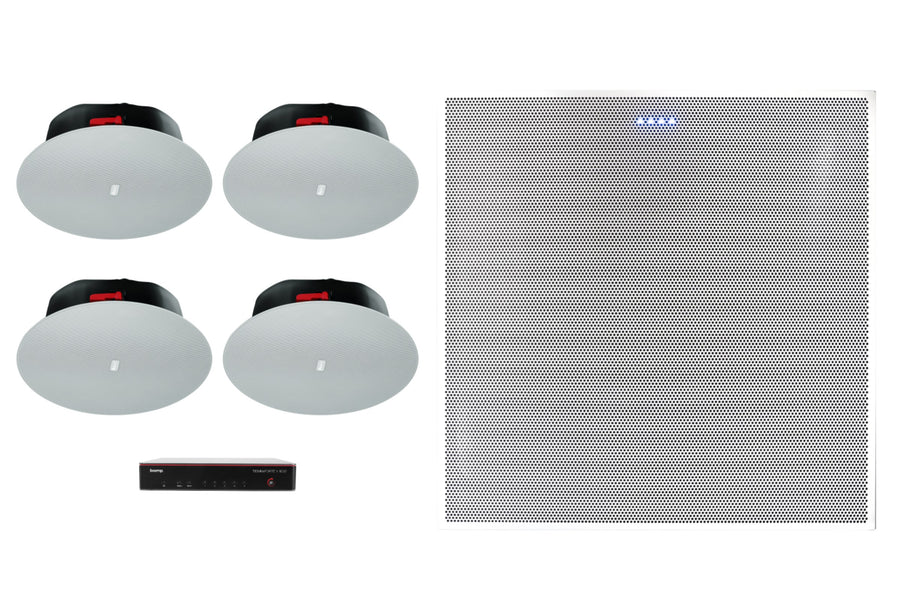

Biamp MRB-L-X1600-BMA360DI-CIC6 large meeting room bundle with BMA 360D-I ceiling microphone arrayBiamp
Meeting Room SolutionsSKU MRB-L-X1600-BMA360DI-CIC6

Biamp TesiraFORTÉ X 1600 Large Meeting Room Bundle – MRB-L-X1600-BMA360DI-CIC6

The Biamp MRB-L-X1600-BMA360DI-CIC6 is a complete large meeting room bundle built around the TesiraFORTÉ X 1600 DSP, a BMA 360D-I ceiling microphone array and four Desono C-IC6 ceiling loudspeakers. It suits large conference rooms that need full-room voice pickup and echo cancellation. Procure.ae supplies this Biamp video conferencing system across the UAE, with installation support.

The TesiraFORTÉ X 1600 provides sixteen channels of acoustic echo cancellation and supports the additional inputs a larger room requires. The BMA 360D-I array uses ultra-wideband, frequency-invariant beamforming with up to 12 configurable beams, so voice pickup stays consistent wherever participants sit. The array is designed for 600 mm x 600 mm ceiling tiles. Power and cabling are included: an EasyConnect POE-90W power unit and a plenum-rated CAT5e cable kit.

This bundle fits large boardrooms, conference halls and training rooms where the microphone array sits in a standard ceiling grid. The four Desono C-IC6 loudspeakers extend speech-optimized audio across a larger room footprint. The manufacturer's specifications do not state a list of supported conferencing platforms for this bundle, so Procure.ae can confirm platform compatibility before you order.

Type
Meeting Room Bundle
  • Complete room bundle
  • Full-fidelity voice capture
  • Standard ceiling grid mount
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Complete room bundle
includes the TesiraFORTÉ X 1600 processor, BMA 360D-I ceiling microphone array and four Desono C-IC6 ceiling loudspeakers.
02
Full-fidelity voice capture
ultra-wideband, frequency-invariant beamforming with up to 12 configurable beams.
03
Standard ceiling grid mount
the microphone array is designed for 600 mm x 600 mm ceiling tiles.
04
Acoustic echo cancellation
sixteen channels of acoustic echo cancellation on the TesiraFORTÉ X 1600 DSP.
05
Ceiling loudspeakers
four Desono C-IC6 units deliver speech-optimized audio across a large room.
06
Power and cabling included
EasyConnect POE-90W power unit and a plenum-rated CAT5e cable kit.

Specifications

8 specifications
General
Key FeaturesUltra-wideband beamforming, up to 12 beams, 16-channel acoustic echo cancellation, 600 x 600 mm ceiling tile mount, POE-90W power, plenum-rated CAT5e cabling
ModelMRB-L-X1600-BMA360DI-CIC6
TypeMeeting Room Bundle
What's in the BoxTesiraFORTÉ X 1600 processor, BMA 360D-I microphone array, 4 Desono C-IC6 ceiling loudspeakers, EasyConnect POE-90W, plenum-rated CAT5e cable kit
Audio
Microphone TypeCeiling microphone array (BMA 360D-I)
Speaker TypeDesono C-IC6 ceiling loudspeakers (4)
Connectivity
PoEEasyConnect POE-90W
Physical
MountingCeiling (600 x 600 mm tile)

Downloads

Manufacturer documents for the Biamp TesiraFORTÉ X 1600 Large Meeting Room Bundle – MRB-L-X1600-BMA360DI-CIC6 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is included in the Biamp MRB-L-X1600-BMA360DI-CIC6?
The bundle includes a TesiraFORTÉ X 1600 processor, a BMA 360D-I ceiling microphone array, four Desono C-IC6 ceiling loudspeakers, an EasyConnect POE-90W power unit and a plenum-rated CAT5e cable kit. The manufacturer presents these as the complete room package, so one order covers the core audio chain for a large meeting room.
Does the BMA 360D-I fit a standard ceiling grid?
Yes. The BMA 360D-I is designed for 600 mm x 600 mm ceiling tiles, so the microphone array installs into a standard grid layout. The bundle includes a plenum-rated CAT5e cable kit for the connection.
What room size is this bundle designed for?
The bundle is designed for large meeting rooms. The TesiraFORTÉ X 1600 supports the additional inputs a larger room needs, and the BMA 360D-I can be configured with up to 12 beams to cover seating areas across the room.
Does the bundle include power for the microphone array?
Yes. The bundle includes an EasyConnect POE-90W power unit for power delivery over the included plenum-rated CAT5e cabling, so the room needs no separate power run for the array. Procure.ae can confirm the power budget for your room.
