BiampMeeting Room SolutionsSKU TesiraFORTÉ CI

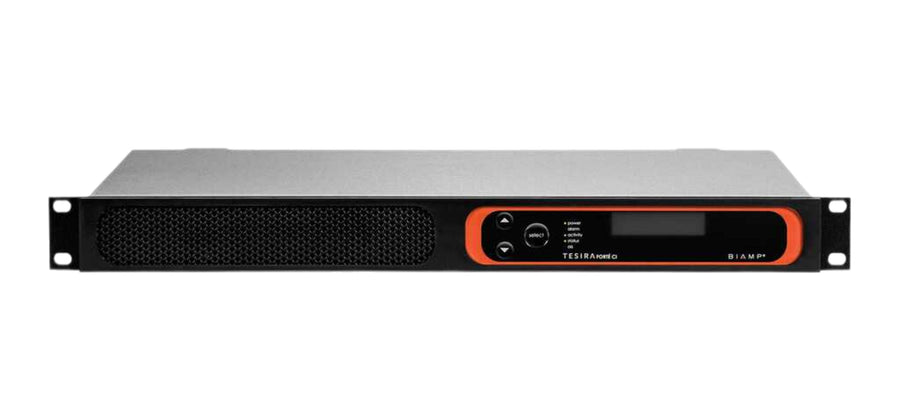

Biamp TesiraFORTÉ CI Audio DSP
The Biamp TesiraFORTÉ CI is a fixed I/O conferencing audio DSP with 12 AEC-enabled mic/line inputs and 8 mic/line outputs. It has Gigabit Ethernet, RS-232 and GPIO ports, and Tesira software control for routing, mixing and EQ. It suits conferencing environments, and Procure.ae supplies it across the UAE.
The TesiraFORTÉ CI is a fixed I/O digital signal processor for conferencing. It includes 12 AEC-enabled mic/line inputs, which the manufacturer describes as echo-free audio for conferencing environments, and 8 mic/line outputs for loudspeakers, recording feeds, overflow rooms or assistive listening systems. Input gain runs from 0 to 66 dB in 6 dB steps, and frequency response is 20 Hz to 20 kHz at +0.25 dB / -0.5 dB. Tesira software gives full control over signal routing, mixing, EQ, filtering, dynamics and delay.
The Gigabit Ethernet port enables configuration, control and network communication. RS-232 and GPIO ports connect the unit to control processors, automation platforms and third-party room devices. A two-line OLED display with capacitive-touch navigation shows system status and diagnostics. The internal universal power supply is designed for international voltage standards, and the unit is TAA compliant.
Type
Audio DSP
Weight
3.63 kg
- AEC Inputs
- Zone Outputs
- Gigabit Ethernet
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
AEC Inputs
12 AEC-enabled mic/line inputs for echo-free conversations.
02
Zone Outputs
8 mic/line outputs for loudspeakers, recording feeds and overflow rooms.
03
Gigabit Ethernet
Fast configuration, control and network communication.
04
External Control
RS-232 and GPIO ports for control processors and room devices.
05
OLED Touch Navigation
Two-line display with capacitive-touch navigation for diagnostics.
06
Tesira Software Control
Routing, mixing, EQ, filtering, dynamics and delay.
07
Universal Power
Internal universal power supply for installations across regions.
08
TAA Compliant
TAA compliant, with a 5-year warranty stated by the manufacturer.
Specifications
17 specificationsGeneral
Key Features12 AEC-enabled mic/line inputs, 8 mic/line outputs, Gigabit Ethernet, RS-232, GPIO, OLED touch navigation, Tesira software DSP, internal universal power supply, TAA compliant
ModelTesiraFORTÉ CI
TypeAudio DSP
Display
DisplayTwo-line OLED with capacitive-touch navigation
Audio
Dynamic Range> 108 dB (0 dB gain)
Frequency Response20 Hz to 20 kHz, +0.25 dB / -0.5 dB
Impedance8 kΩ (balanced)
Phantom Power+48 V DC (7 mA per input)
Connectivity
ConnectivityGigabit Ethernet, RS-232, GPIO
Input Voltage100–240 V AC, 50/60 Hz (internal universal power supply)
Inputs12 mic/line inputs with AEC
Outputs8 mic/line outputs
Power
Power Consumption< 35 W
Physical
Operating Temperature0 to 40 °C
Weight3.63 kg
Compliance
CertificationsTAA, FCC Part 15B, CE, UL/C-UL, RCM, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp TesiraFORTÉ CI Audio DSP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Biamp TesiraFORTÉ CI?
It is a fixed I/O conferencing audio DSP with 12 AEC-enabled mic/line inputs, 8 mic/line outputs and Tesira software control. It is a fixed I/O design with 12 analog inputs, 8 analog outputs and 8 channels of configurable USB audio.
Does it include echo cancellation?
Yes. The manufacturer states that all 12 mic/line inputs have acoustic echo cancellation (AEC) for echo-free conferencing audio. The AEC covers all 12 inputs, which suits conferencing applications with several microphones.
Does it support AVB networking?
The manufacturer's specifications for the TesiraFORTÉ CI do not state AVB networking. The TesiraFORTÉ AVB CI is the AVB model in this range. The Tesira software and Gigabit Ethernet port still handle configuration and network communication.
Can it be integrated with control systems?
Yes. RS-232 and GPIO ports, along with Gigabit Ethernet, allow integration with control processors, automation platforms and third-party room devices. The two-line OLED display with capacitive-touch navigation gives quick access to status and diagnostics.
Is it suitable for international use?
Yes. The internal universal power supply is designed for international voltage standards, so it suits installations across regions. The unit is TAA compliant and carries the manufacturer's 5-year warranty, with CE, UL/C-UL and RCM certifications listed.
