Biamp TesiraFORTÉ AVB VT4 Microsoft Teams audio DSP, model 920-00452-00001Biamp
Meeting Room SolutionsSKU TesiraFORTÉ AVB VT4

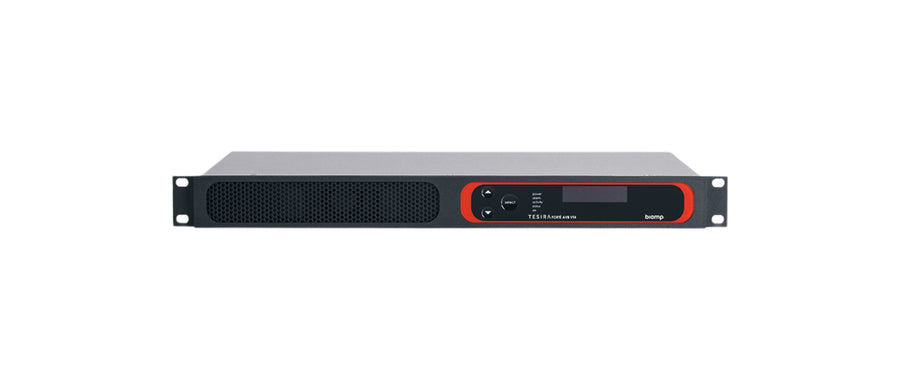

Biamp TesiraFORTÉ AVB VT4 Teams Audio DSP

The Biamp TesiraFORTÉ AVB VT4 is a Microsoft Teams Certified audio DSP with SIP VoIP and FXO telephony. It has 4 AEC-enabled mic/line inputs, 4 mic/line outputs and AVB networking of up to 128 × 128 channels. It suits small to mid-sized meeting rooms, and Procure.ae supplies it across the UAE.

The TesiraFORTÉ AVB VT4 is a compact digital signal processor for small to mid-sized collaboration spaces. It supports SIP VoIP and FXO telephony, and it has four mic/line inputs with acoustic echo cancellation (AEC) and four mic/line outputs for speakers, assistive listening, overflow feeds or program playback. It supports 128 × 128 channels of AVB. Input gain runs from 0 to 66 dB in 6 dB steps, and dynamic range is above 108 dB at 0 dB gain.

The manufacturer lists the TesiraFORTÉ AVB VT4 as Microsoft Teams Certified and as Microsoft Certified in its certified solutions data. Gigabit Ethernet, RS-232 and GPIO ports connect it to room control systems and third-party devices, and a two-line OLED display with capacitive-touch navigation shows device status. The unit has an internal universal power supply and is TAA compliant.

Type
Audio DSP
Weight
3.63 kg
  • Microsoft Teams Certified
  • VoIP and Telephony
  • AEC Inputs
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Microsoft Teams Certified
Listed by the manufacturer as Microsoft Teams Certified.
02
VoIP and Telephony
SIP VoIP and standard FXO telephony support.
03
AEC Inputs
Four mic/line inputs with acoustic echo cancellation.
04
Four Outputs
Four mic/line outputs for speakers, overflow feeds or program playback.
05
AVB Networking
128 × 128 channels of AVB for networked audio.
06
Gigabit Ethernet
Network connectivity with room control and third-party devices.
07
Universal Power
Internal universal power supply for global installations.
08
Workplace Ready
Biamp Workplace Ready, TAA compliant, with a 5-year warranty.

Specifications

19 specifications
General
Key FeaturesMicrosoft Teams Certified, SIP VoIP and FXO telephony, 4 AEC mic/line inputs, 4 mic/line outputs, 128 × 128 AVB channels, Gigabit Ethernet, RS-232, GPIO, Biamp Workplace Ready, TAA compliant
ModelTesiraFORTÉ AVB VT4
TypeAudio DSP
Display
DisplayTwo-line OLED with capacitive-touch navigation
Audio
Channels128 × 128 AVB channels
Dynamic Range> 108 dB (0 dB gain)
Frequency Response20 Hz to 20 kHz, +0.25 dB / -0.5 dB
Impedance8 kΩ (balanced)
Phantom Power+48 V DC (7 mA per input)
Connectivity
ConnectivityGigabit Ethernet, RS-232, GPIO
Input Voltage100–240 V AC, 50/60 Hz (internal universal power supply)
Inputs4 mic/line inputs with AEC
Outputs4 mic/line outputs
ProtocolsSIP VoIP, FXO telephony
Power
Power Consumption< 35 W
Physical
Operating Temperature0 to 40 °C
Weight3.63 kg
Compliance
CertificationsMicrosoft Teams Certified, Microsoft Certified, TAA, FCC Part 15B, FCC Part 68, Industry Canada CS-03, CE, UL/C-UL, RCM, RoHS
Warranty5 years

Downloads

Manufacturer documents for the Biamp TesiraFORTÉ AVB VT4 Teams Audio DSP — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the Biamp TesiraFORTÉ AVB VT4?
It is a Microsoft Teams Certified audio DSP with SIP VoIP and FXO telephony, 4 AEC-enabled mic/line inputs, 4 mic/line outputs and 128 × 128 AVB channels. It is designed for small to mid-sized collaboration spaces that combine VoIP and conferencing audio.
Is it Microsoft Teams certified?
Yes. The manufacturer lists the TesiraFORTÉ AVB VT4 as Microsoft Teams Certified and as Microsoft Certified in its certified solutions data. Its certifications also include TAA, FCC Part 15B, FCC Part 68, CE, UL/C-UL, RCM and RoHS.
How many inputs and outputs does it have?
It has four mic/line inputs with acoustic echo cancellation and four mic/line outputs. The unit is suited to small to mid-sized meeting rooms. Input gain runs from 0 to 66 dB in 6 dB steps, and the unit supports 128 × 128 AVB channels.
Does it support telephony?
Yes. The manufacturer lists both SIP VoIP and standard FXO telephony on the TesiraFORTÉ AVB VT4. It combines SIP VoIP with standard FXO telephony, which suits hybrid communication environments. The manufacturer lists the unit for small to mid-sized collaboration spaces.
Can it integrate with room control?
Yes. Gigabit Ethernet, RS-232 and GPIO ports allow connection to room control systems and third-party devices. The two-line OLED display with capacitive-touch navigation shows device status. Biamp Workplace Ready also supports secure cloud-based monitoring.
Can I buy the TesiraFORTÉ AVB VT4 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
