BiampMeeting Room SolutionsSKU TesiraFORTÉ AVB VT

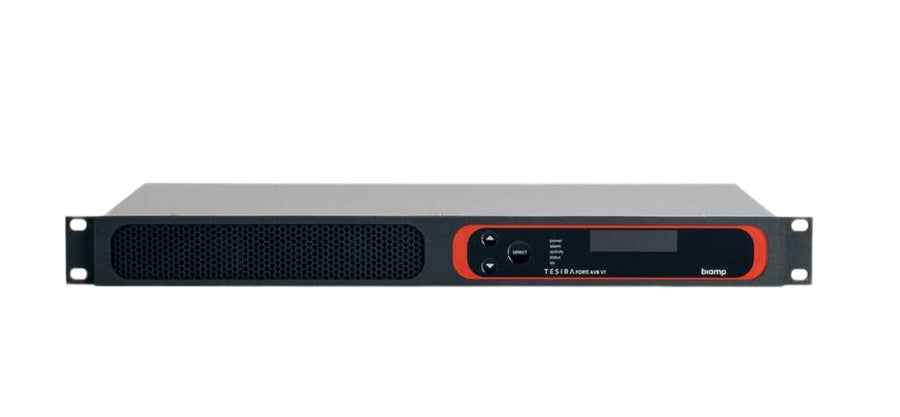

Biamp TesiraFORTÉ AVB VT Audio DSP
The Biamp TesiraFORTÉ AVB VT is a conferencing audio DSP that combines SIP VoIP and FXO telephony with 12 AEC-enabled mic/line inputs. It adds AVB networking of up to 128 × 128 channels and 8 mic/line outputs. It suits hybrid communication rooms, and Procure.ae supplies the TesiraFORTÉ AVB VT across the UAE.
The TesiraFORTÉ AVB VT is a digital signal processor that combines SIP VoIP and standard FXO telephony in one unit. It has 12 mic/line inputs with advanced acoustic echo cancellation (AEC) and 8 mic/line outputs for loudspeakers, recording feeds, overflow rooms or assistive listening systems. It supports 128 × 128 channels of AVB. Input gain runs from 0 to 66 dB in 6 dB steps, and dynamic range is above 108 dB at 0 dB gain.
Gigabit Ethernet, RS-232 and GPIO ports connect the unit to control systems, automation platforms and third-party devices. The two-line OLED display with capacitive-touch navigation shows status and diagnostics. The internal universal power supply accepts a wide input range, and the manufacturer lists the unit as FCC Part 68 and Industry Canada CS-03 certified. Biamp Workplace Ready supports secure cloud-based monitoring.
Type
Audio DSP
Weight
3.63 kg
- VoIP and Telephony
- AEC Inputs
- AVB Networking
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
VoIP and Telephony
SIP VoIP and standard FXO telephony in one DSP.
02
AEC Inputs
12 mic/line inputs with advanced acoustic echo cancellation.
03
AVB Networking
128 × 128 channels of AVB for networked audio systems.
04
Routing Outputs
8 mic/line outputs for speakers, recording feeds and overflow rooms.
05
Gigabit Ethernet
Network connectivity for configuration and third-party integration.
06
External Control
RS-232 and GPIO ports for control systems and room devices.
07
Universal Power
Internal universal power supply for a wide input range.
08
Workplace Ready
Biamp Workplace Ready, TAA compliant, with a 5-year warranty.
Specifications
19 specificationsGeneral
Key FeaturesSIP VoIP and FXO telephony, 128 × 128 AVB channels, 12 AEC mic/line inputs, 8 mic/line outputs, Gigabit Ethernet, RS-232, GPIO, OLED touch navigation, Biamp Workplace Ready, TAA compliant
ModelTesiraFORTÉ AVB VT
TypeAudio DSP
Display
DisplayTwo-line OLED with capacitive-touch navigation
Audio
Channels128 × 128 AVB channels
Dynamic Range> 108 dB (0 dB gain)
Frequency Response20 Hz to 20 kHz, +0.25 dB / -0.5 dB
Impedance8 kΩ (balanced)
Phantom Power+48 V DC (7 mA per input)
Connectivity
ConnectivityGigabit Ethernet, RS-232, GPIO
Input Voltage100–240 V AC, 50/60 Hz (internal universal power supply)
Inputs12 mic/line inputs with AEC
Outputs8 mic/line outputs
ProtocolsSIP VoIP, FXO telephony
Power
Power Consumption< 35 W
Physical
Operating Temperature0 to 40 °C
Weight3.63 kg
Compliance
CertificationsTAA, FCC Part 15B, FCC Part 68, Industry Canada CS-03, CE, UL/C-UL, RCM, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp TesiraFORTÉ AVB VT Audio DSP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Biamp TesiraFORTÉ AVB VT?
It is a conferencing audio DSP that combines SIP VoIP and FXO telephony with 12 AEC-enabled mic/line inputs, 8 mic/line outputs and 128 × 128 AVB channels. It is built for conferencing, VoIP and telephony in hybrid communication environments.
Does it support SIP VoIP and analog telephony?
Yes. The manufacturer lists both SIP VoIP and standard FXO telephony on the TesiraFORTÉ AVB VT. It combines SIP VoIP with standard FXO telephony, which is useful for hybrid communication environments. FXO is the interface for analog phone lines.
Does it include echo cancellation?
Yes. Its 12 mic/line inputs use advanced acoustic echo cancellation (AEC) for clean, echo-free audio for remote participants. The AEC is applied to 12 inputs, so each mic/line input benefits from echo control.
Is it certified for Microsoft Teams?
The manufacturer's specifications for the TesiraFORTÉ AVB VT do not state Microsoft Teams certification. The TesiraFORTÉ AVB VT4 is the model that lists Teams certification. The listed certifications also include FCC Part 68 and Industry Canada CS-03 for telephony connections.
Can it be integrated with room control?
Yes. Gigabit Ethernet, RS-232 and GPIO ports allow integration with control systems, automation platforms and third-party devices. Its two-line OLED display with capacitive-touch navigation gives quick access to status and diagnostics.
Can I buy the TesiraFORTÉ AVB VT in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
