BiampMeeting Room SolutionsSKU TesiraFORTÉ AVB CI

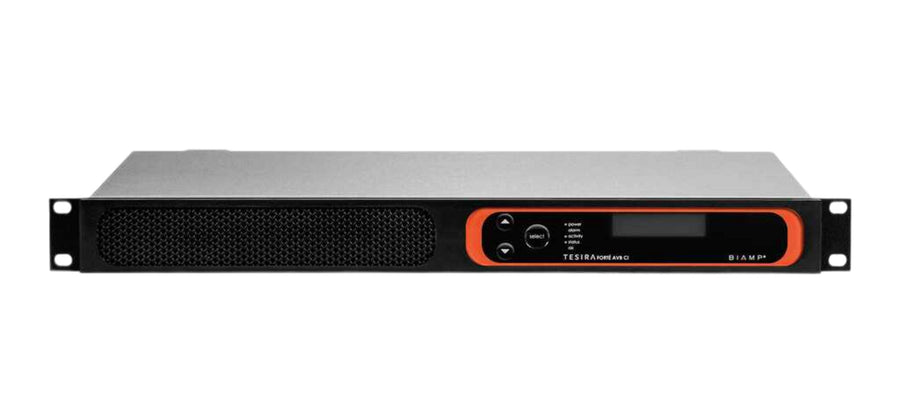

Biamp TesiraFORTÉ AVB CI Audio DSP
The Biamp TesiraFORTÉ AVB CI is a conferencing audio DSP with acoustic echo cancellation (AEC) on 12 mic/line inputs and AVB networking of up to 128 × 128 channels. It has 8 mic/line outputs and suits meeting rooms and enterprise communication systems. Procure.ae supplies the TesiraFORTÉ AVB CI across the UAE.
The TesiraFORTÉ AVB CI is a digital signal processor for conferencing audio. Its 12 mic/line inputs include built-in acoustic echo cancellation (AEC), which the manufacturer describes as echo-free audio for conferencing applications. It provides 8 mic/line outputs and supports 128 × 128 AVB channels for networked audio deployments. Input gain runs from 0 to 66 dB in 6 dB steps, and frequency response is 20 Hz to 20 kHz at +0.25 dB / -0.5 dB.
A Gigabit Ethernet port, RS-232 and GPIO connect the unit to control systems, automation platforms and room peripherals. The two-line OLED display with capacitive-touch navigation gives access to system status and diagnostics. Tesira software controls routing, mixing, equalization, filtering, dynamics and delay. The unit is TAA compliant and supported by Biamp Workplace Ready cloud-based monitoring.
Type
Audio DSP
Weight
3.63 kg
- AVB Networking
- AEC Inputs
- Zone Outputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
AVB Networking
Supports 128 × 128 channels of AVB for networked audio.
02
AEC Inputs
12 mic/line inputs with built-in acoustic echo cancellation.
03
Zone Outputs
8 mic/line outputs for voice lift, program audio and multi-zone designs.
04
Gigabit Ethernet
Network connectivity for configuration and communication.
05
External Control
RS-232 and GPIO ports for control systems and room peripherals.
06
OLED Touch Navigation
Two-line display with capacitive-touch navigation for system status.
07
Tesira Software Control
Routing, mixing, EQ, filtering, dynamics and delay.
08
Workplace Ready
Biamp Workplace Ready for secure cloud-based monitoring.
Specifications
18 specificationsGeneral
Key Features128 × 128 AVB channels, 12 AEC-enabled mic/line inputs, 8 mic/line outputs, Gigabit Ethernet, RS-232, GPIO, OLED touch navigation, Tesira software DSP, Biamp Workplace Ready, TAA compliant
ModelTesiraFORTÉ AVB CI
TypeAudio DSP
Display
DisplayTwo-line OLED with capacitive-touch navigation
Audio
Channels128 × 128 AVB channels
Dynamic Range> 108 dB (0 dB gain)
Frequency Response20 Hz to 20 kHz, +0.25 dB / -0.5 dB
Impedance8 kΩ (balanced)
Phantom Power+48 V DC (7 mA per input)
Connectivity
ConnectivityGigabit Ethernet, RS-232, GPIO
Input Voltage100–240 V AC, 50/60 Hz
Inputs12 mic/line inputs with AEC
Outputs8 mic/line outputs
Power
Power Consumption< 35 W
Physical
Operating Temperature0 to 40 °C
Weight3.63 kg
Compliance
CertificationsTAA, FCC Part 15B, CE, UL/C-UL, RCM, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp TesiraFORTÉ AVB CI Audio DSP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Biamp TesiraFORTÉ AVB CI?
It is a conferencing audio DSP with AEC on 12 mic/line inputs, 8 mic/line outputs and AVB networking of up to 128 × 128 channels, built for meeting spaces and enterprise communication systems.
Does it include echo cancellation?
Yes. The manufacturer states that all 12 mic/line inputs have acoustic echo cancellation (AEC) for echo-free conferencing audio. This AEC applies to all 12 inputs, so each microphone channel benefits from echo control.
Does it support AVB networking?
Yes. The manufacturer states support for 128 × 128 channels of AVB, which suits large or distributed audio installations. It supports 128 × 128 channels of AVB, enabling flexible, large-scale networked audio deployments.
Does it work with control systems?
Yes. Gigabit Ethernet, RS-232 and GPIO ports allow integration with control systems, automation platforms and room peripherals. The unit also has a two-line OLED display with capacitive-touch navigation for system status and diagnostics.
Is it compatible with Microsoft Teams?
The manufacturer's specifications for the TesiraFORTÉ AVB CI do not state Microsoft Teams certification. Its AEC and AVB features apply to conferencing and networked audio systems. Its listed certifications are TAA, FCC Part 15B, CE, UL/C-UL, RCM and RoHS.
