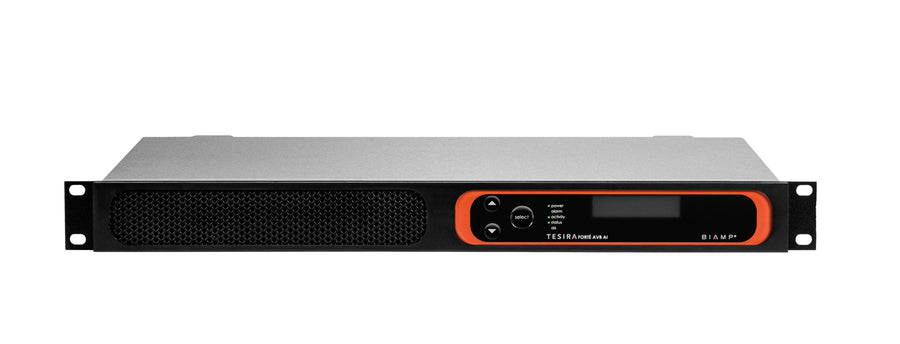

Biamp TesiraFORTÉ AVB AI Audio DSP
The Biamp TesiraFORTÉ AVB AI is an audio DSP with AVB networking of up to 128 × 128 channels, 12 mic/line inputs and 8 mic/line outputs. It suits multi-room and multi-zone conferencing and sound reinforcement systems, and it is TAA compliant. Procure.ae supplies the TesiraFORTÉ AVB AI across the UAE.
The TesiraFORTÉ AVB AI is a digital signal processor for networked audio. It supports up to 128 × 128 AVB channels and provides 12 mic/line inputs and 8 mic/line outputs. Input gain runs from 0 to 66 dB in 6 dB steps, and the maximum output is selectable from +24 dBu down to -31 dBu. Frequency response is 20 Hz to 20 kHz at +0.25 dB / -0.5 dB, and dynamic range exceeds 108 dB. Tesira software provides routing, mixing, equalization, filtering and delay control.
The Gigabit Ethernet port handles network configuration, while RS-232 and GPIO ports connect to control systems, automation platforms and room peripherals. A two-line OLED display with capacitive-touch navigation shows system status and diagnostics. Biamp Workplace Ready supports secure cloud-based monitoring. Compared with the TesiraFORTÉ AI, this model adds AVB networking of up to 128 × 128 channels, and both list 12 inputs and 8 outputs.
Type
Audio DSP
Weight
3.63 kg
- AVB Scalability
- 12 Inputs, 8 Outputs
- Gigabit Ethernet
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
AVB Scalability
Supports up to 128 × 128 AVB channels for large-format audio networks.
02
12 Inputs, 8 Outputs
12 mic/line inputs and 8 mic/line outputs for multi-zone rooms.
03
Gigabit Ethernet
Fast network configuration and reliable communication.
04
External Control
RS-232 and GPIO ports for control systems and room peripherals.
05
OLED Touch Navigation
Two-line display with capacitive-touch navigation for status and diagnostics.
06
Tesira Software Tuning
Routing, mixing, equalization, filtering and delay control.
07
Workplace Ready
Biamp Workplace Ready for secure cloud-based monitoring.
08
TAA Compliant
TAA compliant, with a 5-year warranty stated by the manufacturer.
Specifications
19 specificationsGeneral
Key Features128 × 128 AVB channels, 12 mic/line inputs, 8 mic/line outputs, Gigabit Ethernet, RS-232, GPIO, OLED touch navigation, Tesira software DSP, Biamp Workplace Ready, TAA compliant
ModelTesiraFORTÉ AVB AI
TypeAudio DSP
Display
DisplayTwo-line OLED with capacitive-touch navigation
Audio
Channels128 × 128 AVB channels
Dynamic Range> 108 dB (0 dB gain)
Frequency Response20 Hz to 20 kHz, +0.25 dB / -0.5 dB
Impedance8 kΩ (balanced)
Phantom Power+48 V DC (7 mA per input)
THD< 0.006% (0 dB gain, +4 dBu input)
Connectivity
ConnectivityGigabit Ethernet, RS-232, GPIO
Input Voltage100–240 V AC, 50/60 Hz
Inputs12 mic/line inputs
Outputs8 mic/line outputs
Power
Power Consumption< 35 W
Physical
Operating Temperature0 to 40 °C
Weight3.63 kg
Compliance
CertificationsTAA, FCC Part 15B, CE, UL/C-UL, RCM, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp TesiraFORTÉ AVB AI Audio DSP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Biamp TesiraFORTÉ AVB AI?
It is a networked audio DSP for conferencing, presentation and sound reinforcement systems. It supports up to 128 × 128 AVB channels, with 12 mic/line inputs and 8 mic/line outputs.
Does it support AVB networking?
Yes. The manufacturer states support for up to 128 × 128 AVB channels, which suits large-format audio networks across several rooms or zones. AVB networking suits the multi-room and multi-zone installations the manufacturer describes for this model.
How many inputs and outputs does it have?
It provides 12 mic/line inputs and 8 mic/line outputs. Input gain runs from 0 to 66 dB in 6 dB steps, and the maximum output is selectable from +24 dBu to -31 dBu.
How does it differ from the TesiraFORTÉ AI?
Both models list 12 inputs, 8 outputs and 24-bit converters. The AVB AI adds AVB networking of up to 128 × 128 channels, which the TesiraFORTÉ AI specifications do not list.
Can it be controlled by a third-party system?
Yes. RS-232 and GPIO ports allow integration with control systems, automation platforms and room peripherals, and Gigabit Ethernet supports network configuration. Biamp Workplace Ready also supports secure cloud-based monitoring and command capabilities.
