BiampMeeting Room SolutionsSKU TesiraFORTÉ AI

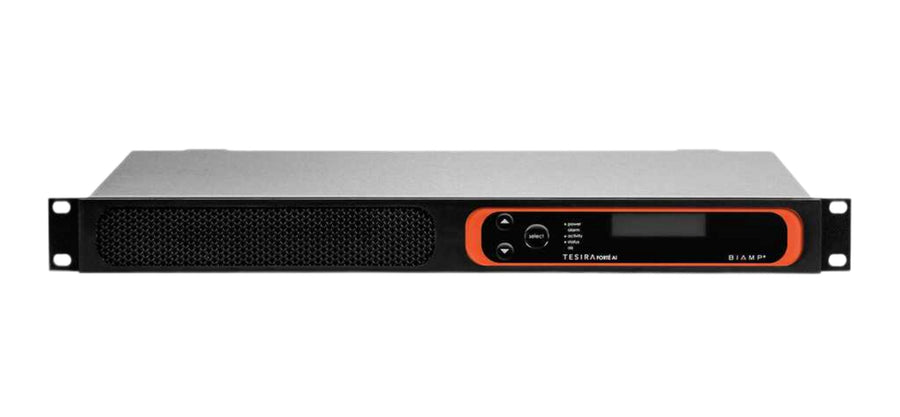

Biamp TesiraFORTÉ AI Audio DSP
The Biamp TesiraFORTÉ AI is a conferencing audio DSP with 12 mic/line inputs and 8 line outputs. It has 24-bit converters, Gigabit Ethernet control, RS-232 and GPIO ports, and Biamp Workplace Ready cloud monitoring. It suits conference rooms and sound systems, and Procure.ae supplies it across the UAE.
The TesiraFORTÉ AI is a digital signal processor for conferencing and sound systems. It provides 12 microphone or line inputs and 8 line outputs, with input gain from 0 to 66 dB in 6 dB steps. Its DSP architecture supports custom routing, mixing, equalization, filtering and delay through Tesira software. Frequency response runs from 20 Hz to 20 kHz at +0.25 dB / -0.5 dB, and dynamic range is above 108 dB at 0 dB gain. Phantom power is +48 V DC at 7 mA per input.
Gigabit Ethernet handles network configuration and control, while RS-232 and GPIO ports connect the unit to third-party control systems, automation platforms and room peripherals. A two-line OLED display with capacitive-touch navigation shows system status and gives quick adjustments. Biamp Workplace Ready supports secure cloud-based monitoring. Compared with the TesiraFORTÉ AVB AI, the manufacturer's specifications for this model do not list AVB networking channels.
Type
Audio DSP
Weight
3.63 kg
- 12 Inputs, 8 Outputs
- Flexible DSP Processing
- Gigabit Ethernet
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
12 Inputs, 8 Outputs
12 mic/line inputs and 8 line outputs for flexible system design.
02
Flexible DSP Processing
Routing, mixing, equalization, filtering and delay via Tesira software.
03
Gigabit Ethernet
Fast network configuration, control and communication.
04
External Control
RS-232 serial and GPIO ports for control systems and automation platforms.
05
OLED Touch Navigation
Two-line OLED display with capacitive-touch navigation.
06
Remote Monitoring
Biamp Workplace Ready supports secure cloud-based monitoring and commands.
07
24-bit Converters
24-bit A/D and D/A converters.
08
TAA Compliant
TAA compliant, with a 5-year warranty stated by the manufacturer.
Specifications
18 specificationsGeneral
Key Features12 mic/line inputs, 8 line outputs, 24-bit converters, Tesira software DSP, Gigabit Ethernet, RS-232, GPIO, Biamp Workplace Ready, TAA compliant
ModelTesiraFORTÉ AI
TypeAudio DSP
Display
DisplayTwo-line OLED with capacitive-touch navigation
Audio
Dynamic Range> 108 dB (0 dB gain)
Frequency Response20 Hz to 20 kHz, +0.25 dB / -0.5 dB
Impedance8 kΩ (balanced)
Phantom Power+48 V DC (7 mA per input)
THD< 0.006% (0 dB gain, +4 dBu input)
Connectivity
ConnectivityGigabit Ethernet, RS-232, GPIO
Input Voltage100–240 V AC, 50/60 Hz
Inputs12 mic/line inputs
Outputs8 line outputs
Power
Power Consumption< 35 W
Physical
Operating Temperature0 to 40 °C
Weight3.63 kg
Compliance
CertificationsTAA, FCC Part 15B, CE, UL/C-UL, RCM, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp TesiraFORTÉ AI Audio DSP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Biamp TesiraFORTÉ AI?
It is a conferencing audio DSP with 12 mic/line inputs, 8 line outputs and 24-bit converters. Its DSP handles routing, mixing, equalization, filtering and delay. It is designed for demanding audio installations that need pristine sound quality and scalable connectivity.
How many inputs and outputs does it have?
It provides 12 microphone or line inputs and 8 line outputs. Input gain runs from 0 to 66 dB in 6 dB steps, and the maximum output is selectable up to +24 dBu.
How is it configured?
It is configured with Tesira software over its Gigabit Ethernet port. The two-line OLED display with capacitive-touch navigation shows status and supports quick adjustments. Tesira software provides full control over routing, mixing, equalization, filtering and delay.
Does it integrate with control systems?
Yes. RS-232 serial and GPIO ports allow integration with third-party control systems, automation platforms and room devices. Its Gigabit Ethernet connection also supports network configuration, so the unit can be managed over the network.
Does it support Microsoft Teams?
The manufacturer's specifications for the TesiraFORTÉ AI do not state Microsoft Teams certification. Integration is through Gigabit Ethernet, RS-232 and GPIO control. Its listed certifications are TAA, FCC Part 15B, CE, UL/C-UL, RCM and RoHS.
