BiampMeeting Room SolutionsSKU TesiraCONNECT TC-5

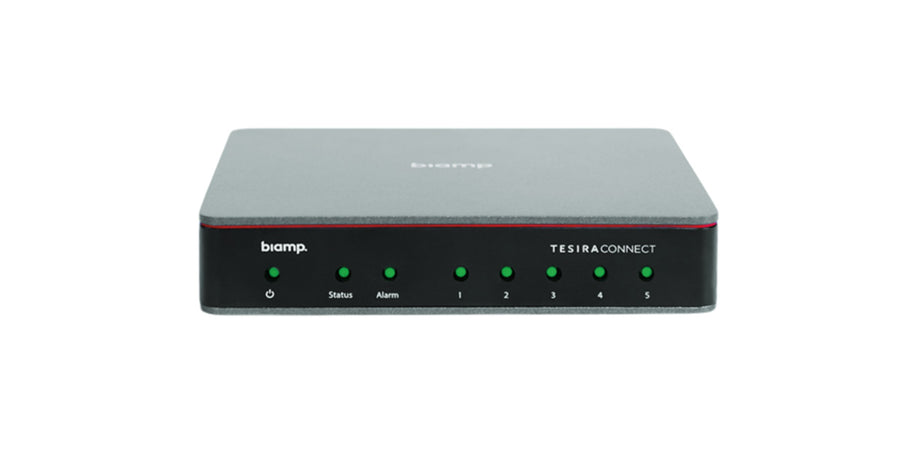

Biamp TesiraCONNECT PoE+ Expansion Device – TC-5 (920-00039-00002)
The Biamp TesiraCONNECT TC-5 (model code 920-00039-00002) is a five-port PoE+ expansion device that serves as the central connection point for all Biamp devices in a conference room. It has five 1 Gbps RJ-45 ports, four of them PoE+ (IEEE 802.3at Class 4, 30 W). Procure.ae, an authorised reseller, supplies the TesiraCONNECT TC-5 across the UAE.
The TesiraCONNECT TC-5 is a five-port expansion device that serves as the central connection point for all Biamp devices in a conference room. It has five 1 Gbps RJ-45 ports, and four of them supply PoE+ power (IEEE 802.3at Class 4, 30 watts). Power and media share a single category cable between devices. Up to four TC-5 units can be daisy-chained together, and fault reporting is supported in SageVue.
Use the TC-5 in conference rooms where several Biamp devices share one network. It is cooled by convection, powered by an external universal power supply, and rated for 0 to 40 °C. It works out of the box with Tesira conferencing products. Procure.ae supplies the TesiraCONNECT TC-5 across the UAE, with free training and support.
Type
Network Expansion Device
Weight
0.7 kg
- Five 1 Gbps ports
- PoE+ on four ports
- Daisy-chaining
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Five 1 Gbps ports
Five RJ-45 ports supporting 100 Mbps or 1 Gbps connections.
02
PoE+ on four ports
Four ports supply PoE+ power (IEEE 802.3at Class 4, 30 watts).
03
Daisy-chaining
Up to four TesiraCONNECT TC-5 devices can be daisy-chained together.
04
Out-of-the-box compatibility
Works out of the box with Tesira conferencing products.
05
SageVue monitoring
Fault reporting and device monitoring supported in SageVue.
06
Status LEDs
Front-panel LEDs show port connections, device status and faults.
07
External power supply
Powered by an external universal power supply.
Specifications
15 specificationsGeneral
CompatibilityTesira conferencing products
ControlsFront-panel LEDs; per-port link and activity LEDs
Key FeaturesFive 1 Gbps ports, four PoE+ ports, daisy-chain up to four units, SageVue monitoring, convection cooling
ModelTesiraCONNECT TC-5
TypeNetwork Expansion Device
Connectivity
Connectivity5 × 1 Gbps RJ-45 ports
Input Voltage100–240 V AC, 50/60 Hz
PoEPoE+ (IEEE 802.3at Class 4, 30 W) on 4 ports
PortsRJ-45 × 5 (4 with PoE+)
ProtocolsIEEE 802.1AS, 802.1Qav, 802.3ab
Power
Power ConsumptionUp to 132 W
Physical
Operating Temperature0 to 40 °C
Weight0.7 kg
Compliance
CertificationsFCC Part 15B, UL and C-UL, CE, RoHS, TAA compliant; UL 2043 suitable for air handling spaces
Warranty5 years
Downloads
Manufacturer documents for the Biamp TesiraCONNECT PoE+ Expansion Device – TC-5 (920-00039-00002) — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the TesiraCONNECT TC-5?
The TesiraCONNECT TC-5 is a five-port expansion device from Biamp. It serves as the central connection point for all Biamp devices in a conference room, with five 1 Gbps RJ-45 ports and four PoE+ ports (IEEE 802.3at Class 4, 30 W).
How many PoE+ ports does the TC-5 have?
The TC-5 has five RJ-45 ports, and four of them are PoE+ ports rated IEEE 802.3at Class 4, 30 W. Power and media share a single category cable between devices.
Can TC-5 units be daisy-chained?
Yes. Up to four TesiraCONNECT TC-5 devices can be daisy-chained together. Front-panel LEDs show port connections, device status and faults, and fault reporting is supported in SageVue. Port status is shown on per-port link and activity LEDs on the rear panel.
Is the TC-5 compatible with Tesira products?
Yes. The TC-5 is out-of-the-box compatible with Tesira conferencing products. It carries UL and C-UL listings, CE and RoHS marks, and TAA compliance under the US Trade Agreement Act. The unit is rated for 0 to 40 °C ambient operation.
