BiampMeeting Room SolutionsSKU Tesira EX-LOGIC

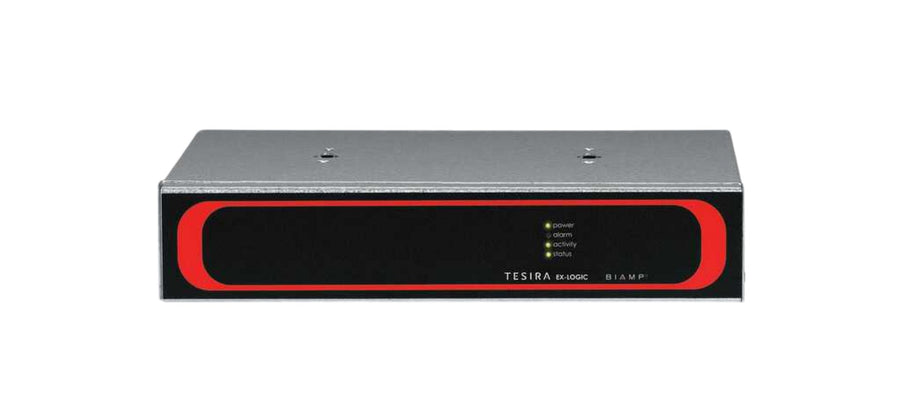

Biamp Tesira EX-LOGIC PoE Logic Expander – 920-00315-00001
The Biamp Tesira EX-LOGIC is a half-rack PoE logic expander with 16 logic connections for Tesira systems. Its inputs trigger presets, mutes, ducking and room combining, and its outputs drive relays or indicators. Procure.ae supplies the Tesira EX-LOGIC across the UAE.
The Tesira EX-LOGIC adds 16 logic connections that can be used as inputs or outputs, and four of them can serve as voltage control inputs. Logic inputs can control actions in the Tesira software, including presets, mutes, ducking, room combining and paging functions. Outputs can trigger status relays or indicators, or send logic input to other controllable equipment. A serial port outputs command strings. The unit is powered by PoE (IEEE 802.3at Class 1, 4 W).
The EX-LOGIC suits Tesira installations that need to connect switches, contact closures and indicators to the DSP over Ethernet. It connects to Tesira SERVER, SERVER-IO or TesiraFORTÉ units over Ethernet. Plug-in barrier strip connections and front-panel LEDs simplify wiring and status checks in a half-rack chassis. The unit weighs 1 kg.
Type
PoE Logic Expander
Weight
1 kg
- 16 logic connections
- Software-driven control
- Relay and indicator outputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
16 logic connections
Sixteen connections can be used as logic inputs or outputs, and four can serve as voltage control inputs.
02
Software-driven control
Inputs control presets, mutes, ducking, room combining and paging functions in the software.
03
Relay and indicator outputs
Outputs trigger status relays or indicators, or drive other controllable equipment.
04
Ethernet and PoE
Connects to Tesira SERVER, SERVER-IO or TesiraFORTÉ over Ethernet, powered by PoE (IEEE 802.3at Class 1, 4 W).
05
Serial command output
A serial port outputs command strings to other equipment.
06
Half-rack chassis
Plug-in barrier strip connections and front-panel LEDs in a half-rack chassis.
Specifications
12 specificationsGeneral
Controls16 logic connections; 4 voltage control inputs
Key Features16 logic connections, 4 voltage control inputs, PoE (802.3at Class 1), serial command output, half-rack chassis, TAA compliant
ModelTesira EX-LOGIC
TypePoE Logic Expander
Connectivity
ConnectivityEthernet (PoE), serial port, plug-in barrier strip
OutputsOpen collector, 40 V / 300 mA sink per output; 5 V / 10 mA LED driver
Power
Power Consumption4 W
Power SourcePoE (IEEE 802.3at Class 1, 4 W)
Physical
Rack UnitsHalf rack
Weight1 kg
Compliance
CertificationsFCC Part 15B, CE (with PoE insertion device), RCM, EAC, RoHS, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp Tesira EX-LOGIC PoE Logic Expander – 920-00315-00001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which Biamp systems does the Tesira EX-LOGIC connect to?
It connects to Tesira SERVER, SERVER-IO or TesiraFORTÉ units over Ethernet. It is designed to expand the logic control of those systems. Its 16 logic connections add inputs and outputs for presets, mutes and relays at the connected system.
Does the Tesira EX-LOGIC need a separate power supply?
No. It is powered by PoE (IEEE 802.3at Class 1, 4 W), so it draws power from the Ethernet connection. The manufacturer notes that its CE marking requires a PoE insertion device.
What can the logic inputs control?
Inputs can control presets, mutes, ducking, room combining and paging functions in the Tesira software. Outputs can trigger status relays, indicators or other controllable equipment. The four voltage control inputs and the open collector outputs support relays and indicators, with 40 V and 300 mA sink per output.
