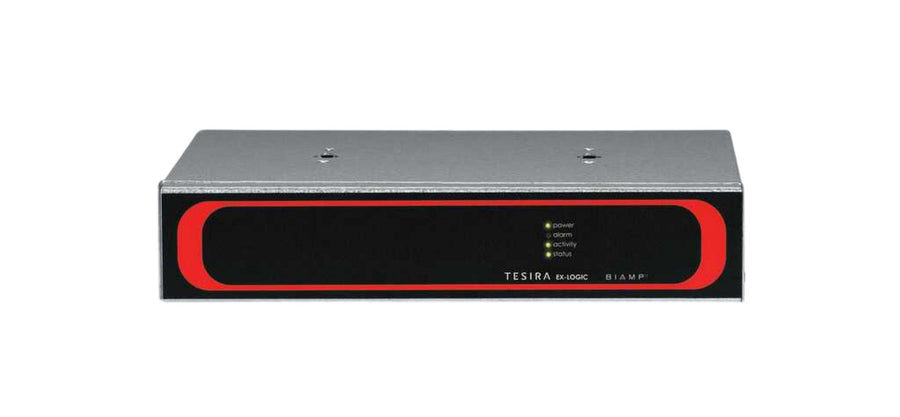

Biamp Tesira EX-LOGIC PoE Logic Expander – 920-00315-00001

The Biamp Tesira EX-LOGIC is a half-rack PoE logic expander with 16 logic connections for Tesira systems. Its inputs trigger presets, mutes, ducking and room combining, and its outputs drive relays or indicators. Procure.ae supplies the Tesira EX-LOGIC across the UAE.

The Tesira EX-LOGIC adds 16 logic connections that can be used as inputs or outputs, and four of them can serve as voltage control inputs. Logic inputs can control actions in the Tesira software, including presets, mutes, ducking, room combining and paging functions. Outputs can trigger status relays or indicators, or send logic input to other controllable equipment. A serial port outputs command strings. The unit is powered by PoE (IEEE 802.3at Class 1, 4 W).

The EX-LOGIC suits Tesira installations that need to connect switches, contact closures and indicators to the DSP over Ethernet. It connects to Tesira SERVER, SERVER-IO or TesiraFORTÉ units over Ethernet. Plug-in barrier strip connections and front-panel LEDs simplify wiring and status checks in a half-rack chassis. The unit weighs 1 kg.
