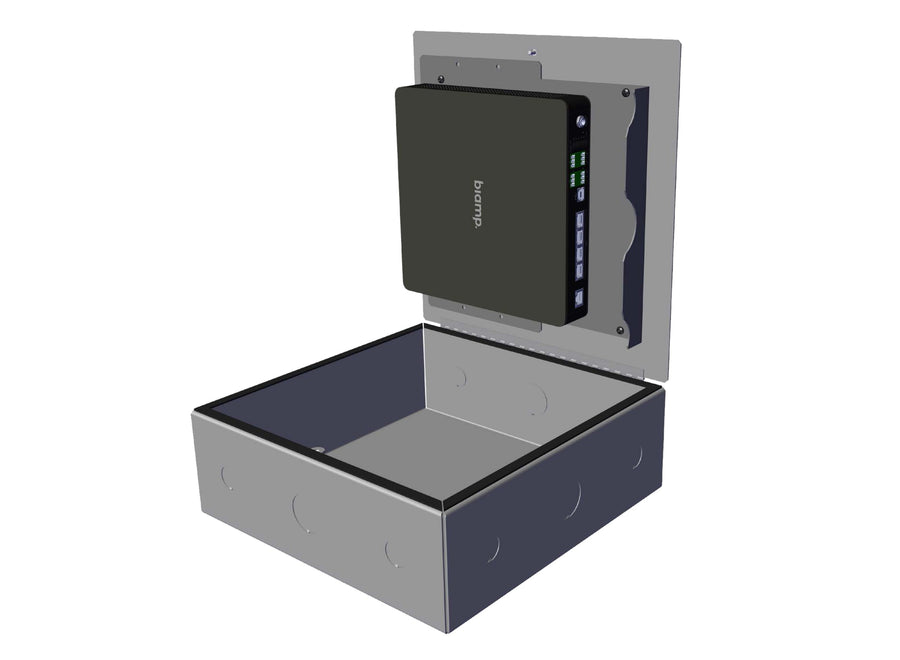

BiampBiamp Plenum Box 12 x 12 – 910-00005
The Biamp Plenum Box 12 x 12 (910-00005) is a 12-inch x 12-inch plenum-rated enclosure for installing Biamp conferencing devices in ceilings and walls. It is UL2043 compliant, has nine hole locations for wiring and weighs 4.5 kg, with a 5-year warranty. Procure.ae supplies it in the UAE, with delivery and installation across the UAE and MEA.
The plenum box is a 12-inch x 12-inch, fire-resistant enclosure used to install Biamp devices in plenum spaces. The manufacturer states it is UL2043 compliant and meets Chicago Building Code Chapter 14E-3 requirements. It offers nine hole locations for wiring flexibility, a thumb screw lock for cramped spaces and laser-edged knockouts. Internal mounting holes are provided for all Biamp conferencing solutions. The manufacturer's specifications do not state the box depth. Procure.ae (Procure FZE) supplies businesses, schools and government across the UAE and the wider Middle East & Africa (MEA), with delivery and installation across the UAE and MEA.
Use the plenum box in ceilings and walls where a Biamp conferencing device needs a plenum-rated enclosure, such as offices, meeting rooms, classrooms and government buildings. Check the UL2043 and CCEA Chicago Plenum Compliant certifications against the project's building code before specifying it. The box weighs 4.5 kg (10 lb), which matters when it is fixed to a ceiling or wall during installation.
- Plenum-rated enclosure
- Nine hole locations
- Thumb screw lock
Key features
Specifications
10 specificationsDownloads
Manufacturer documents for the Biamp Plenum Box 12 x 12 – 910-00005 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
