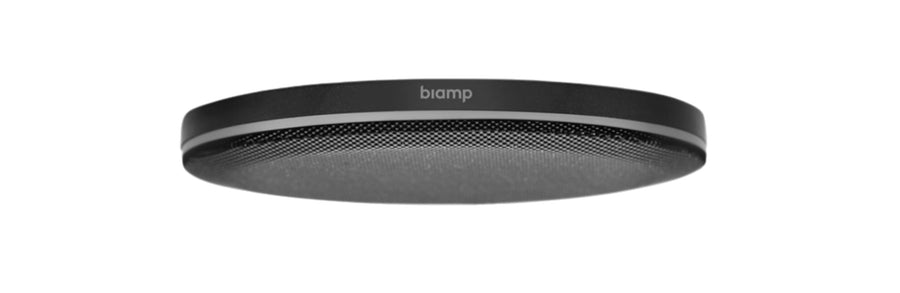

Biamp Parlé TCM-XA Ceiling Conferencing Microphone – 920-00499-20000

The Biamp Parlé TCM-XA is a low-profile ceiling conferencing microphone for meeting rooms and training spaces. It uses Beamtracking across four 90° zones for 360° pickup, and it is powered over Ethernet (PoE, IEEE 802.3at Class 3). Procure.ae, an authorised reseller, supplies it across the UAE.

The TCM-XA captures voices across a full 360° area with four 90° Beamtracking zones. It mixes active talkers automatically, so lobe aiming and room mapping are not required. A single CAT5 cable connects the microphone to its network box, which includes onboard DSP and uses one AEC channel per microphone. The network box also contains a 2-channel PoE+ amplifier that delivers up to 40 W at 4 Ω or 30 W at 8 Ω per channel, with selectable power modes and built-in limiting.

The microphone is designed for Biamp Tesira systems and is certified for Microsoft Teams and Zoom, and Cisco Verified. It has three RJ-45 ports, with one link to the network switch, one to the microphone and one for an additional TCM-XEX expansion microphone, allowing up to two microphones per network box. Its 150 mm (5.90-inch) low-profile body suits modern ceilings, and it is UL 2043 plenum rated for installation in air-handling spaces.
