Biamp Parlé TCM-XA Ceiling Conferencing Microphone – 920-00499-20000

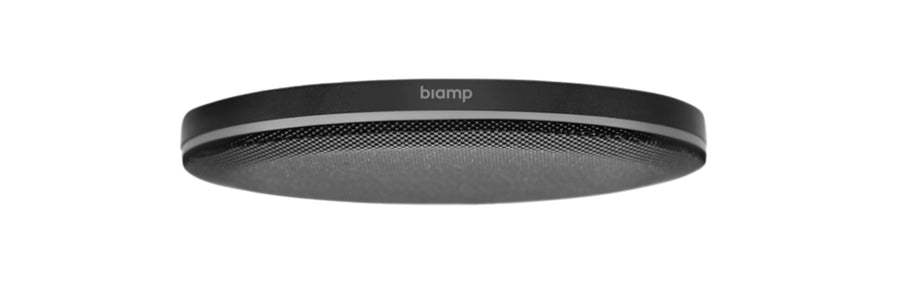

The Biamp Parlé TCM-XA is a low-profile ceiling conferencing microphone for meeting rooms and training spaces. It uses Beamtracking across four 90° zones for 360° pickup, and it is powered over Ethernet (PoE, IEEE 802.3at Class 3). Procure.ae, an authorised reseller, supplies it across the UAE.
The TCM-XA captures voices across a full 360° area with four 90° Beamtracking zones. It mixes active talkers automatically, so lobe aiming and room mapping are not required. A single CAT5 cable connects the microphone to its network box, which includes onboard DSP and uses one AEC channel per microphone. The network box also contains a 2-channel PoE+ amplifier that delivers up to 40 W at 4 Ω or 30 W at 8 Ω per channel, with selectable power modes and built-in limiting.
The microphone is designed for Biamp Tesira systems and is certified for Microsoft Teams and Zoom, and Cisco Verified. It has three RJ-45 ports, with one link to the network switch, one to the microphone and one for an additional TCM-XEX expansion microphone, allowing up to two microphones per network box. Its 150 mm (5.90-inch) low-profile body suits modern ceilings, and it is UL 2043 plenum rated for installation in air-handling spaces.
Key features
Specifications
| Compatibility | Biamp Tesira; Microsoft Teams; Zoom; Cisco |
| Key Features | Beamtracking, 360° pickup, auto-mixing, onboard DSP, 2-channel PoE+ amplifier, single CAT5 cable, expansion microphone support, LED mute indicator |
| Model | Parlé TCM-XA |
| Type | Ceiling Conferencing Microphone |
| Polar Pattern | Beamtracking, four 90° zones (360° coverage) |
| Power Output | 2-channel amplifier, 40 W at 4 Ω or 30 W at 8 Ω per channel |
| PoE | IEEE 802.3at Class 3 (15.4 W) |
| Ports | RJ-45 × 3 |
| Form Factor | Low-profile ceiling, 150 mm (5.90 in) |
| Operating Temperature | 0 to 40 °C |
| Weight | 680 g (1.5 lbs) |
| Certifications | TAA compliant; UL 2043 plenum rated; UL listed; CE marked; RoHS compliant |
| Warranty | 5 years |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
