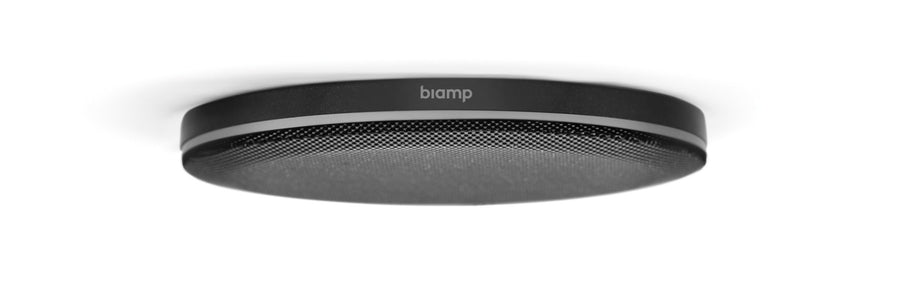

Biamp Parlé DCM-XEX Expansion Ceiling Microphone – 920-10117-10000
The Biamp Parlé DCM-XEX is an expansion Beamtracking ceiling microphone for Devio UCX systems. It pairs with a DCM-X or DCM-XA host, uses one AEC channel per microphone and covers a full 360° with four 90° zones. Procure.ae supplies the Biamp Parlé DCM-XEX across the UAE.
The DCM-XEX uses Beamtracking with four 90° zones to capture voices across a full 360° area, and it mixes active talkers automatically without manual lobe aiming. It uses only one AEC channel per microphone, even when daisy-chaining a TCM-XEX. Its low-profile, 5.90-inch (150 mm) ceiling design delivers discreet, surface-mounted installation. An LED mute status indicator shows the microphone state during meetings.
The DCM-XEX is an expansion microphone, not a standalone device. It pairs with a DCM-X or DCM-XA host and connects to the host's network box through a single CAT5 connection. The DCM-XEX is certified for Microsoft Teams, UL 2043 plenum rated and TAA compliant, which suits government and enterprise projects. The manufacturer lists a maximum distance of 33 feet (10 meters) between the DCM-XEX and its DSP host device.
Type
Expansion Ceiling Microphone
Weight
340 g
- Expansion microphone
- Beamtracking pickup
- Single CAT5 connection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Expansion microphone
Works with a DCM-X or DCM-XA host and is not a standalone device.
02
Beamtracking pickup
Four 90° zones capture voices across a full 360° area without lobe aiming.
03
Single CAT5 connection
Links directly to the host microphone's network box for clean, efficient wiring.
04
One AEC channel
Uses one AEC channel per microphone, even when daisy-chaining a TCM-XEX.
05
Low-profile ceiling design
The 5.90-inch (150 mm) design delivers discreet, surface-mounted installation.
06
LED mute indicator
An LED mute status indicator shows the microphone state during meetings.
07
Microsoft Teams certified
Certified for Microsoft Teams for reliable performance in collaboration environments.
08
UL 2043 plenum rated
UL 2043 plenum rated, CE marked, UL listed, RoHS compliant and TAA compliant, with a five-year warranty.
Specifications
12 specificationsGeneral
ApplicationExpanding Devio UCX meeting rooms
CompatibilityDevio UCX; expansion for DCM-X and DCM-XA
Key FeaturesBeamtracking, four 90° zones (360° pickup), single CAT5 connection, LED mute indicator, UL 2043 plenum rated, Microsoft Teams certified, TAA compliant
ModelParlé DCM-XEX
TypeExpansion Ceiling Microphone
Connectivity
ConnectivitySingle CAT5 connection, up to 10 m (33 ft) from DSP host device
Power
Power SourceCustom/proprietary, supplied by host network box
Physical
MountingSurface-mount ceiling, UL 2043 plenum rated
Operating Temperature0 to 40 °C
Weight340 g
Compliance
CertificationsFCC Part 15B, CE, UL and C-UL listed, RoHS, UL 2043, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp Parlé DCM-XEX Expansion Ceiling Microphone – 920-10117-10000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Parlé DCM-XEX a standalone microphone?
No. The DCM-XEX is an expansion Beamtracking microphone that works only when paired with a DCM-X or DCM-XA host. It connects to the host's network box over a single CAT5 connection.
Is the DCM-XEX compatible with Microsoft Teams?
Yes. The DCM-XEX is certified for Microsoft Teams. It is built for Devio UCX systems and works only with a DCM-X or DCM-XA host, so confirm the host and room system before ordering. The DCM-XEX also carries UL 2043 plenum rating and TAA compliance.
How far can the DCM-XEX be from its host device?
The manufacturer's specifications state a maximum of 33 feet (10 meters) between the DCM-XEX and its DSP host device. Plan cable runs from the host network box within that distance.
Can the DCM-XEX be installed in a plenum ceiling?
Yes. The DCM-XEX is UL 2043 plenum rated and CE marked, with a low-profile 5.90-inch (150 mm) ceiling design. It is surface-mounted and connects with a single CAT5 cable. The manufacturer's specifications state that it is suitable for use in air-handling spaces.
What is the operating temperature range of the DCM-XEX?
The DCM-XEX operates in ambient temperatures from 0 to 40 °C (32 to 104 °F), according to the manufacturer's specifications. Its UL 2043 evaluation covers use in air-handling spaces. Check the range against your room conditions, such as a ceiling void, before installation.
