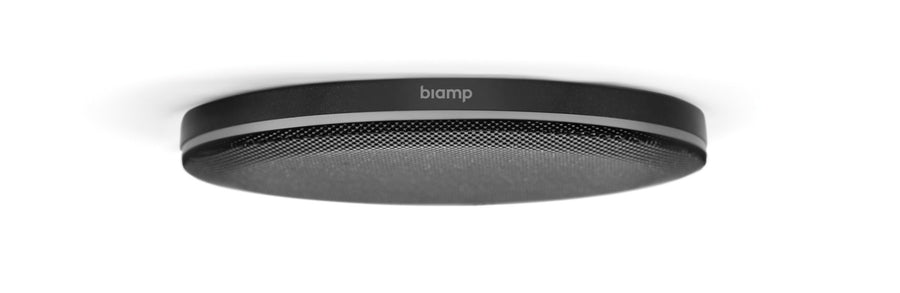

Biamp Parlé DCM-XEX Expansion Ceiling Microphone – 920-10117-10000

The Biamp Parlé DCM-XEX is an expansion Beamtracking ceiling microphone for Devio UCX systems. It pairs with a DCM-X or DCM-XA host, uses one AEC channel per microphone and covers a full 360° with four 90° zones. Procure.ae supplies the Biamp Parlé DCM-XEX across the UAE.

The DCM-XEX uses Beamtracking with four 90° zones to capture voices across a full 360° area, and it mixes active talkers automatically without manual lobe aiming. It uses only one AEC channel per microphone, even when daisy-chaining a TCM-XEX. Its low-profile, 5.90-inch (150 mm) ceiling design delivers discreet, surface-mounted installation. An LED mute status indicator shows the microphone state during meetings.

The DCM-XEX is an expansion microphone, not a standalone device. It pairs with a DCM-X or DCM-XA host and connects to the host's network box through a single CAT5 connection. The DCM-XEX is certified for Microsoft Teams, UL 2043 plenum rated and TAA compliant, which suits government and enterprise projects. The manufacturer lists a maximum distance of 33 feet (10 meters) between the DCM-XEX and its DSP host device.

Type

Expansion Ceiling Microphone

Weight

340 g

Key features

Expansion microphone

Works with a DCM-X or DCM-XA host and is not a standalone device.

Beamtracking pickup

Four 90° zones capture voices across a full 360° area without lobe aiming.

Single CAT5 connection

Links directly to the host microphone's network box for clean, efficient wiring.

One AEC channel

Uses one AEC channel per microphone, even when daisy-chaining a TCM-XEX.

Low-profile ceiling design

The 5.90-inch (150 mm) design delivers discreet, surface-mounted installation.

LED mute indicator

An LED mute status indicator shows the microphone state during meetings.

Microsoft Teams certified

Certified for Microsoft Teams for reliable performance in collaboration environments.

UL 2043 plenum rated

UL 2043 plenum rated, CE marked, UL listed, RoHS compliant and TAA compliant, with a five-year warranty.

Specifications

General
Application	Expanding Devio UCX meeting rooms
Compatibility	Devio UCX; expansion for DCM-X and DCM-XA
Key Features	Beamtracking, four 90° zones (360° pickup), single CAT5 connection, LED mute indicator, UL 2043 plenum rated, Microsoft Teams certified, TAA compliant
Model	Parlé DCM-XEX
Type	Expansion Ceiling Microphone

Connectivity
Connectivity	Single CAT5 connection, up to 10 m (33 ft) from DSP host device

Power
Power Source	Custom/proprietary, supplied by host network box

Physical
Mounting	Surface-mount ceiling, UL 2043 plenum rated
Operating Temperature	0 to 40 °C
Weight	340 g

Compliance
Certifications	FCC Part 15B, CE, UL and C-UL listed, RoHS, UL 2043, TAA compliant
Warranty	5 years
