BiampMeeting Room SolutionsSKU Parlé DCM-X

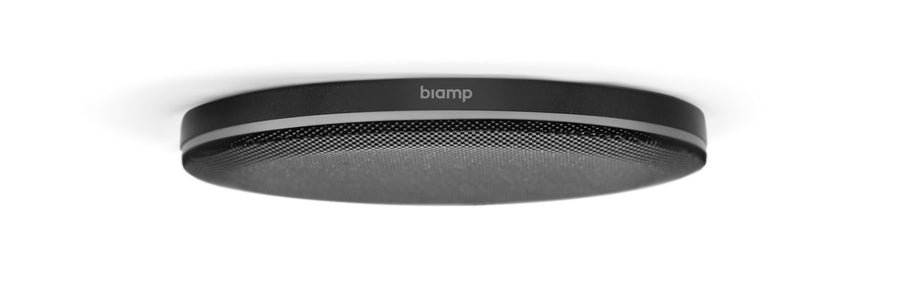

Biamp Parlé Beamtracking Ceiling Microphone, Black – Parlé DCM-X
The Biamp Parlé DCM-X in black is a Beamtracking ceiling microphone built for Devio UCX systems. It uses four 90-degree zones for 360-degree pickup over a 16-element digital array, and connects over a single CAT5 cable powered by PoE at 15.4 W. Procure.ae supplies the Biamp Parlé DCM-X in the UAE.
The DCM-X uses Beamtracking technology with four 90-degree zones for full 360-degree pickup, and it mixes active talkers automatically without manual aiming or room mapping. The 16-element digital array reaches a frequency response of 150 Hz to 16 kHz within ±3 dB, with a dynamic range of 92 dB and an SPL of 109 dB at under 1% THD. An LED mute indicator gives visual feedback during calls.
The DCM-X is designed for Devio UCX meeting-room systems and is Microsoft Teams Certified. Its network box connects to the switch, the microphone and an optional DCM-XEX expansion microphone. The system uses one AEC channel per microphone and suits ceiling heights up to 10 ft (about 3 m). The DCM-X is UL 2043 evaluated for air handling spaces, TAA compliant, and backed by a five-year warranty.
Type
Ceiling Microphone
Weight
0.625 kg
- Beamtracking pickup
- Automatic talker mixing
- 16-element digital array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Beamtracking pickup
Four 90-degree zones give full 360-degree coverage.
02
Automatic talker mixing
Mixes active talkers without manual aiming or room mapping.
03
16-element digital array
Frequency response of 150 Hz to 16 kHz, ±3 dB.
04
Single CAT5 connection
One cable to the network box delivers audio, control and DSP processing.
05
DCM-XEX expansion
Extra RJ-45 port supports one expansion microphone, up to two per network box.
06
Low-profile design
150 mm (5.90-inch) ceiling-mounted profile for standard-height rooms.
07
Microsoft Teams Certified
Certified for Microsoft Teams, with UL 2043, CE, UL and RoHS compliance.
08
Five-year warranty
Backed by a comprehensive five-year warranty and TAA compliant.
Specifications
19 specificationsGeneral
CompatibilityDevio UCX, Microsoft Teams certified
Key FeaturesBeamtracking, four 90-degree zones, 16-element digital array, single CAT5 connection, DCM-XEX expansion, Microsoft Teams certified, TAA compliant
ModelParlé DCM-X
TypeCeiling Microphone
Audio
Coverage PatternFour 90-degree zones (360 degrees)
Dynamic Range92 dB (A-weighted)
Frequency Response150 Hz to 16 kHz, ±3 dB
Max SPL109 dB
Microphone16-element digital array, active beamformed
Signal-to-Noise Ratio> 76 dB
Connectivity
ConnectivityThree RJ-45: switch, microphone, DCM-XEX expansion
PoEIEEE 802.3at Class 3, 15.4 W
Power
Power SourcePoE (IEEE 802.3at Class 3, 15.4 W)
Physical
ColorBlack
MountingCeiling mount, 150 mm profile, ceiling heights up to 3 m
Operating Temperature0 to 40 °C
Weight0.625 kg
Compliance
CertificationsUL 2043, FCC Part 15B, CE, UL and C-UL, RoHS, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp Parlé Beamtracking Ceiling Microphone, Black – Parlé DCM-X — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Parlé DCM-X compatible with Devio UCX?
Yes. The DCM-X is built specifically for Devio UCX systems and connects through its included network box, which provides onboard DSP processing. Its single CAT5 connection carries audio, control and DSP processing, so the microphone works as one part of the Devio UCX system.
What ceiling height does the DCM-X suit?
It suits meeting spaces with ceiling heights up to 10 ft (about 3 m). The DCM-X has a low-profile 150 mm (5.90-inch) ceiling-mounted design. The microphone is low profile, so it blends unobtrusively into the ceiling.
Can a second microphone be added to a DCM-X?
Yes. An additional RJ-45 port connects a DCM-XEX expansion microphone, supporting up to two microphones per network box. Each microphone uses one AEC channel in the network box. The DCM-XEX connects to the network box by RJ-45, so the expansion stays within the same network box.
Does the DCM-X work with Microsoft Teams?
Yes. The manufacturer states the DCM-X is Microsoft Teams Certified and compliant with UL 2043, CE, UL and RoHS. It also carries a five-year warranty and is TAA compliant. The microphone is also UL 2043 evaluated for air handling spaces.
How is the DCM-X powered?
It is powered by PoE under IEEE 802.3at Class 3, drawing 15.4 W. The network box connects to the switch over RJ-45 and links the microphone with a single CAT5 connection.
Can I buy the Parlé DCM-X in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
