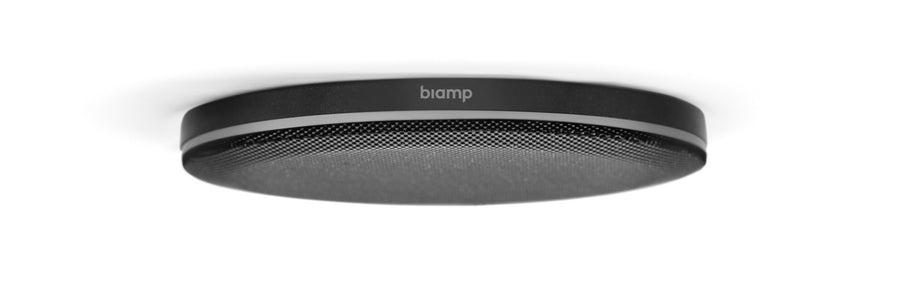

Biamp Parlé Beamtracking Ceiling Microphone, Black – Parlé DCM-X

The Biamp Parlé DCM-X in black is a Beamtracking ceiling microphone built for Devio UCX systems. It uses four 90-degree zones for 360-degree pickup over a 16-element digital array, and connects over a single CAT5 cable powered by PoE at 15.4 W. Procure.ae supplies the Biamp Parlé DCM-X in the UAE.

The DCM-X uses Beamtracking technology with four 90-degree zones for full 360-degree pickup, and it mixes active talkers automatically without manual aiming or room mapping. The 16-element digital array reaches a frequency response of 150 Hz to 16 kHz within ±3 dB, with a dynamic range of 92 dB and an SPL of 109 dB at under 1% THD. An LED mute indicator gives visual feedback during calls.

The DCM-X is designed for Devio UCX meeting-room systems and is Microsoft Teams Certified. Its network box connects to the switch, the microphone and an optional DCM-XEX expansion microphone. The system uses one AEC channel per microphone and suits ceiling heights up to 10 ft (about 3 m). The DCM-X is UL 2043 evaluated for air handling spaces, TAA compliant, and backed by a five-year warranty.

Type

Ceiling Microphone

Weight

0.625 kg

Key features

Beamtracking pickup

Four 90-degree zones give full 360-degree coverage.

Automatic talker mixing

Mixes active talkers without manual aiming or room mapping.

16-element digital array

Frequency response of 150 Hz to 16 kHz, ±3 dB.

Single CAT5 connection

One cable to the network box delivers audio, control and DSP processing.

DCM-XEX expansion

Extra RJ-45 port supports one expansion microphone, up to two per network box.

Low-profile design

150 mm (5.90-inch) ceiling-mounted profile for standard-height rooms.

Microsoft Teams Certified

Certified for Microsoft Teams, with UL 2043, CE, UL and RoHS compliance.

Five-year warranty

Backed by a comprehensive five-year warranty and TAA compliant.

Specifications

General
Compatibility	Devio UCX, Microsoft Teams certified
Key Features	Beamtracking, four 90-degree zones, 16-element digital array, single CAT5 connection, DCM-XEX expansion, Microsoft Teams certified, TAA compliant
Model	Parlé DCM-X
Type	Ceiling Microphone

Audio
Coverage Pattern	Four 90-degree zones (360 degrees)
Dynamic Range	92 dB (A-weighted)
Frequency Response	150 Hz to 16 kHz, ±3 dB
Max SPL	109 dB
Microphone	16-element digital array, active beamformed
Signal-to-Noise Ratio	> 76 dB

Connectivity
Connectivity	Three RJ-45: switch, microphone, DCM-XEX expansion
PoE	IEEE 802.3at Class 3, 15.4 W

Power
Power Source	PoE (IEEE 802.3at Class 3, 15.4 W)

Physical
Color	Black
Mounting	Ceiling mount, 150 mm profile, ceiling heights up to 3 m
Operating Temperature	0 to 40 °C
Weight	0.625 kg

Compliance
Certifications	UL 2043, FCC Part 15B, CE, UL and C-UL, RoHS, TAA compliant
Warranty	5 years
