BiampMeeting Room SolutionsSKU Impera Echo Plus 8DKW

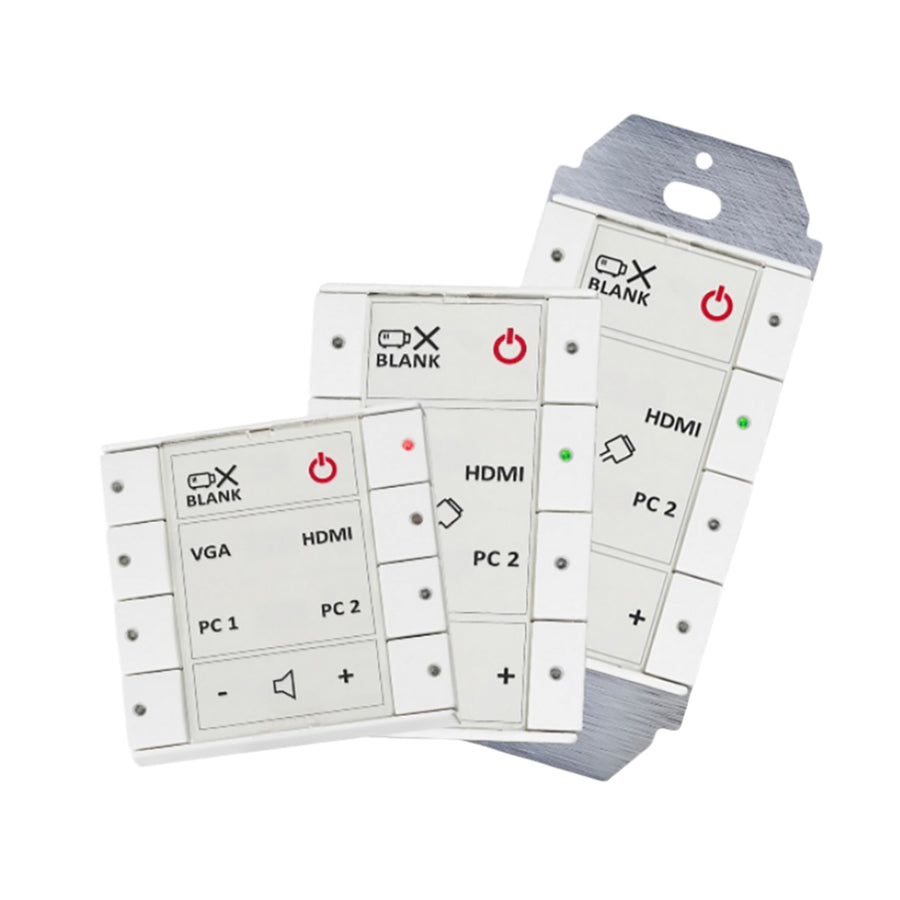

Biamp Impera Echo Plus 8DKW Room Control Keypad – 920-02256-20002
The Biamp Impera Echo Plus 8DKW is an 8-button room control keypad with an onboard controller and Ethernet control of up to two third-party devices. It adds two RS-232/IR ports, three GPIO ports and an expansion bus for larger systems. Procure.ae supplies it in the UAE.
The Echo Plus 8DKW is an 8-button keypad for presentation, learning and conference rooms. Its onboard controller removes the need for an external processor, and it controls up to two third-party devices over Ethernet. It also includes one bidirectional and one unidirectional RS-232/IR port, three GPIO ports and a Micro USB connection for configuration and maintenance.
Type
Room Control Keypad
- Ethernet control
- Onboard controller
- RS-232/IR and GPIO ports
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ethernet control
Controls up to two third-party devices over Ethernet.
02
Onboard controller
No external processor is required.
03
RS-232/IR and GPIO ports
One bidirectional and one unidirectional RS-232/IR port, plus three GPIO ports.
04
Expansion bus
Supports up to two additional keypads or port expanders.
Specifications
8 specificationsGeneral
Controls8 software-configurable buttons
Key FeaturesOnboard controller, Ethernet control of 2 third-party devices, expansion bus for up to 2 devices, email maintenance alerts
ModelImpera Echo Plus 8DKW
TypeRoom Control Keypad
Connectivity
EthernetControls up to 2 third-party devices
PortsRS-232/IR × 2, GPIO × 3, Micro USB × 1
Physical
ColorWhite
Compliance
Warranty5 years
Downloads
Manufacturer documents for the Biamp Impera Echo Plus 8DKW Room Control Keypad – 920-02256-20002 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the Echo Plus 8DKW control devices over Ethernet?
Yes. It controls up to two third-party devices over Ethernet, in addition to its RS-232/IR and GPIO ports. Ethernet control suits equipment that is reachable over the network rather than through a serial or IR connection.
Does the Echo Plus 8DKW need an external processor?
No. The keypad includes an onboard controller, so no external processor is required. Its eight buttons are software-configurable, so button functions can be changed without replacing hardware, and it is configured through its Micro USB connection.
Can the Echo Plus 8DKW be expanded?
Yes. The expansion bus supports up to two additional keypads or port expanders, which suits larger systems. Extra keypads or port expanders connect to the main keypad, so a room that needs more buttons or ports can be extended in stages.
Can I buy the Impera Echo Plus 8DKW in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
