BiampMeeting Room SolutionsSKU Impera Echo 8USW

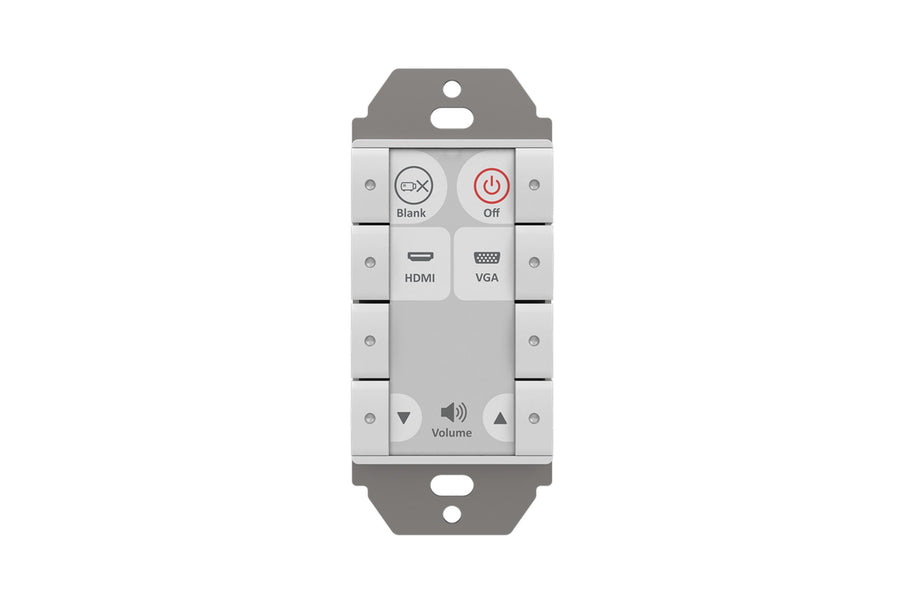

Biamp Impera Echo 8USW Room Control Keypad – 920-01885-20001
The Biamp Impera Echo 8USW is an 8-button white room control keypad with an onboard controller, so no external processor is required. It has one bidirectional and one unidirectional RS-232/IR port, three GPIO ports and an expansion bus for up to two more devices. Procure.ae supplies it in the UAE.
The Echo 8USW is an 8-button keypad with one bidirectional RS-232/IR port that provides feedback, one unidirectional RS-232/IR port and three GPIO ports for third-party control. Its onboard controller removes the need for an external processor. A Micro USB connection supports system configuration and maintenance, and email notifications report lamp and filter hours.
Type
Room Control Keypad
- 8 configurable buttons
- Onboard controller
- RS-232/IR and GPIO ports
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
8 configurable buttons
Eight software-configurable buttons for room control.
02
Onboard controller
No external processor is required.
03
RS-232/IR and GPIO ports
One bidirectional and one unidirectional RS-232/IR port, plus three GPIO ports.
04
Expansion bus
Supports up to two additional keypads or port expanders.
Specifications
7 specificationsGeneral
Controls8 software-configurable buttons
Key FeaturesOnboard controller, expansion bus for up to 2 devices, email maintenance alerts, Micro USB configuration
ModelImpera Echo 8USW
TypeRoom Control Keypad
Connectivity
PortsRS-232/IR × 2, GPIO × 3, Micro USB × 1
Physical
ColorWhite
Compliance
Warranty5 years
Downloads
Manufacturer documents for the Biamp Impera Echo 8USW Room Control Keypad – 920-01885-20001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Echo 8USW need an external processor?
No. The Echo 8USW has an onboard controller, so no external processor is needed. Its eight buttons are software-configurable and set up over the Micro USB connection, which is also used for maintenance.
Can the Echo 8USW control third-party equipment?
Yes. It has one bidirectional RS-232/IR port with feedback for third-party control, one unidirectional RS-232/IR port and three GPIO ports. The bidirectional port returns feedback from the connected device, which helps confirm that the equipment has responded.
Can the Echo 8USW be expanded?
Yes. The expansion bus supports up to two additional keypads or port expanders, which suits larger room systems. Extra keypads or port expanders connect to the main keypad, so a room that needs more buttons or ports can be extended in stages.
