BiampMeeting Room SolutionsSKU EasyConnect USB3-30-BC
Biamp EasyConnect USB 3.2 Active Cable 10 m – EasyConnect USB3-30-BC

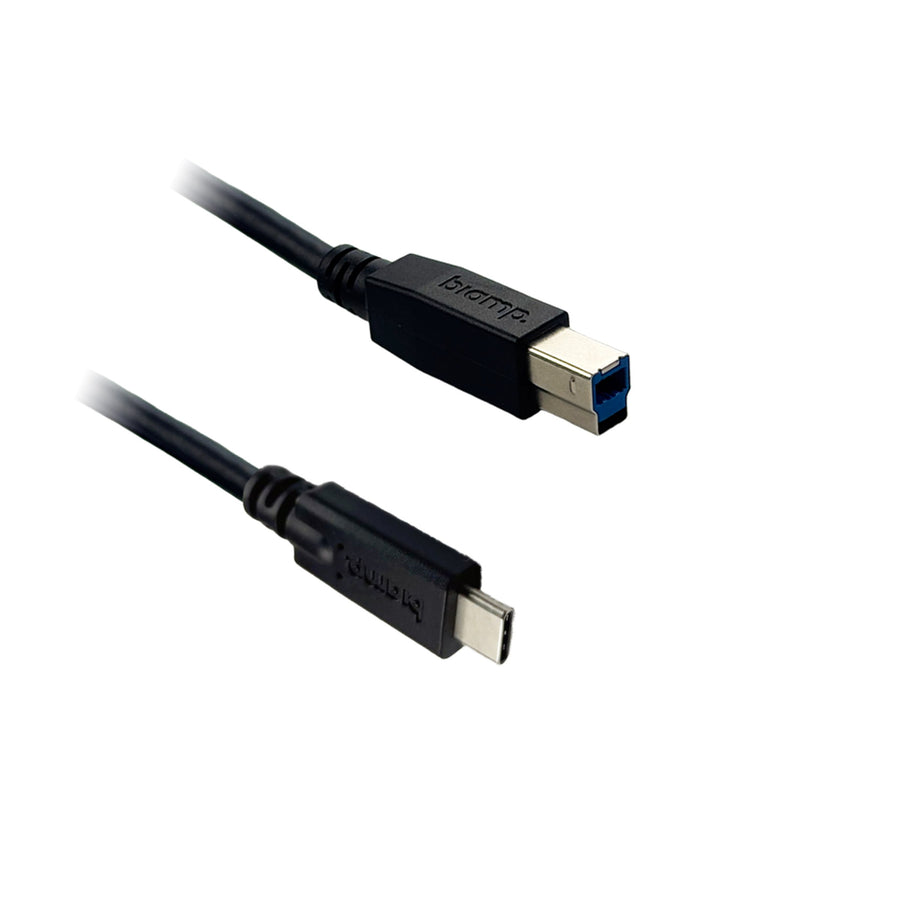

The Biamp EasyConnect USB3-30-BC is a 10 m (30-foot) active USB 3.2 Gen 1 cable with a Type-B connector at one end and a Type-C connector at the other. It transfers data at up to 5 Gbps over tinned copper and multi-mode optical fibre conductors. Procure.ae supplies it across the UAE for longer AV and conferencing cable runs.
The cable is listed as an active signal type, with a 10 m (30-foot) length and Type-B to Type-C connectors. Its conductors combine tinned copper with multi-mode optical fibres, and the wire gauge is 20, 24 and 28 AWG. The jacket is PVC, the shielding is double, using foil and braid, and the contacts are gold-plated. The manufacturer lists a VW-1 safety rating, RoHS and REACH compliance and a 3-year warranty.
Type
USB 3.2 Gen 1 Active Type-B to Type...
- USB 3.2 Gen 1 data
- Active signal
- Optical fibre conductors
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
USB 3.2 Gen 1 data
transfers at up to 5 Gbps between Type-B and Type-C ports.
02
Active signal
listed by the manufacturer as an active signal type cable.
03
Optical fibre conductors
combines tinned copper with multi-mode optical fibres.
04
Long cable run
a 10 m (30-foot) cable length for longer connections.
05
Safety and compliance
VW-1 safety rating, with RoHS and REACH compliance.
06
Three-year warranty
the manufacturer lists a 3-year warranty.
Specifications
13 specificationsGeneral
Key FeaturesActive signal, Multi-mode optical fibre conductors, Gold-plated contacts, 20 + 24 + 28 AWG wire gauge, Type-B to Type-C, 5 Gbps
ModelEasyConnect USB3-30-BC
TypeUSB 3.2 Gen 1 Active Type-B to Type-C Cable
Connectivity
Cable StandardUSB 3.2 Gen 1
ConductorTinned copper and multi-mode optical fibre
Connector TypeUSB Type-B to USB Type-C
Data Rate5 Gbps
Jacket MaterialPVC
ShieldingDouble shielded (foil + braid)
Physical
Length10 m (30 ft)
Compliance
CertificationsRoHS, REACH
Safety RatingVW-1
Warranty3 years
Downloads
Manufacturer documents for the Biamp EasyConnect USB 3.2 Active Cable 10 m – EasyConnect USB3-30-BC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the EasyConnect USB3-30-BC an active or passive cable?
It is an active cable. The manufacturer lists the signal type as active, and the conductors combine tinned copper with multi-mode optical fibres. The cable is 10 m (30 feet) long with Type-B and Type-C connectors, and it supports USB 3.2 Gen 1 data at up to 5 Gbps.
What is the maximum data rate for this cable?
The cable supports USB 3.2 Gen 1 at up to 5 Gbps, the speed formerly known as USB 3.0. The manufacturer lists a VW-1 safety rating and RoHS and REACH compliance. Confirm the port types on both devices before installation, because the connectors are Type-B at one end and Type-C at the other.
How does this model differ from the 15 m version?
The EasyConnect USB3-50-BC is the 15 m (50-foot) model in the same active Type-B to Type-C family. Both use multi-mode optical fibre conductors and are listed as active cables. Choose this 10 m model for shorter runs and the 15 m model where the connection needs more length.
