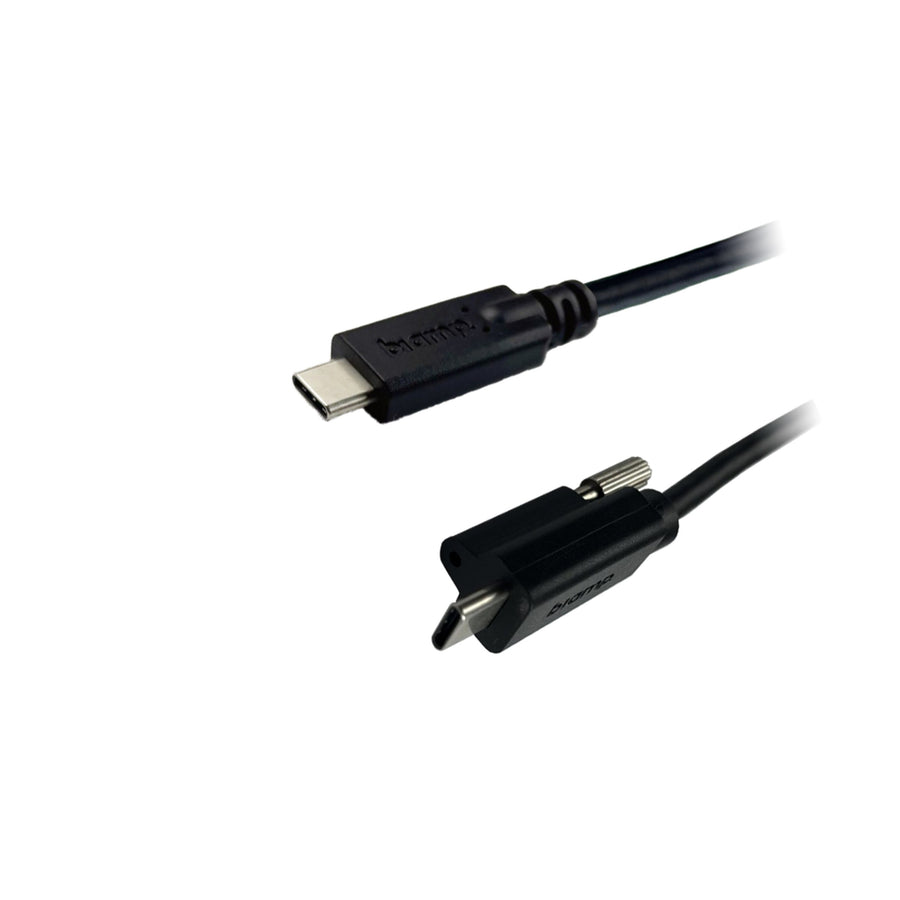

Biamp EasyConnect 6-Foot USB 3.2 Gen 1 Type-C to Type-C Cable – USB3-6-CC

The Biamp EasyConnect USB3-6-CC is a 2 m (6-foot) passive USB 3.2 Gen 1 cable with USB Type-C connectors at both ends. It transfers data at up to 5 Gbps, carries 4K at 60 Hz through DisplayPort alternate mode and handles up to 60 W power delivery. Procure.ae supplies it across the UAE as an authorised Biamp reseller.

The USB3-6-CC has tinned copper conductors (32 AWG) inside a PVC jacket with a 4.5 mm outer diameter. Foil and braid double shielding protects the signal, and the contacts are gold-plated. The cable supports USB 3.2 Gen 1 transfer at up to 5 Gbps and 3840 x 2160 (4K UHD) resolution at 60 Hz, with 4:4:4 chroma sampling and 8-bit color. Power delivery is rated at 60 W, depending on the USB-C port. Its safety rating is VW-1, and the manufacturer states RoHS and REACH compliance. Its alternate manufacturer code is 910-00211.

Compared with the 10 m USB3-30-CC, the USB3-6-CC is passive and 2 m (6 feet) long, with a 45 mm minimum static bend radius and a 100 N maximum tensile strength. It also carries DisplayPort 1.4 and HDMI through alternate mode, but at 4K 60 Hz rather than 30 Hz. Supported systems are Windows 8 and later, macOS 10.9 and later and Linux 3.x and later, with USB 3.0 support required. Use it for short USB-C links between a laptop and a display or conferencing device in a meeting room.
