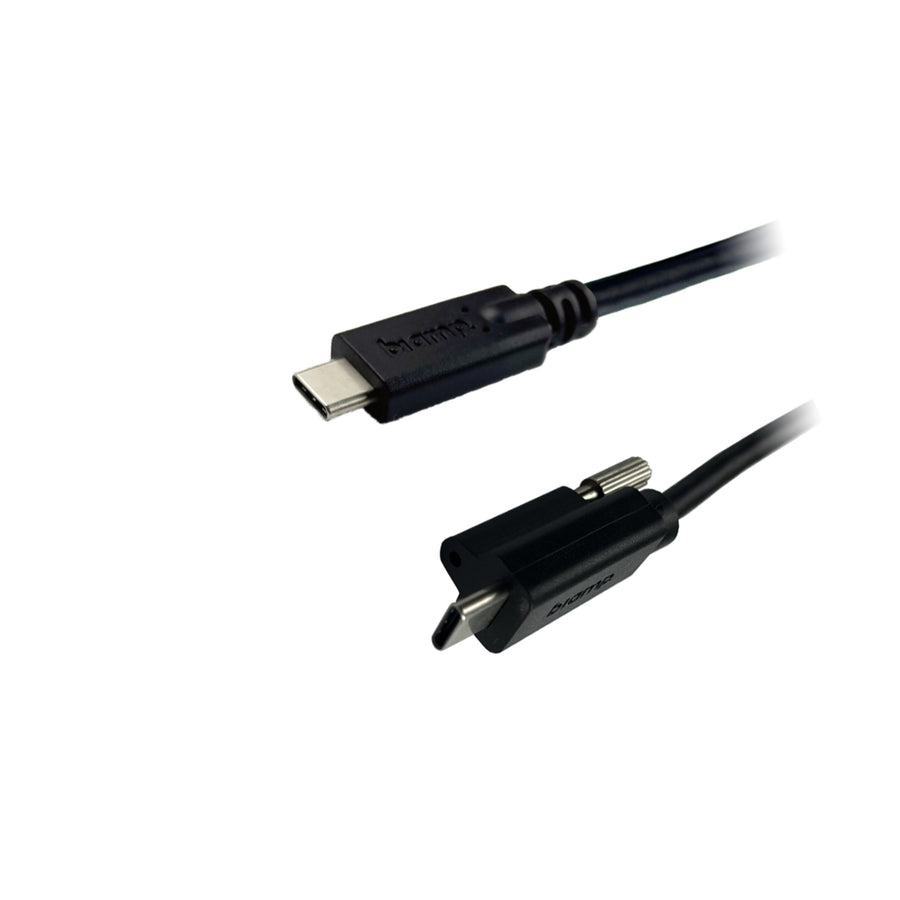

BiampBiamp EasyConnect 5 m USB 3.2 Gen 1 Type C to Type C Cable – USB3-15-CC
The Biamp EasyConnect USB3-15-CC is a 5 m (15-foot) USB Type C to Type C cable with data transfer speeds of up to 5 Gbps and support for 4K UHD at 60 Hz over DisplayPort Alt Mode. It suits USB-C laptop and display connections in video conferencing and AV setups. Procure.ae supplies it across the UAE.
The USB3-15-CC is a passive Type C to Type C cable with male connectors at both ends. It supports DisplayPort 1.4 through DisplayPort Alt Mode, with HDMI signalling available through the same alternate mode, and a maximum resolution of 3840 x 2160 (4K UHD) at 60 Hz with 4:4:4 chroma sampling. Data transfers at up to 5 Gbps. The cable has a 5 mm outer diameter, a 50 mm minimum static bend radius and a 100 N maximum tensile strength.
Choose this model for USB-C laptops and displays that need a 5 m run with DisplayPort Alt Mode video. It runs on Windows 8 and later, macOS 10.9 and later, and Linux 3.x and later, and USB 3.0 support is required. For older Type A or Type B ports, the manufacturer lists legacy support through separate Type C to A or Type C to B adapters. This part is listed under model code 910-00212 and carries a 3-year warranty.
- 4K UHD at 60 Hz
- DisplayPort 1.4 signalling
- USB 3.2 Gen 1 data
Key features
Specifications
18 specificationsDownloads
Manufacturer documents for the Biamp EasyConnect 5 m USB 3.2 Gen 1 Type C to Type C Cable – USB3-15-CC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
